FOR LAW ENFORCEMENT, FIRE, EMS, AND MILITARY ONLY.

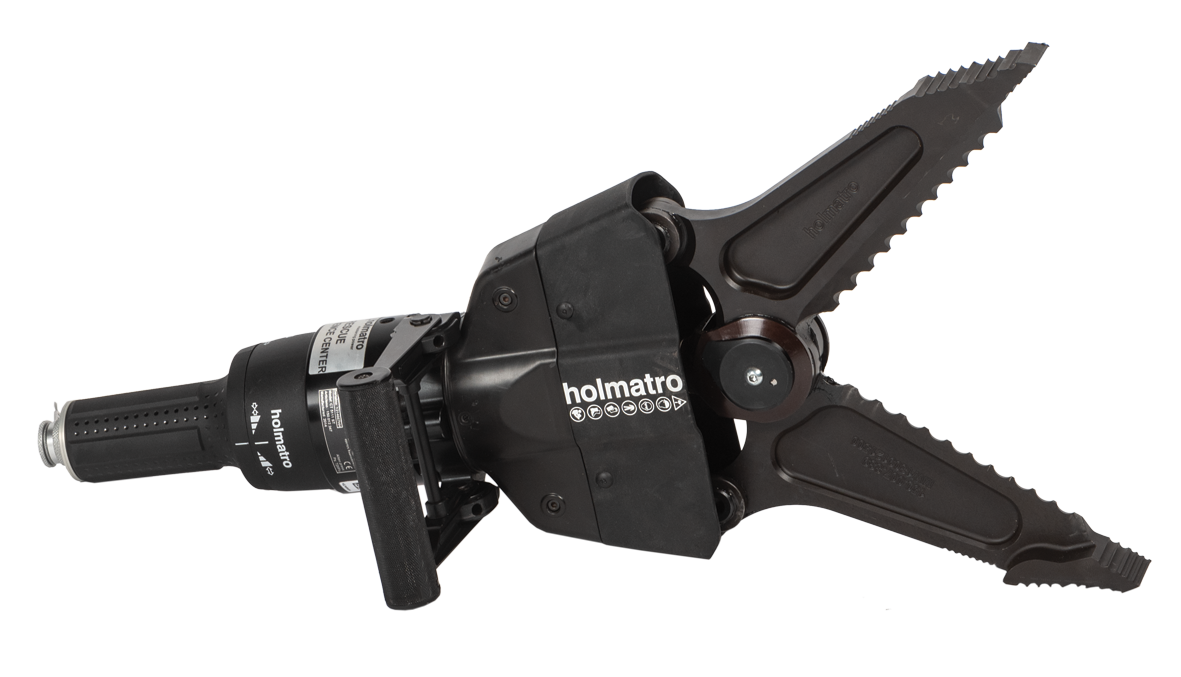

CT5114ST - Combi Tool

Article Number: 151.000.518

Model: CT 5114 ST

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Keywords: CT5114ST
• Equipped with (connector type): CORE

Performance:

• Spreading distance: 362 mm (14.3 in)
• Max. cutting opening: 277 mm (10.9 in)
• Max. spreading force: 303.492 lbf (1350 / 137.7 kN/t)
• Min. spreading force (EN 13204): 7.419 lbf (33 / 3.4 kN/t)
• Theoretical calculated spreading force: 166.359 lbf (740 / 75.5 kN/t)
• Theoretical cutting force: 60.249 lbf (268 / 27.3 kN/t)
• Max. squeezing force: 7.644 lbf (34 / 3.5 kN/t)
• Directives: 2006/42/EC

General Specifications:

• Required oil content (effective): 55 cc (1.9 oz)
• Hydraulic safety factor: 2:1
• Endurance test tool: 1000 cycles of spreading while the tool is loaded and 1000 cycles of biting in material that cannot be cut
• Endurance test dead man's handle: 6000 cycles
• EN 13204 compliant: yes
• EN 13204 classification: BK33/362-E-8.4
• EN 13204 classification 2025 Ed.: CT3-33/362-E
• EN 13204, cutting capacity: 1E 2E 3E 4E 5E
• NFPA 1960 compliant: yes
• NFPA 1960, cutting capacity: A5 B5 C5 D6 E4 F3
• NFPA 1960, HSF: 40 kN (4.1 t, 8.992 lbf, 40 / 4.1 kN/t)
• NFPA 1960, LSF: 30 kN (3.1 t, 6.744 lbf, 30 / 3.1 kN/t)
• Cutting performance round bar (S235 acc. to EN 13204): 24 mm (0.9 in)

Dimensions, Weight and Temperature:

• Weight, ready for use (hose connected): 9.6 kg (21.2 lb)
• Weight (without hose): 8.4 kg (18.5 lb)
• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 598 x 217 x 115 mm (23.5 x 8.5 x 4.5 in)

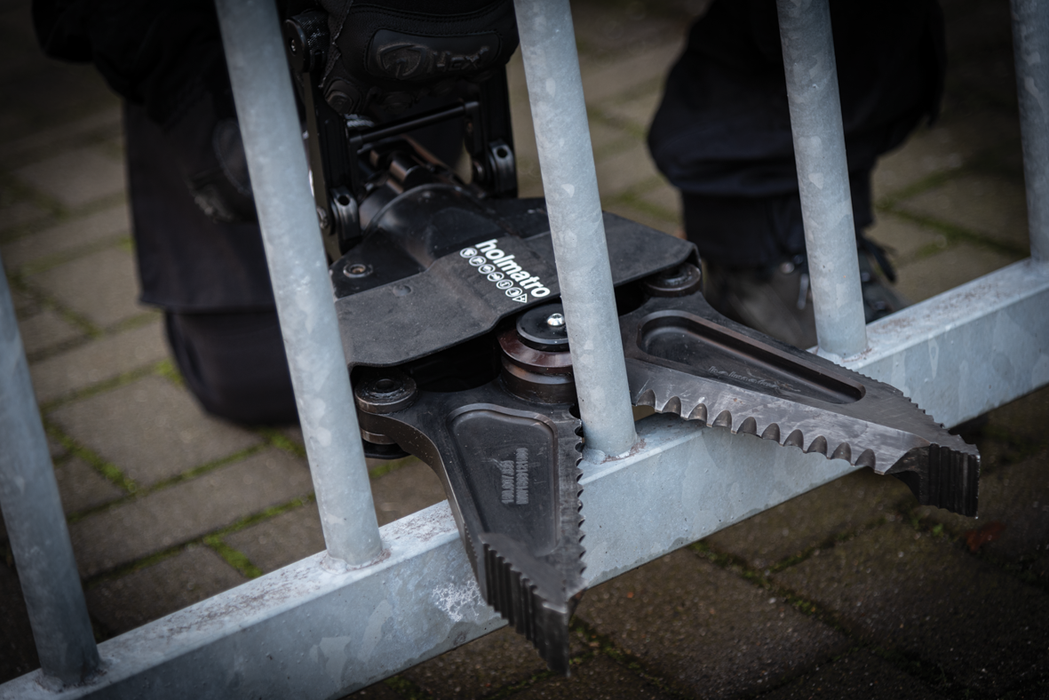

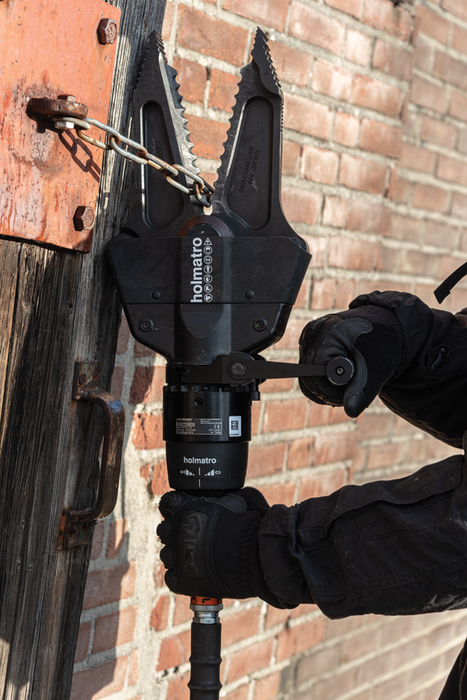

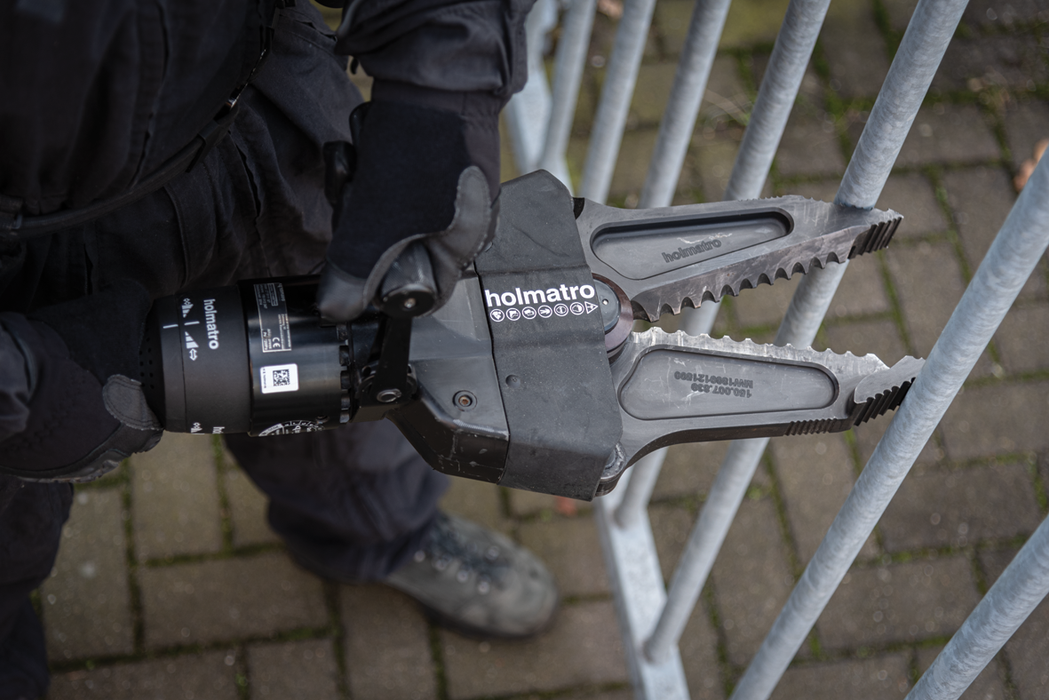

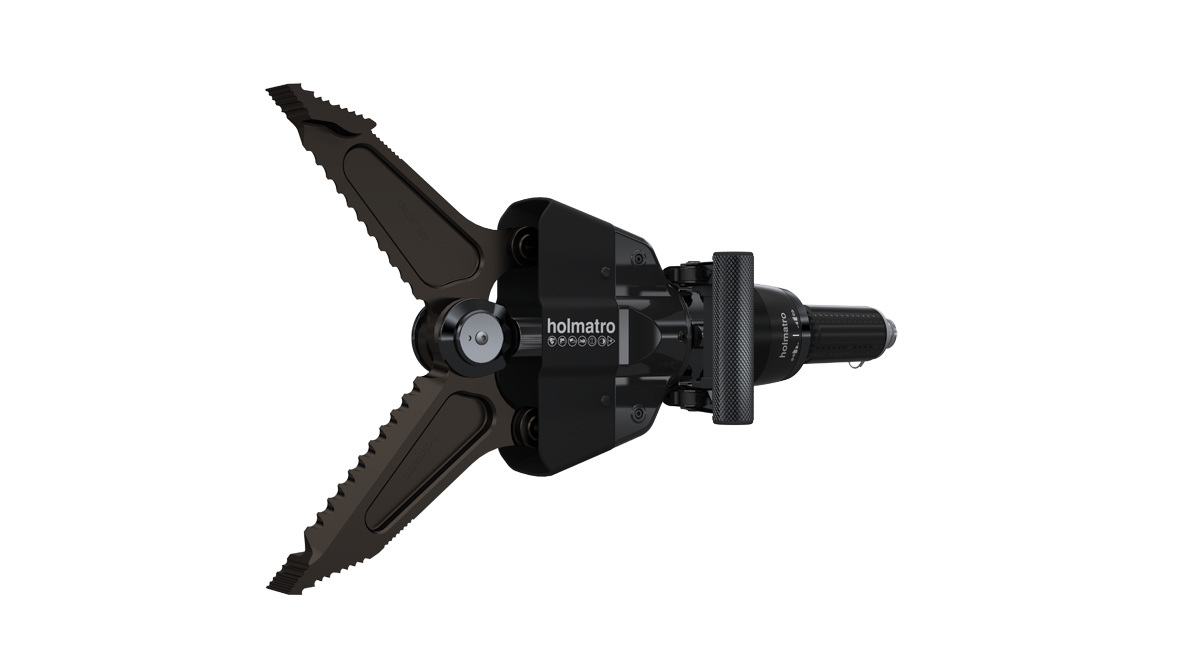

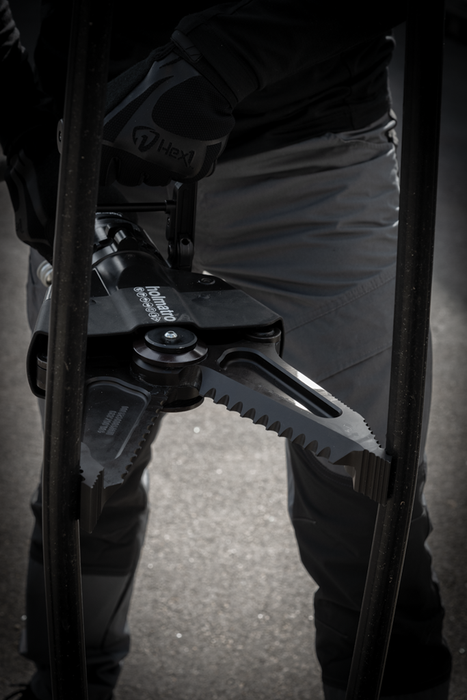

Product Description: For spreading, cutting and squeezing with one tool - CORE version.

Features & Benefits:

• Extremely compact & ultra-lightweight: Easy to add to your existing kit; Easy to carry, transport and store; Carrying handle 90° foldable for extra compactness
• Optimal performance to weight ratio: Very high spreading force and large spreading distance compared to size and weight; High cutting force and large cutting opening compared to size and weight

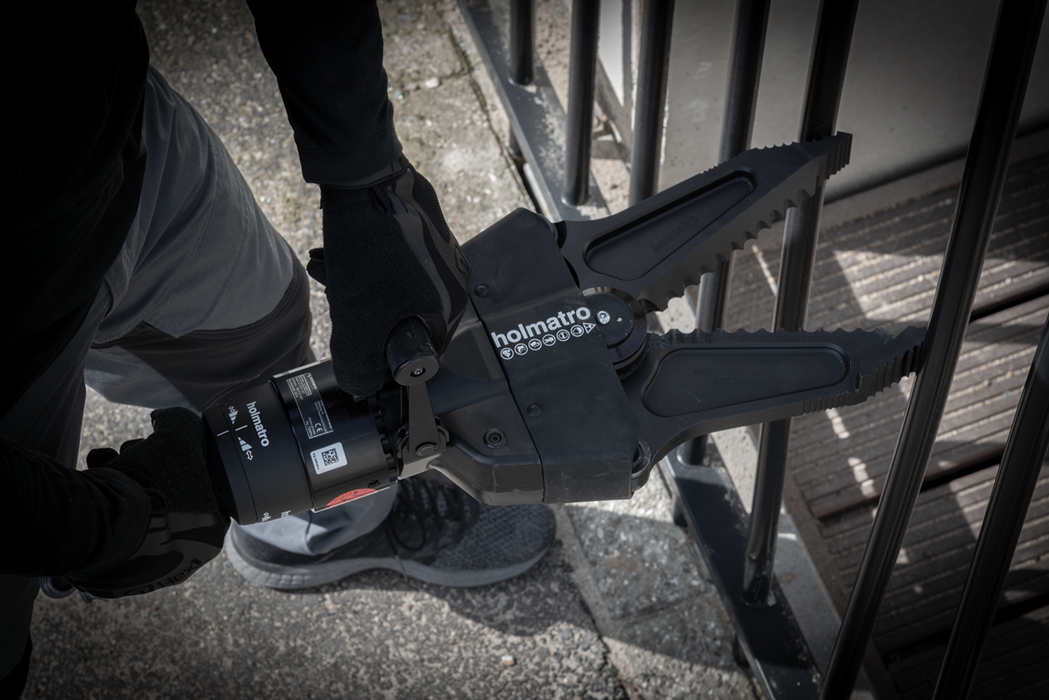

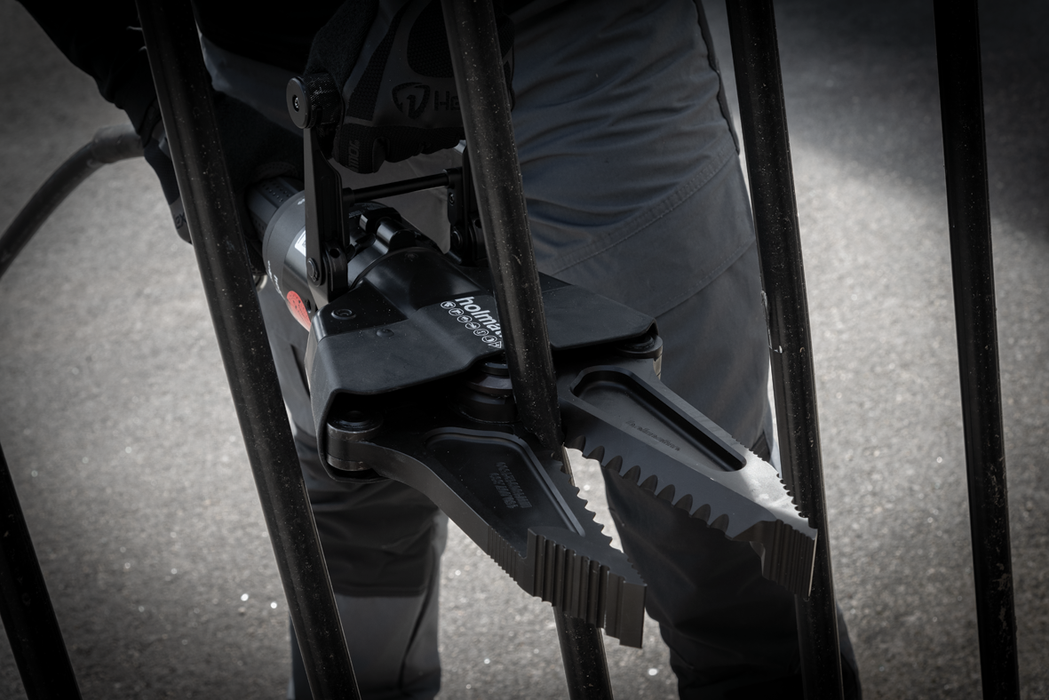

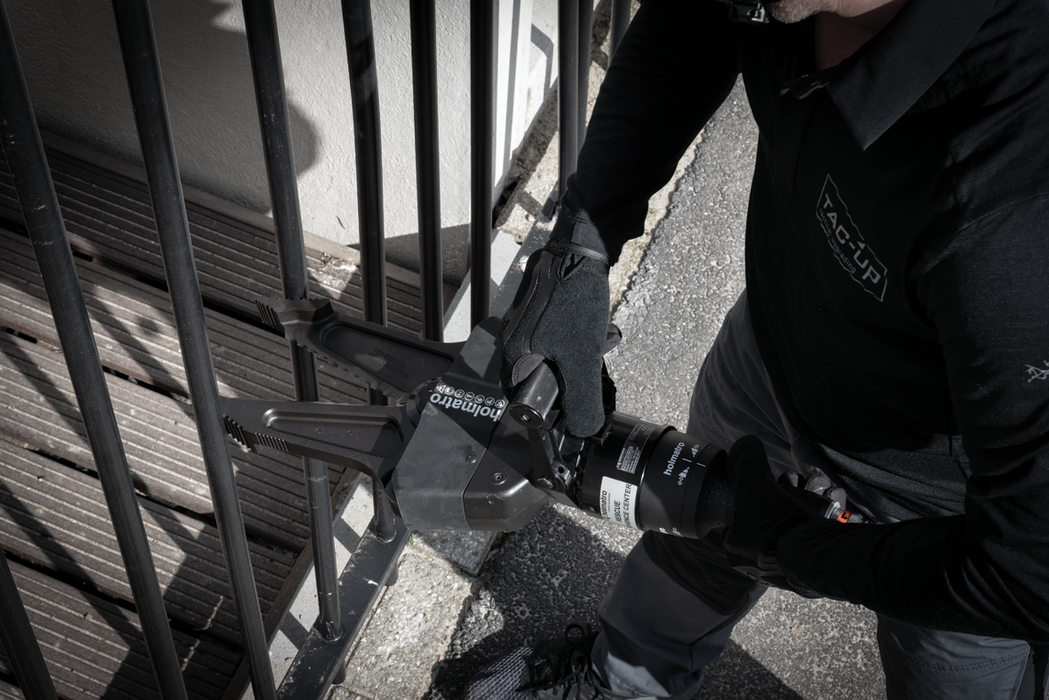

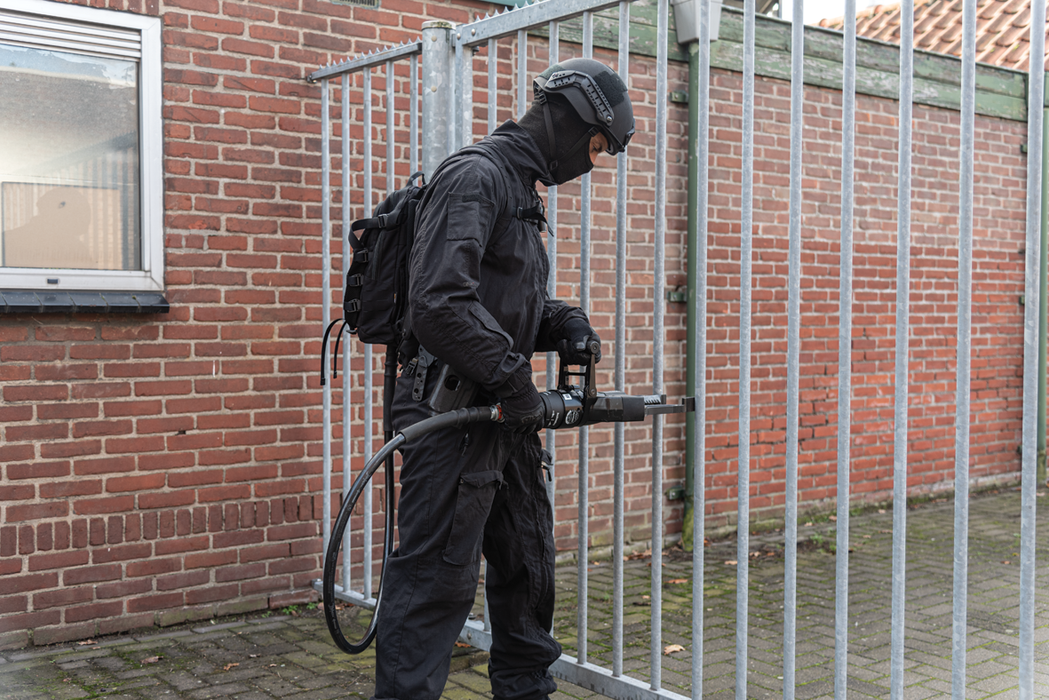

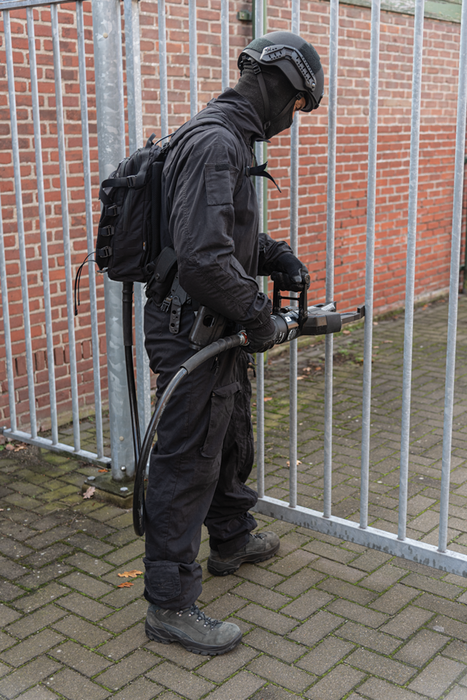

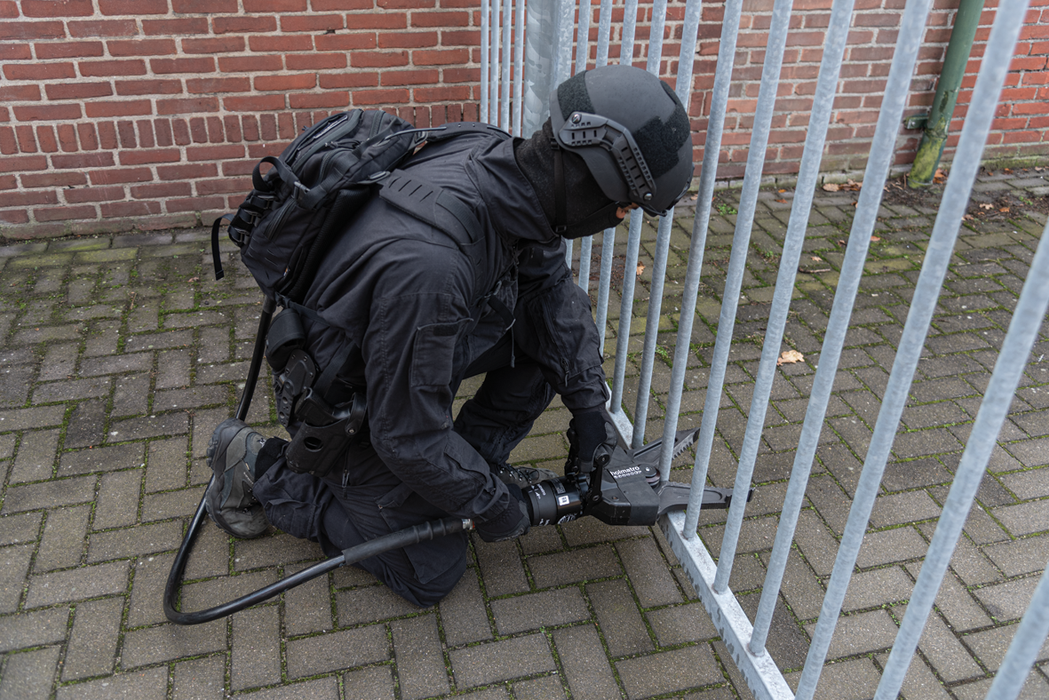

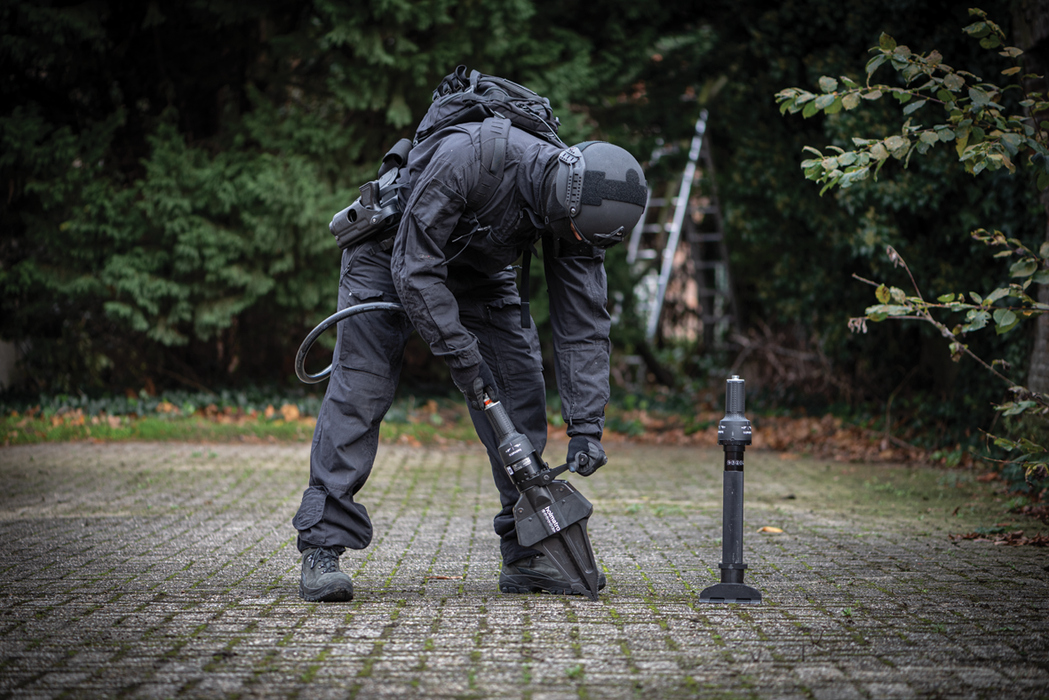

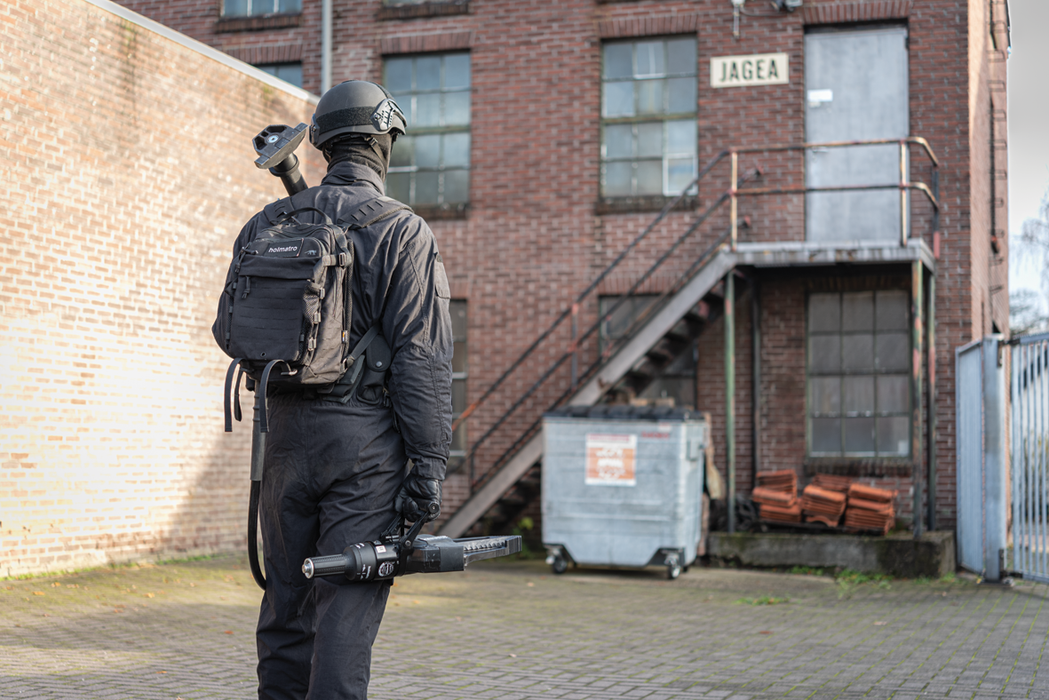

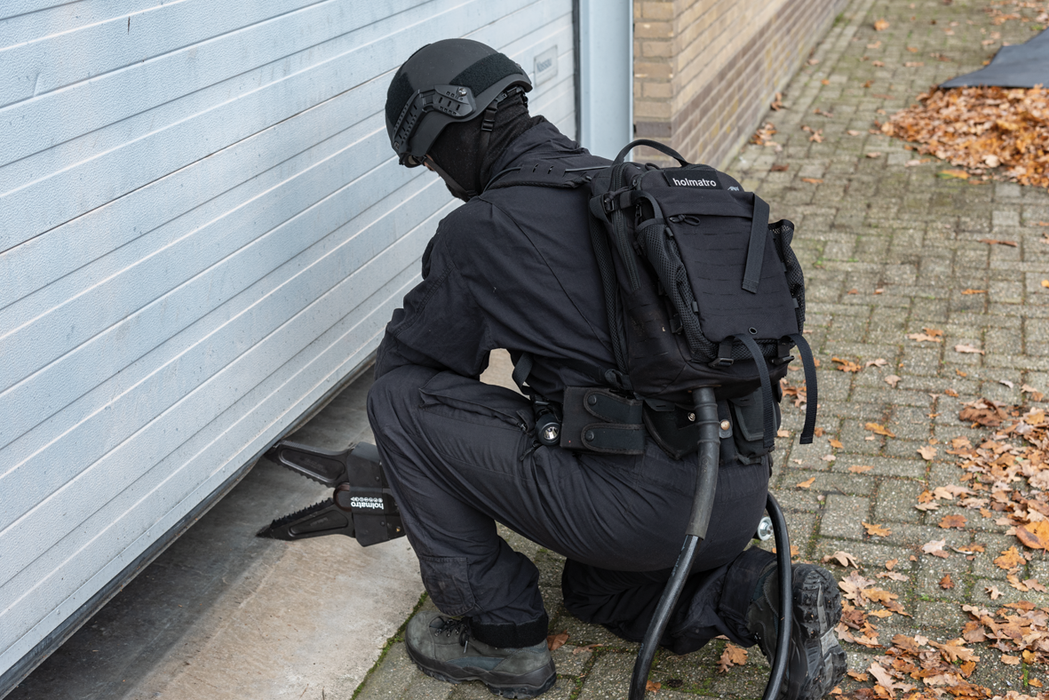

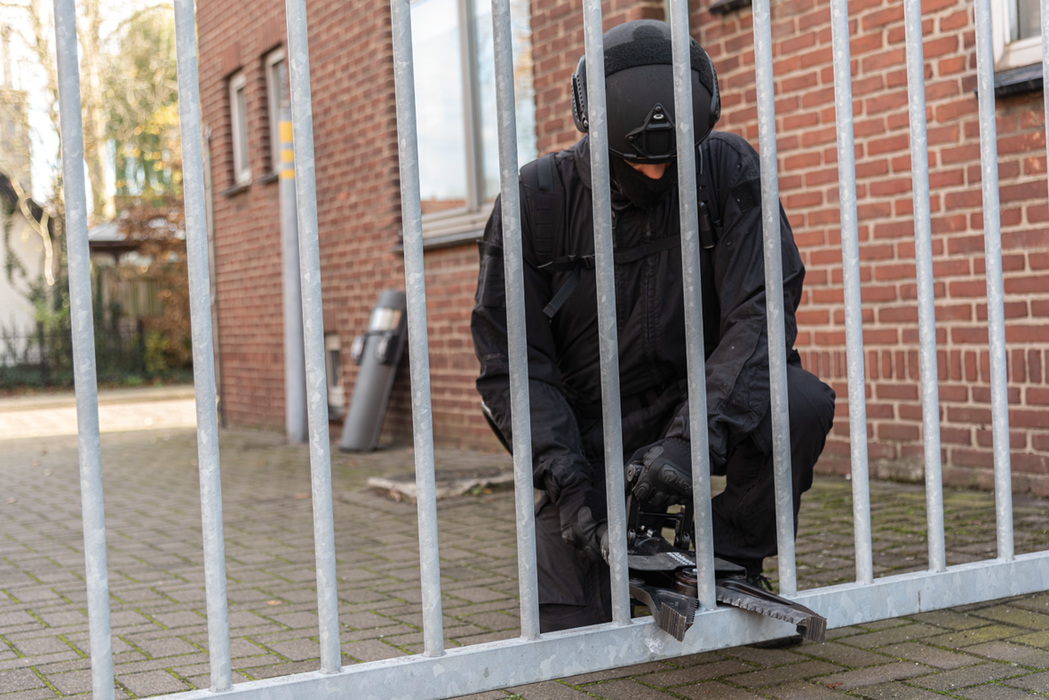

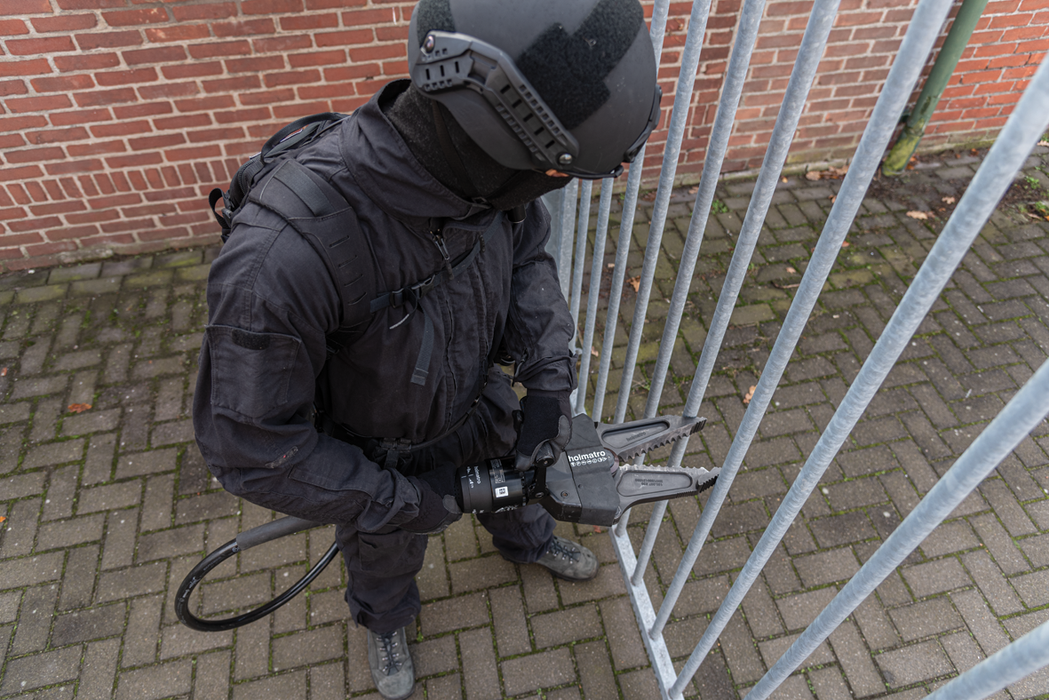

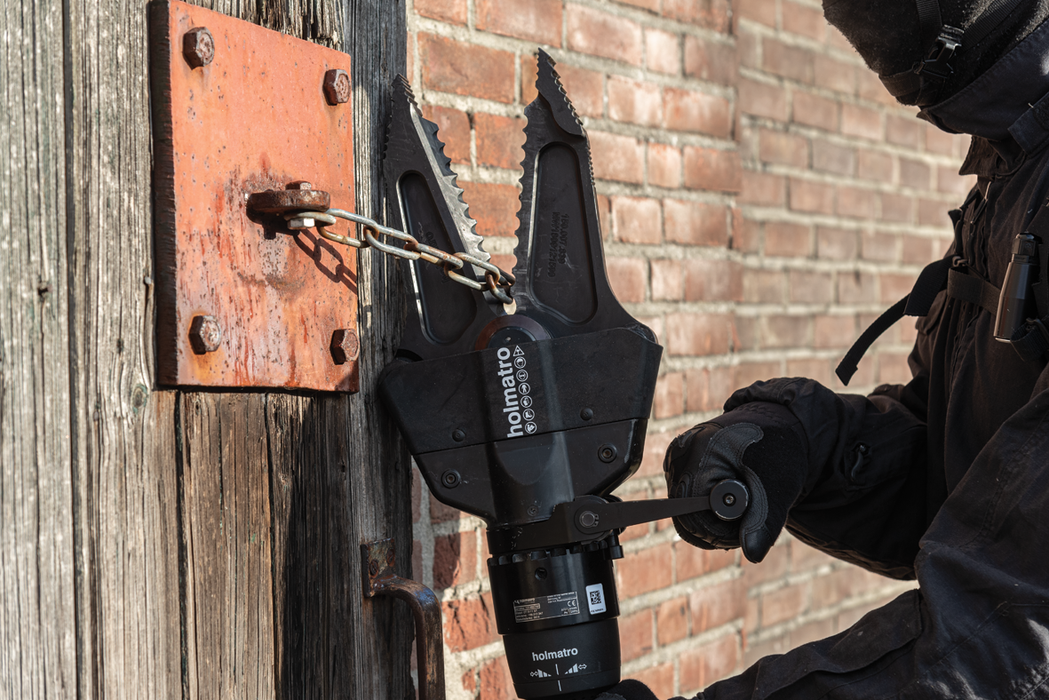

• Multifunctional: Suitable for both cutting and spreading; Suitable for dive operations / under water use; Suitable for a variety of applications, ranging from forcible entry to extrication of persons trapped

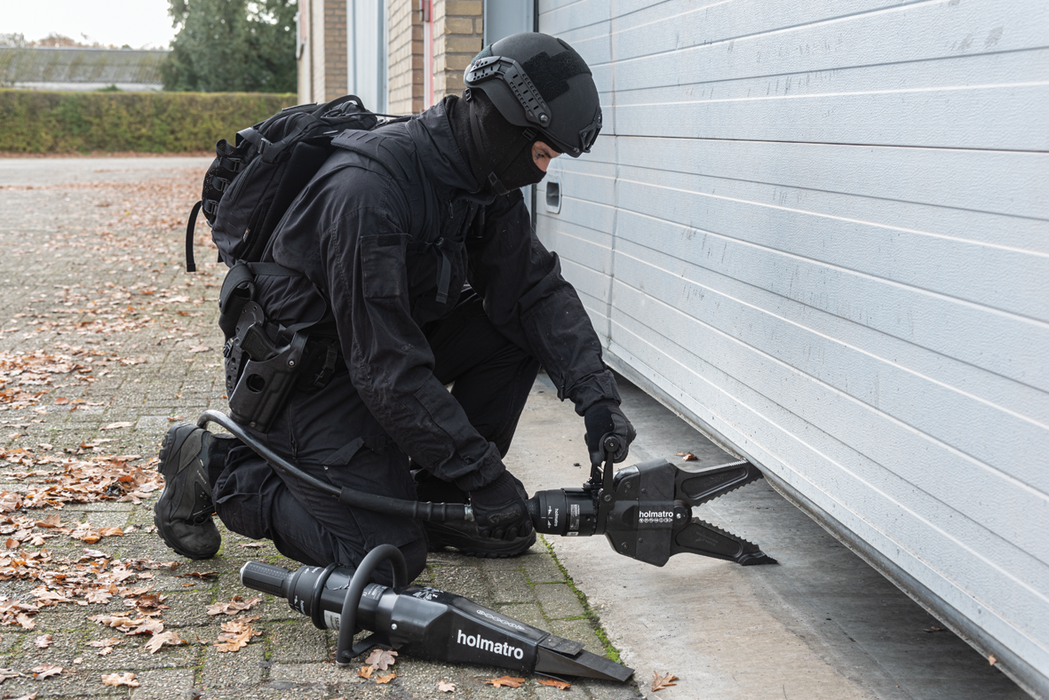

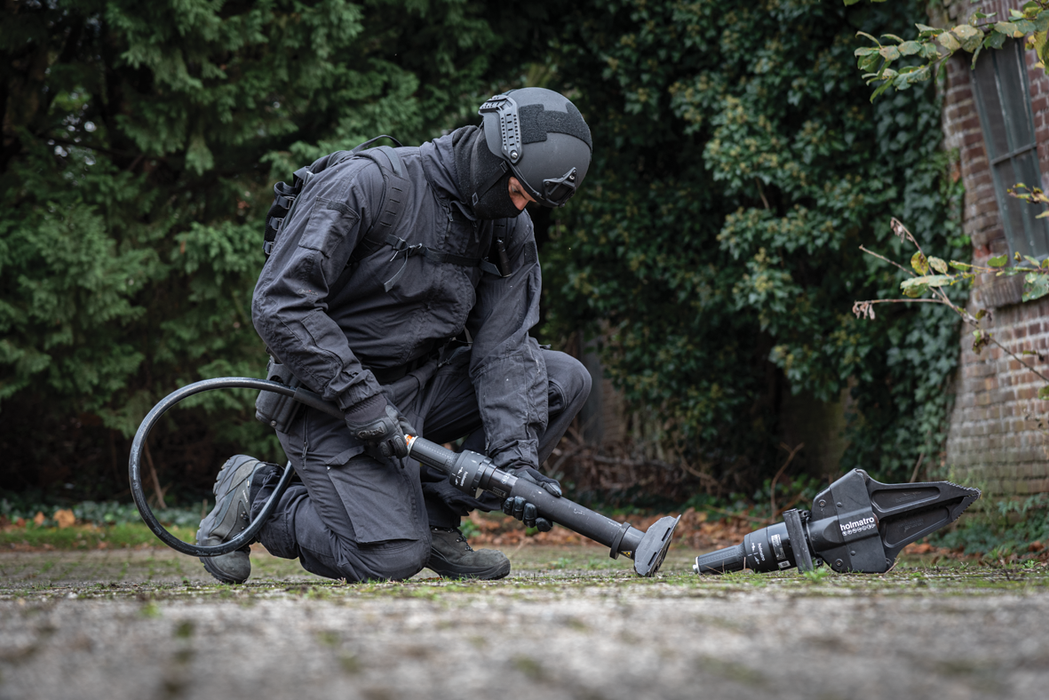

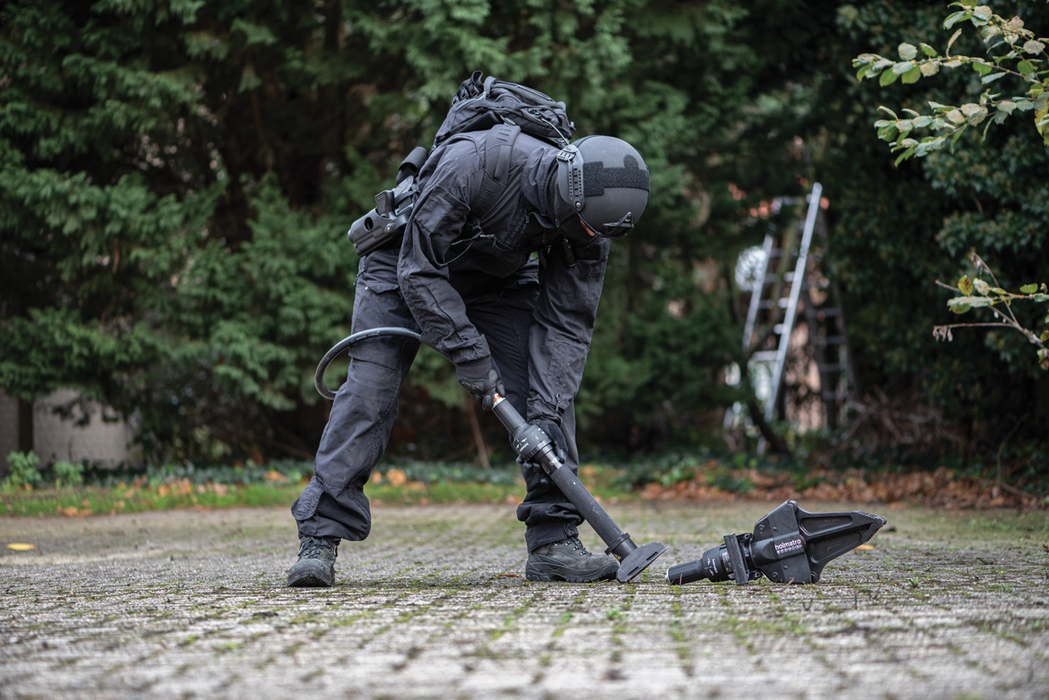

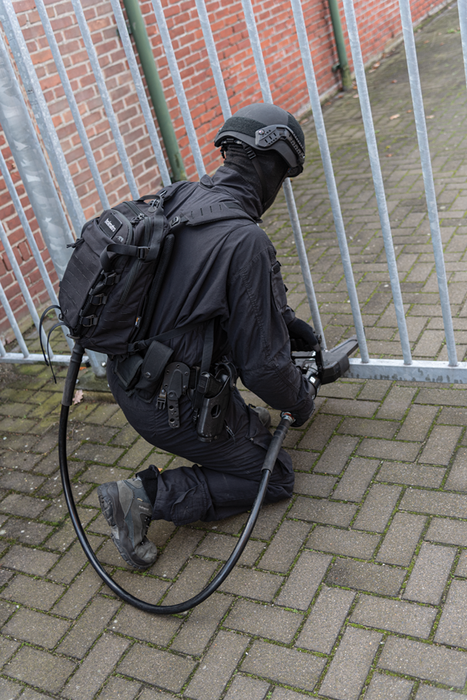

• Pump-operated model: The separate hand pump decreases the weight of the tool and increases maneuverability
• 360° rotatable aluminum carrying handle: Continuous swivel with 11 locking positions; For use of the tool in almost any position

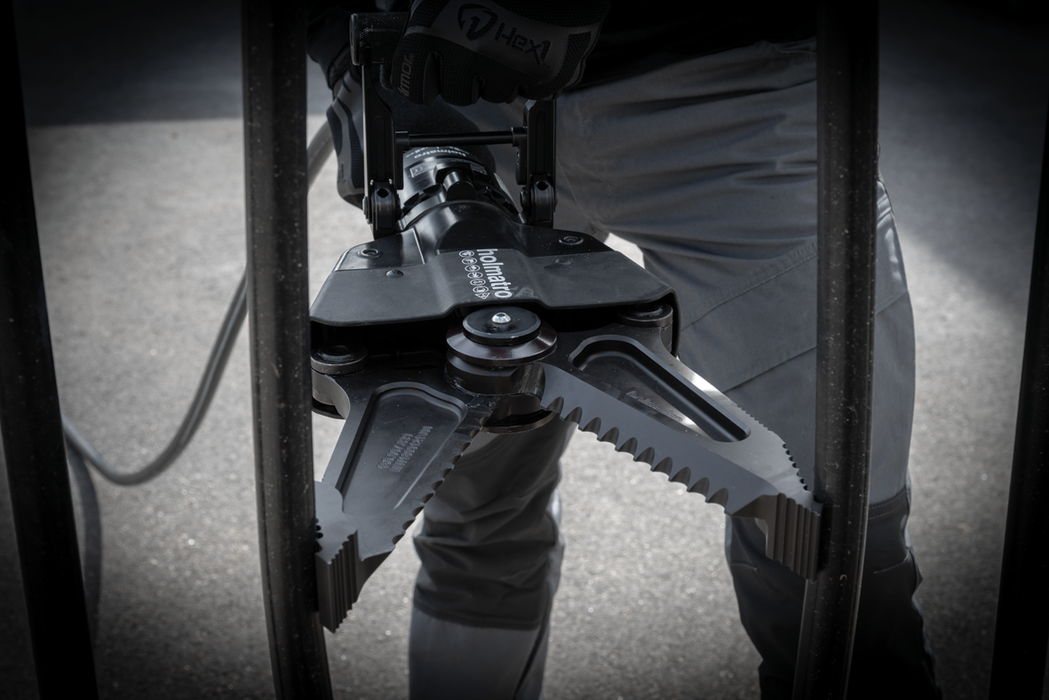

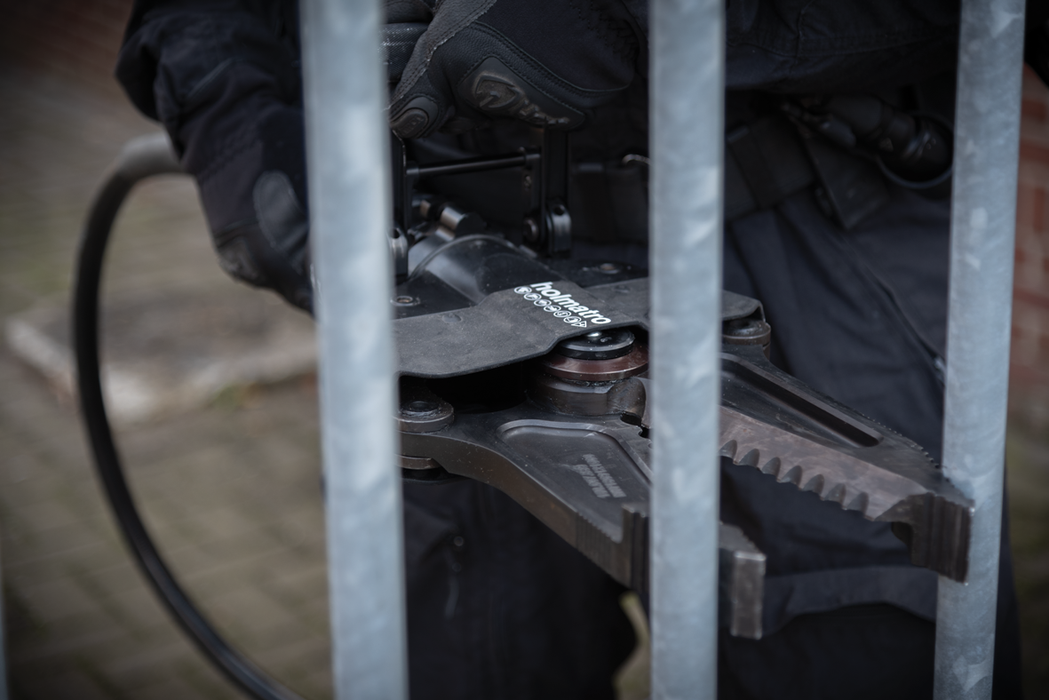

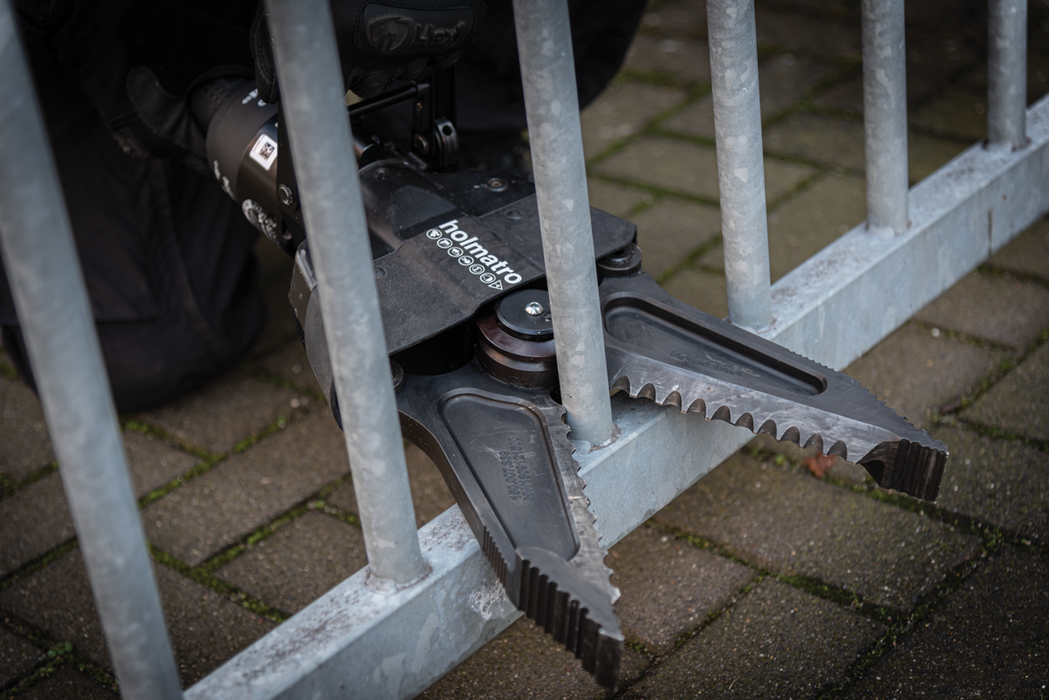

• Equipped with i-Bolt: Flat central bolt construction for better access to narrow spaces; Squeezes the blades together directly, which results in less blade separation and a better cutting performance
• Standard supplied with: 360° rotatable & fold flat carrying handle; i-Bolt Technology; Redesigned, ergonomic control handle with improved grip; CORE Technology: quicker, safer, easier
