GBP10EVO3 - Battery Pump

Article Number: 159.000.168

Model: GBP10EVO3

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Battery included: no
• Keywords: GBP10EVO3
• Equipped with (connector type): CORE

Performance:

• Number of stages: 2
• First stage pressure range: 0 - 1.958 psi (0 - 135 / 0 - 13.5 bar/Mpa)
• First stage output / min.: 2.200 cc (74.4 oz)
• Second stage pressure range: 1.958 - 10.443 psi (135 - 720 / 13.5 - 72 bar/Mpa)
• Second stage output / min.: 250 cc (8.5 oz)
• Continuous operation: 0.5 hrs

General Specifications:

• Operator type: battery
• Number of tool connections: 1
• Number of tools simultaneously usable: 1
• Pump type: axial piston pump
• Hydraulic oil type: ISO-L HV VG 15/22
• Engine: 28 VDC - 700 W
• Directives: 2006/42/EC, 2014/30/EU
• Protection rate: IP54
• Sound emission @ 1m/3.25ft: 74 dB(A)
• Sound emission @ 4m/13ft: 65 dB(A)
• Vibration level: <2.5 m/s²
• Capacity oil tank: 635 cc (21.5 oz)
• Capacity oil tank (effective): 425 cc (14.4 oz)

Dimensions, Weight and Temperature:

• Weight, ready for use: 7.5 kg (16.5 lb)
• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 380 x 240 x 120 mm (15 x 9.4 x 4.7 in)
• Weight (excl. battery): 6.5 kg (14.3 lb)

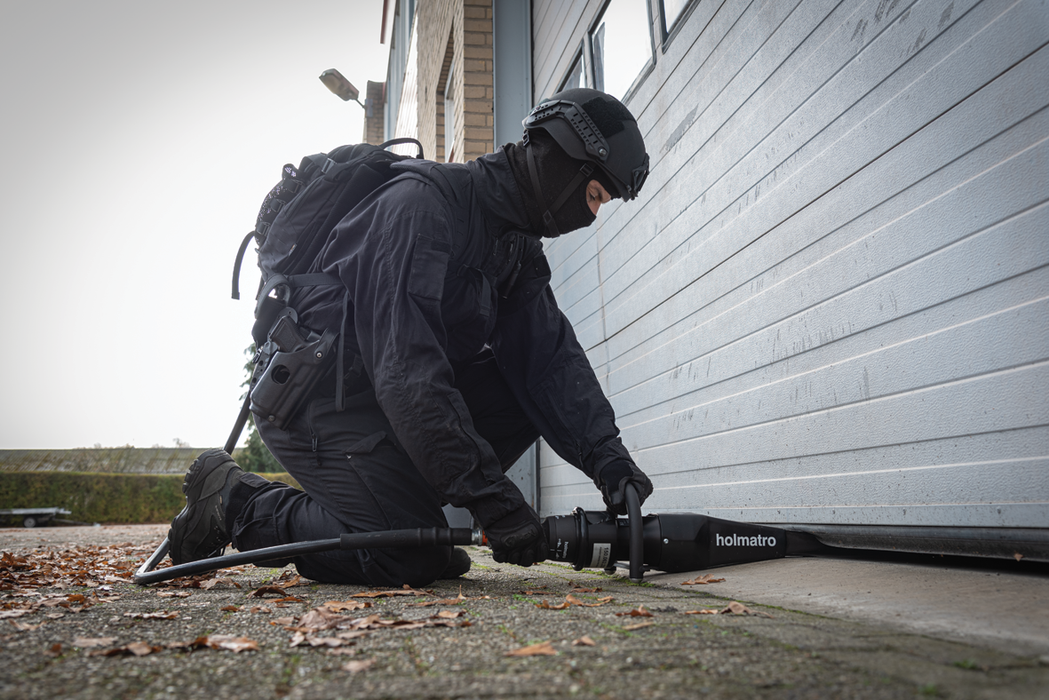

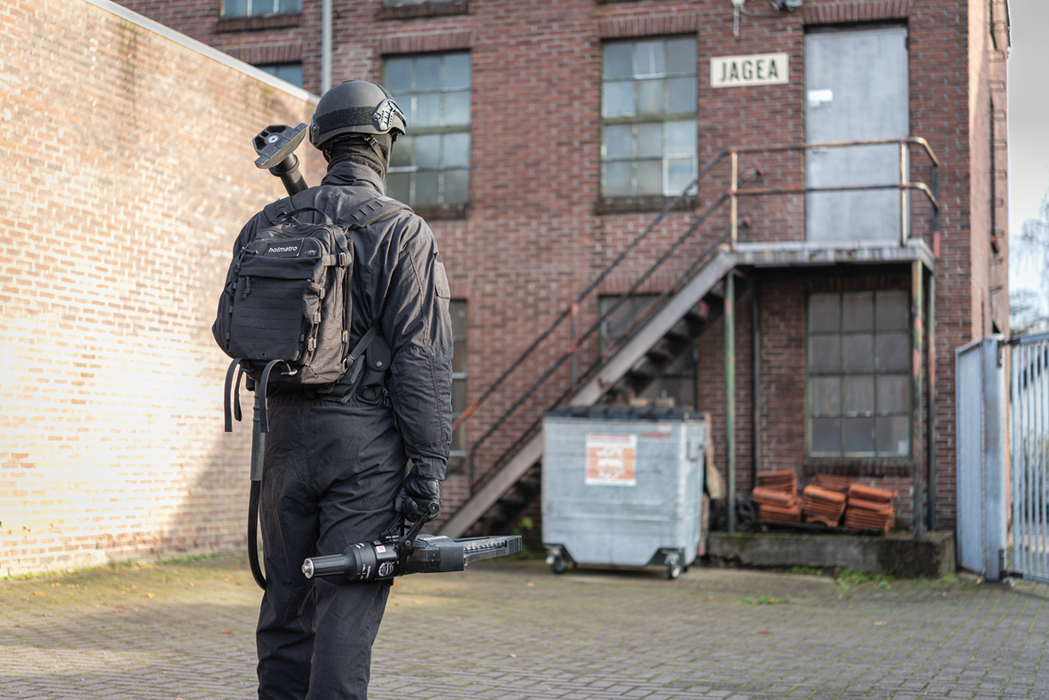

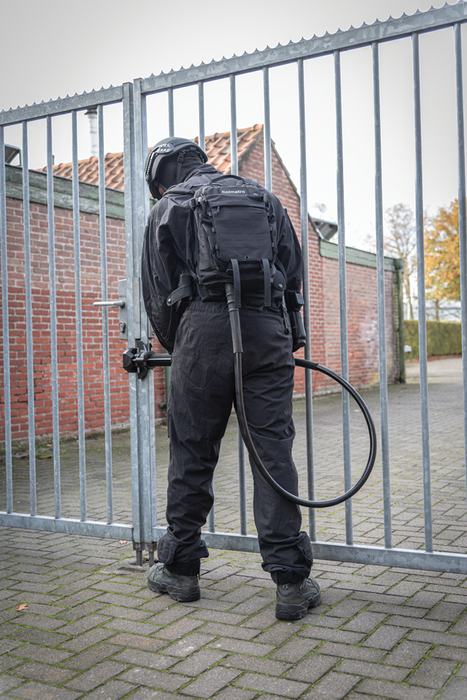

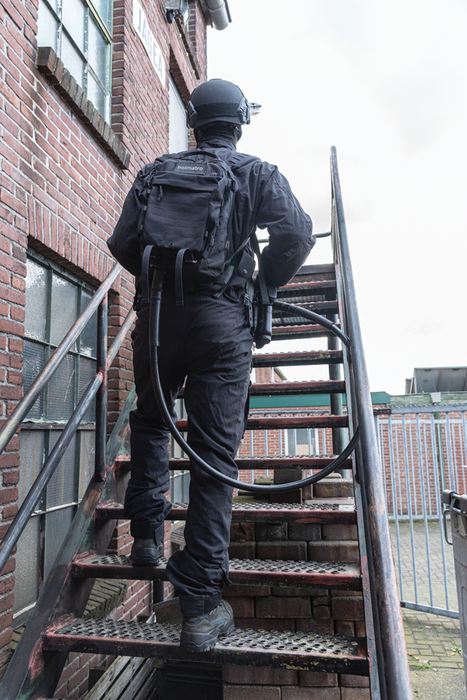

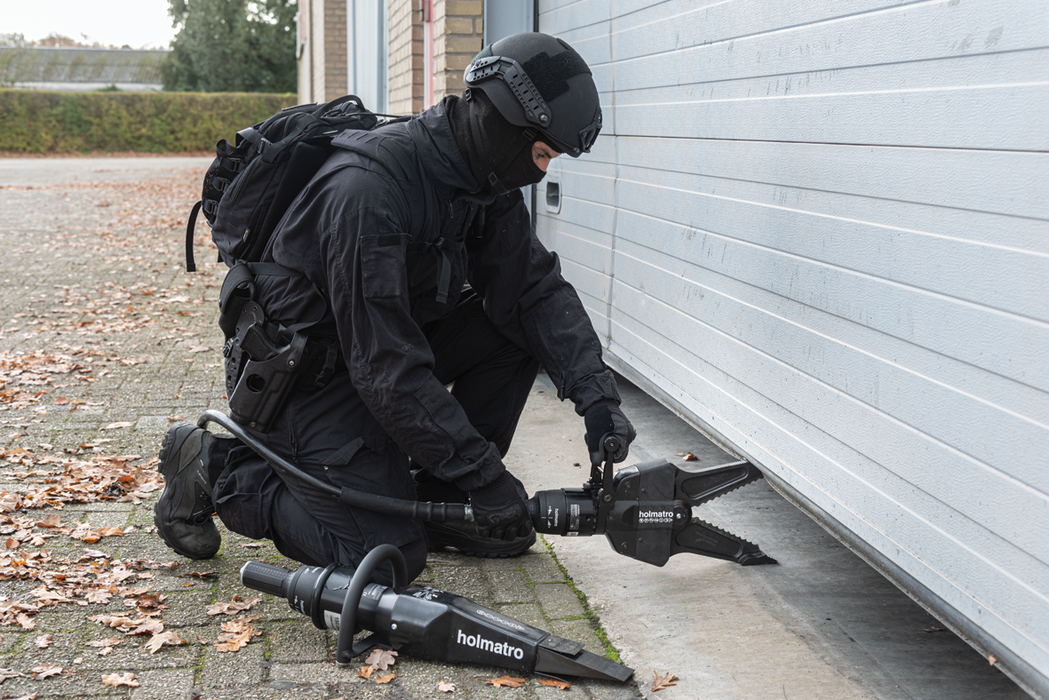

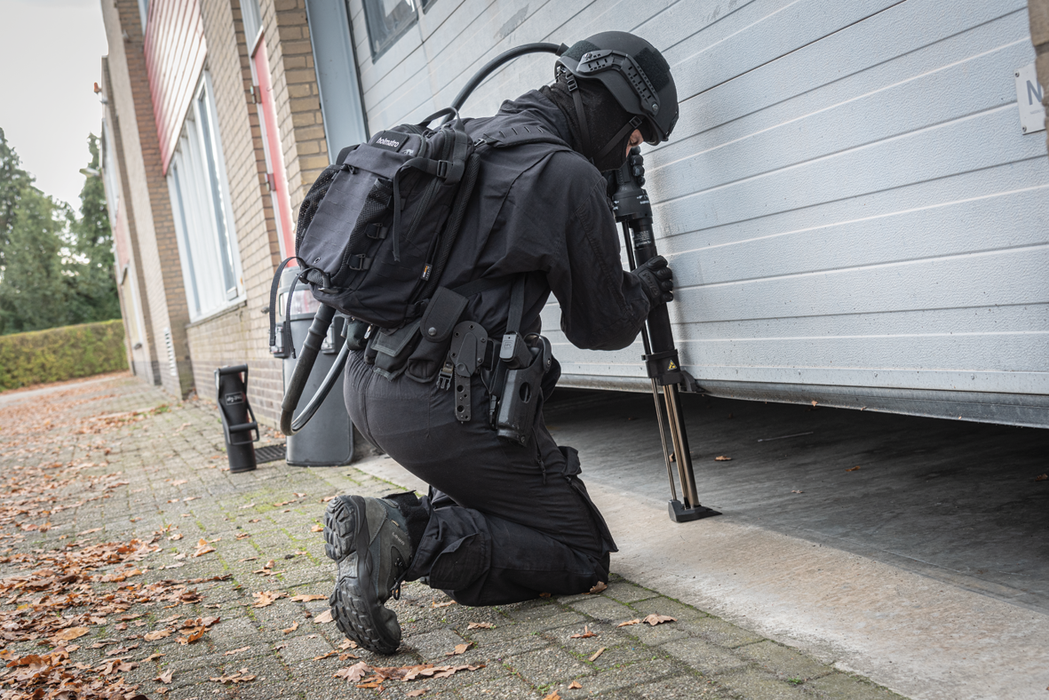

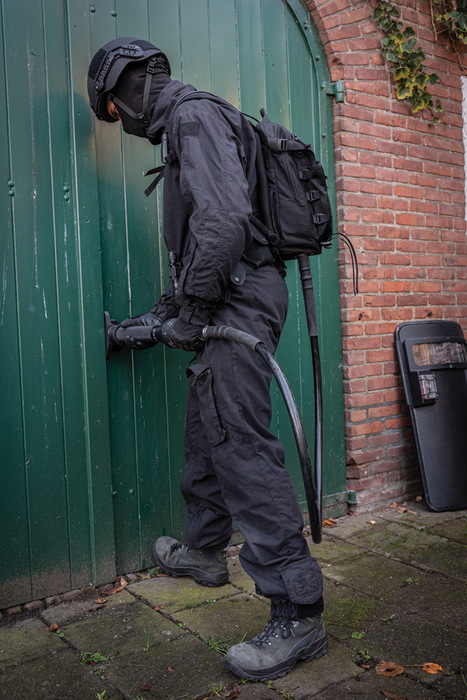

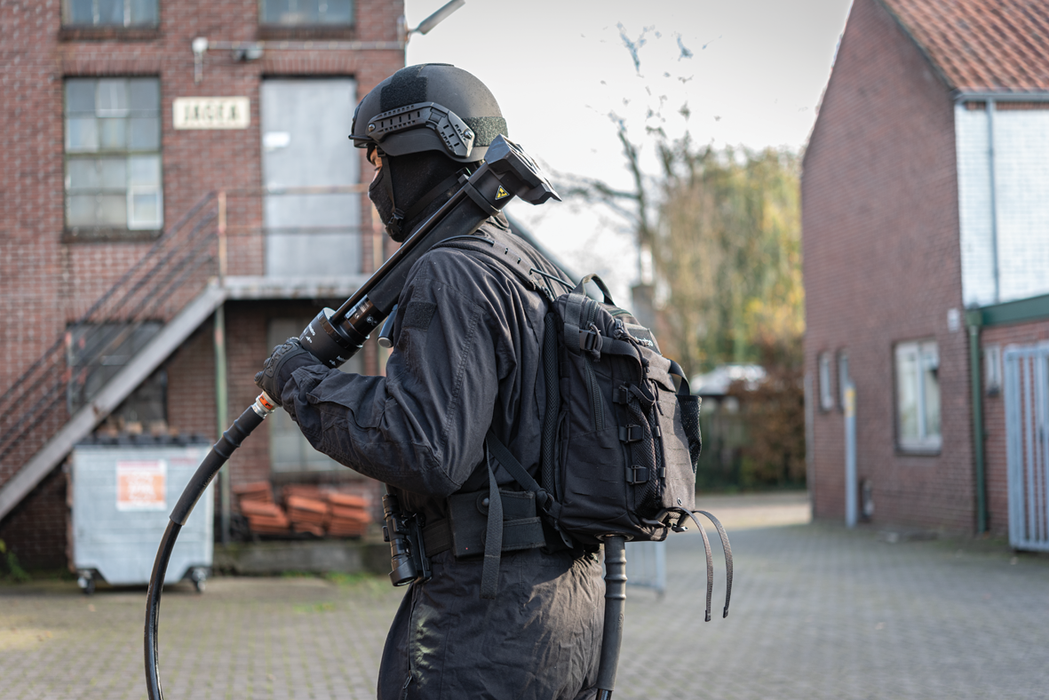

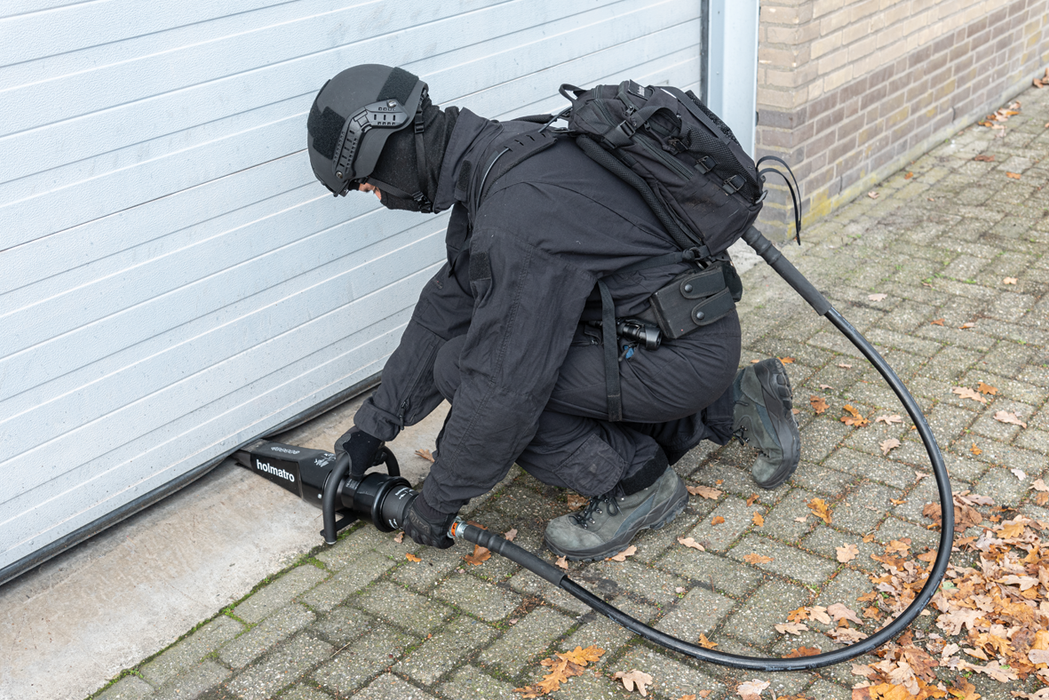

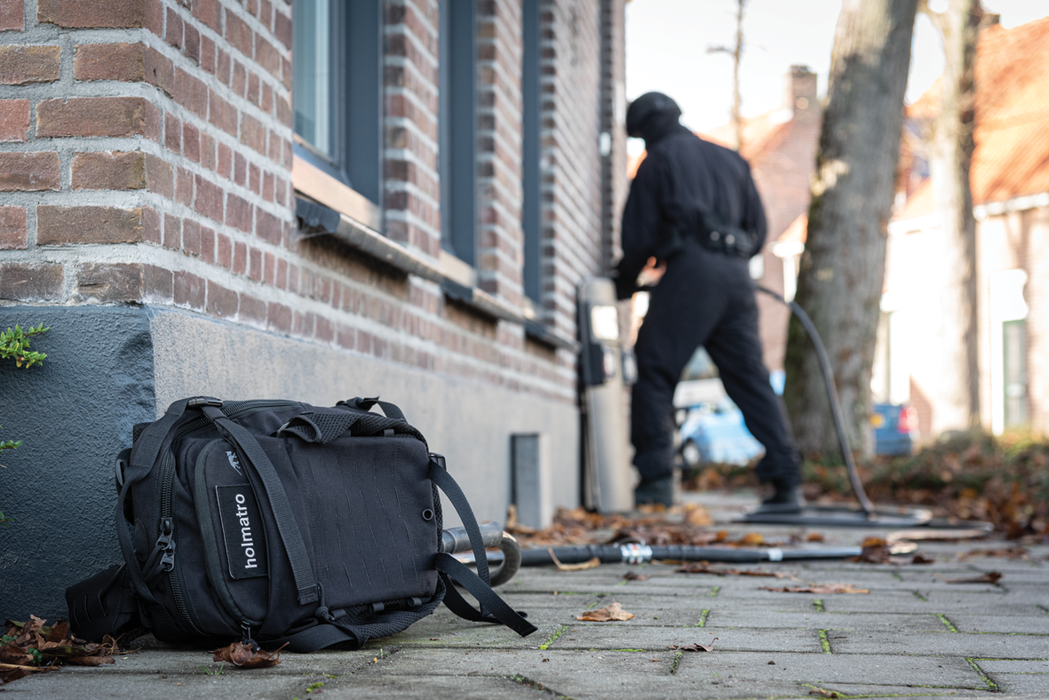

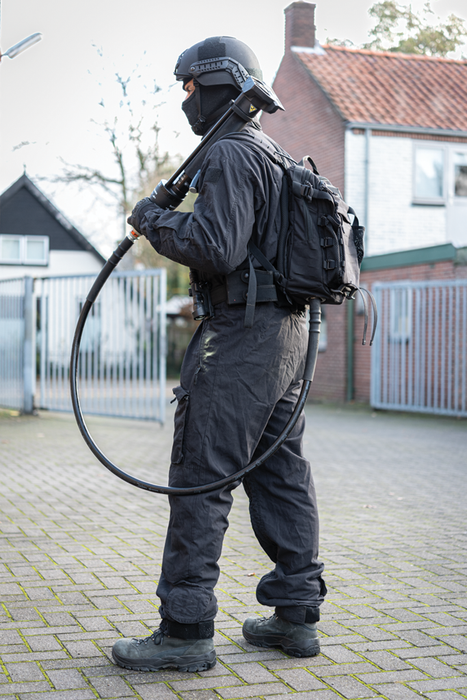

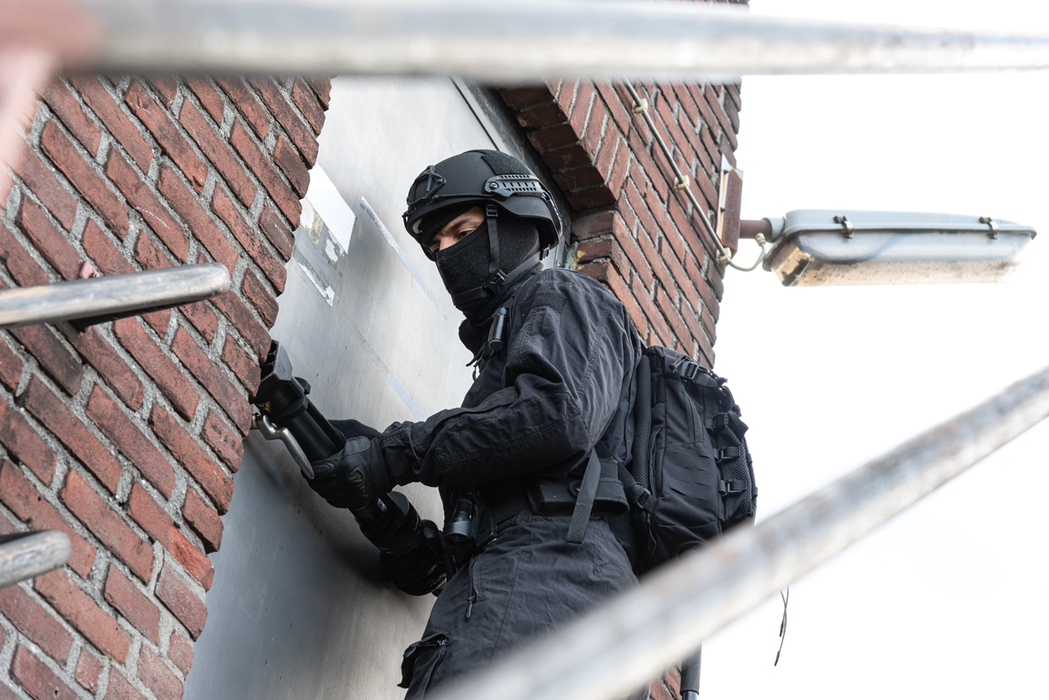

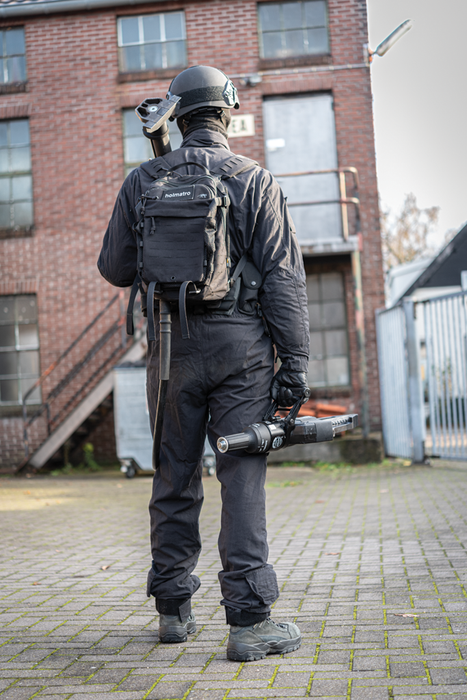

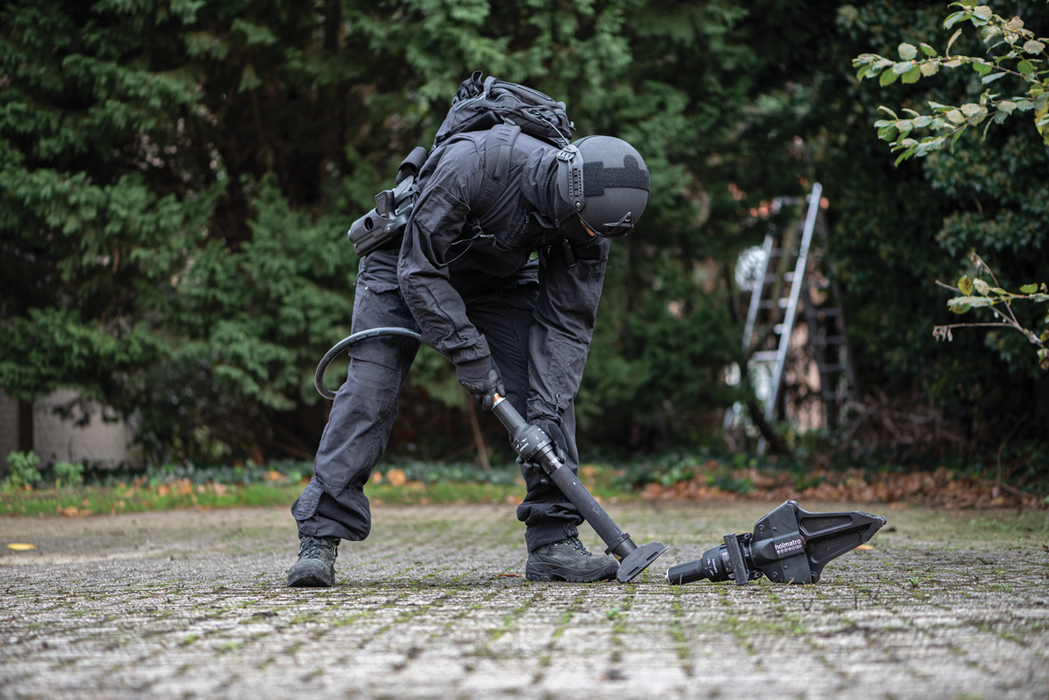

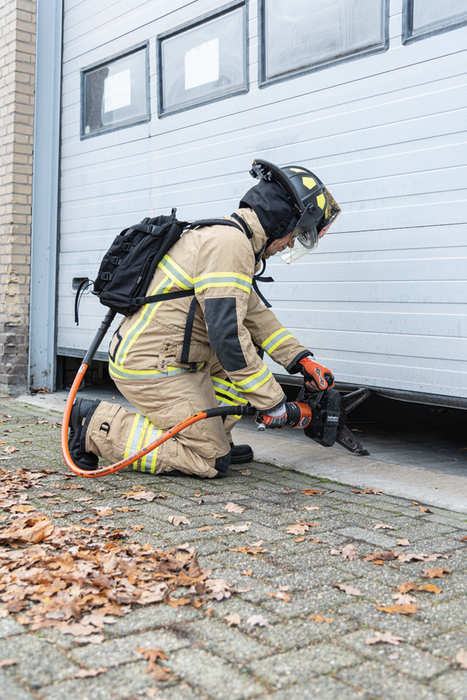

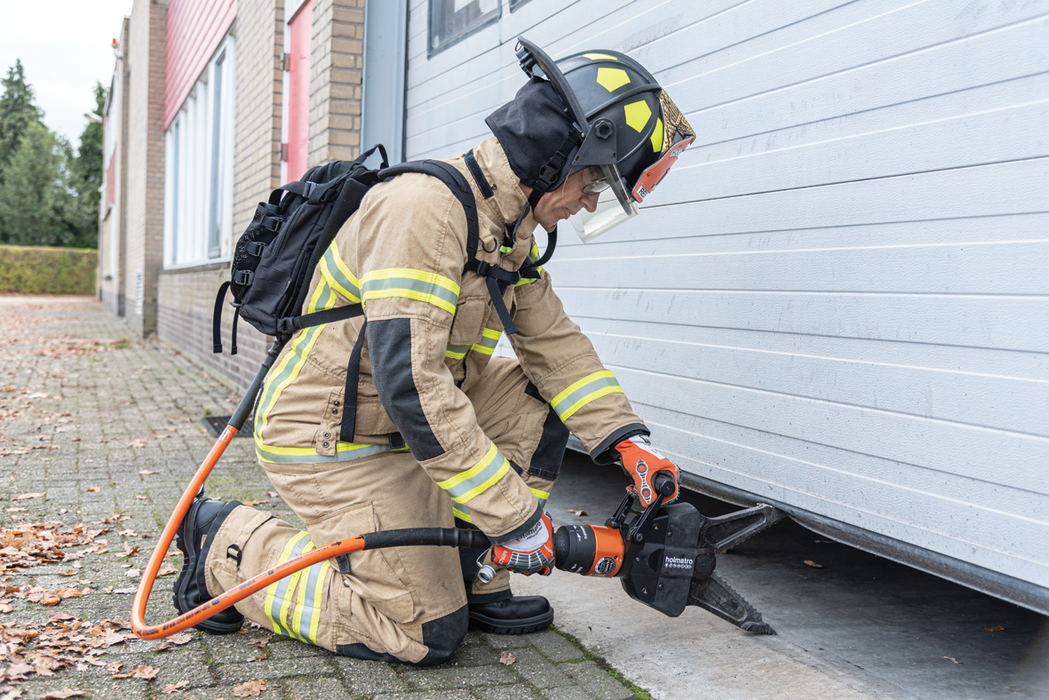

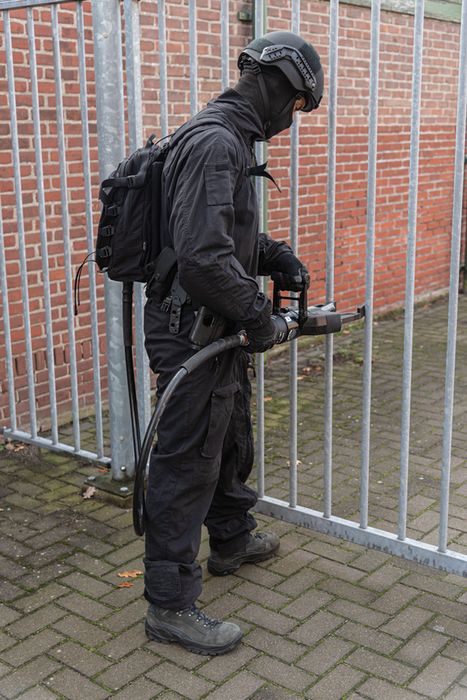

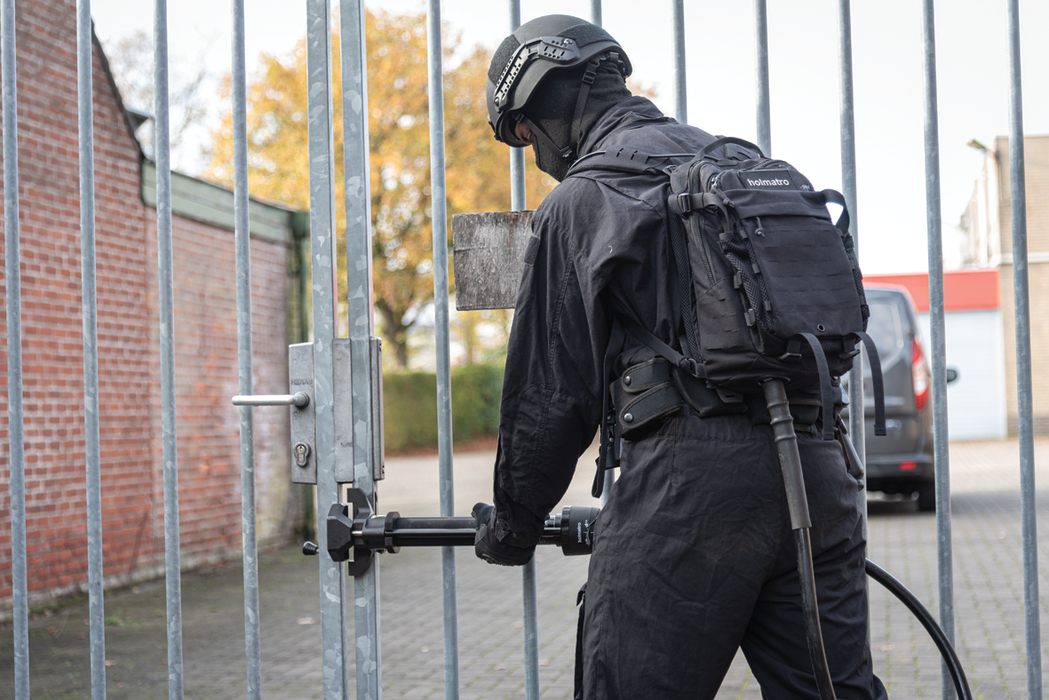

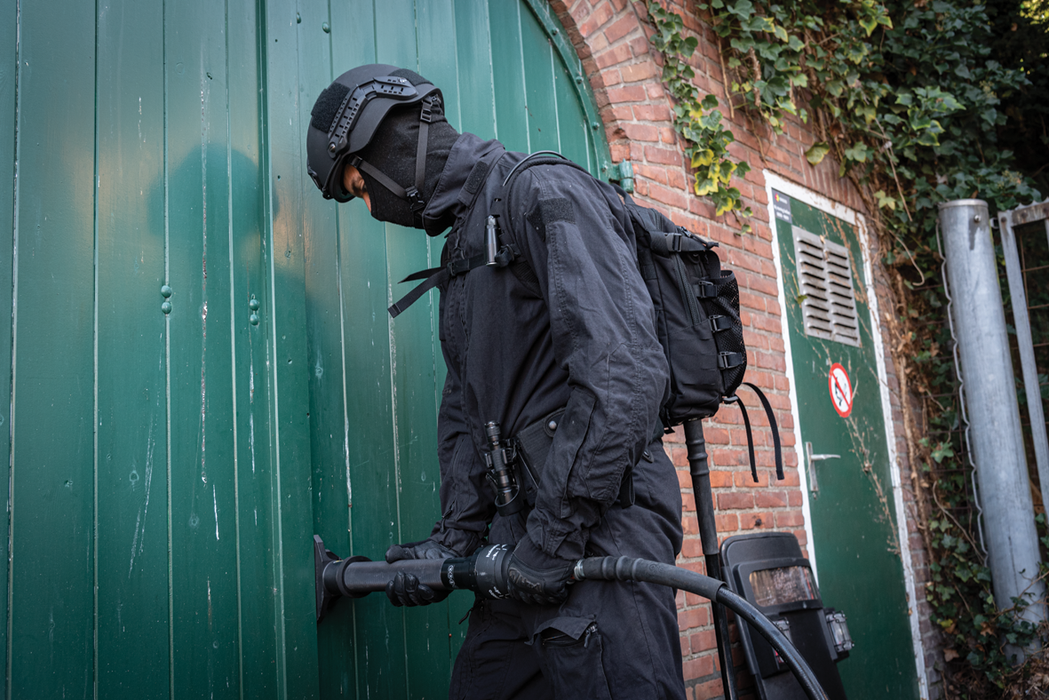

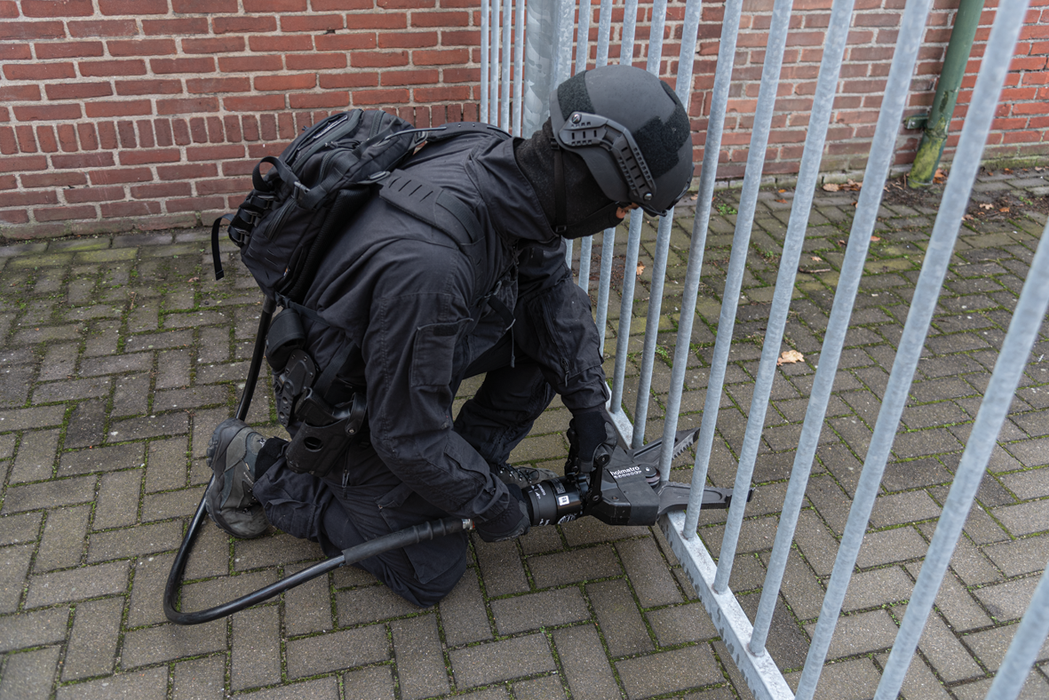

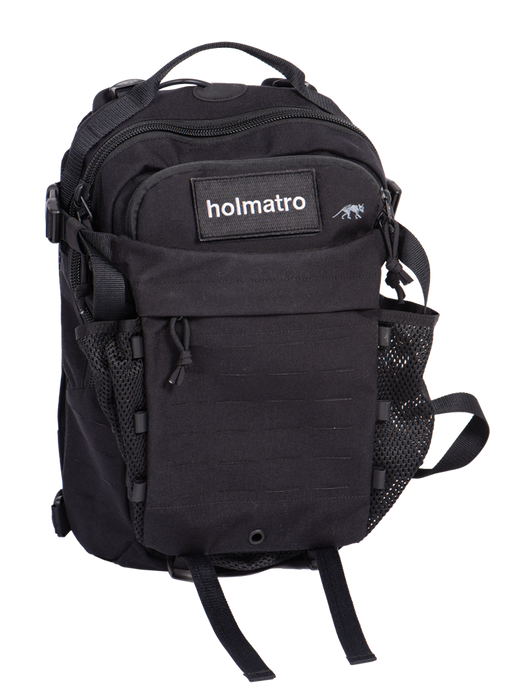

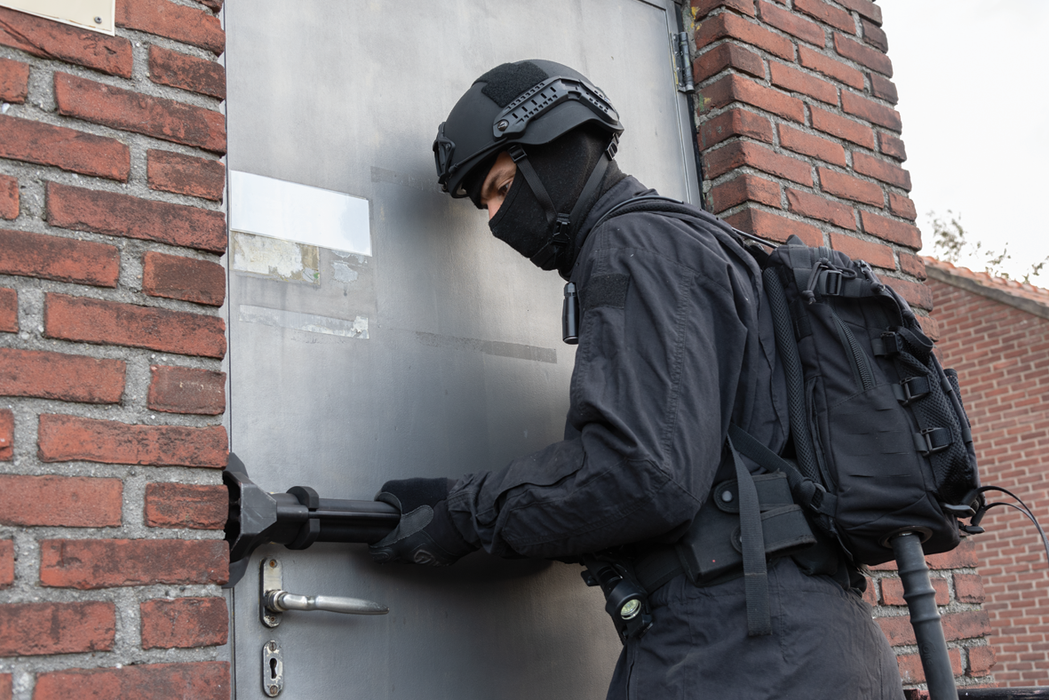

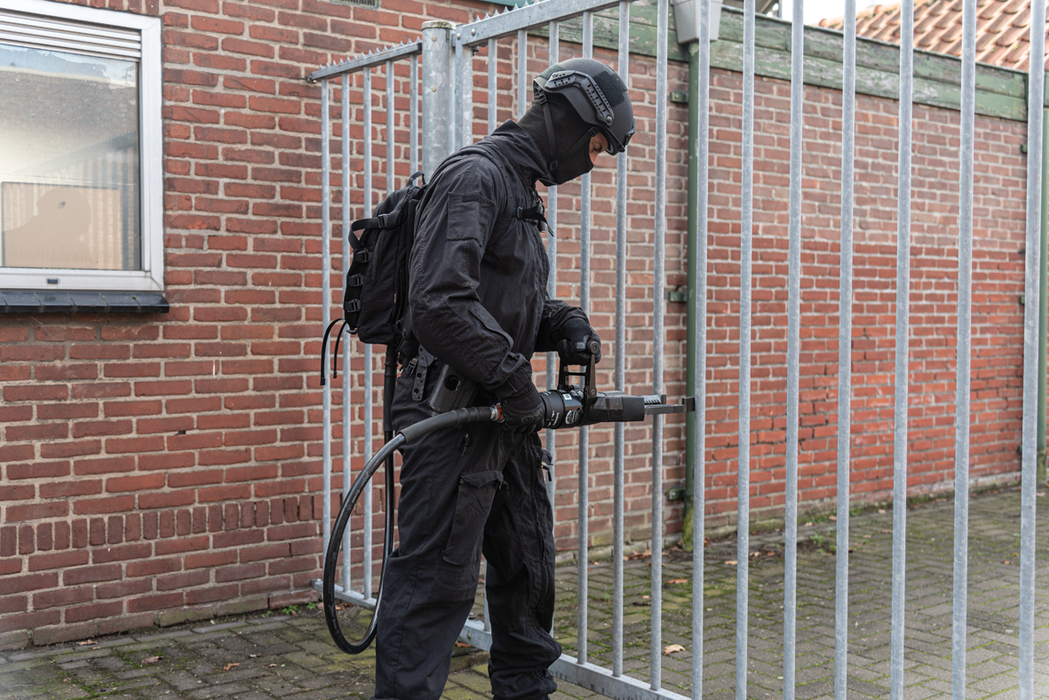

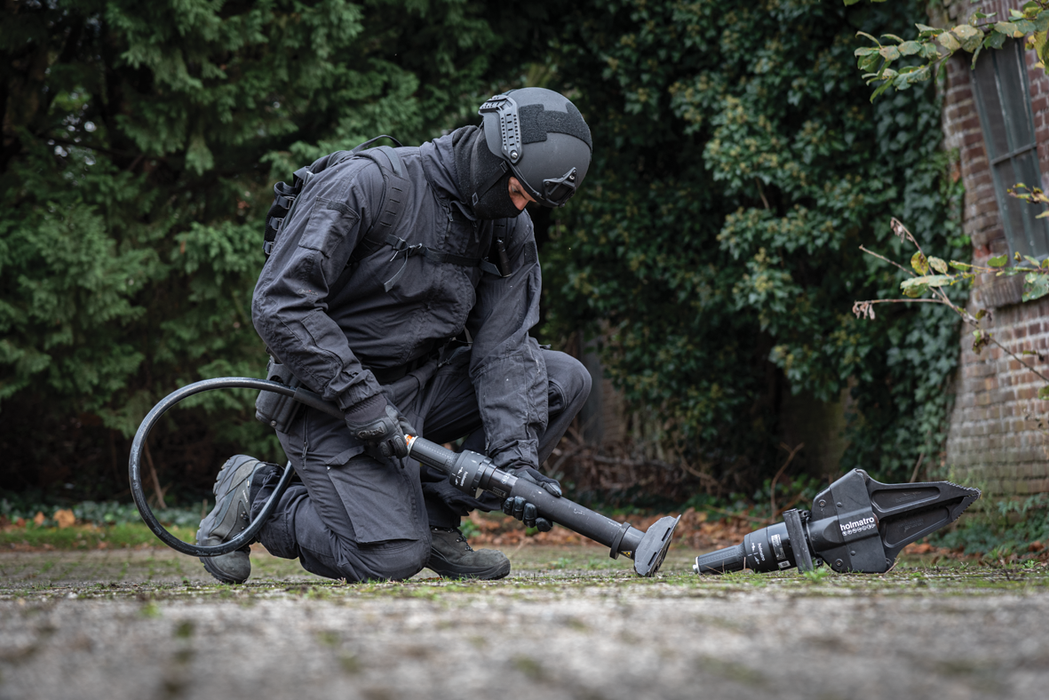

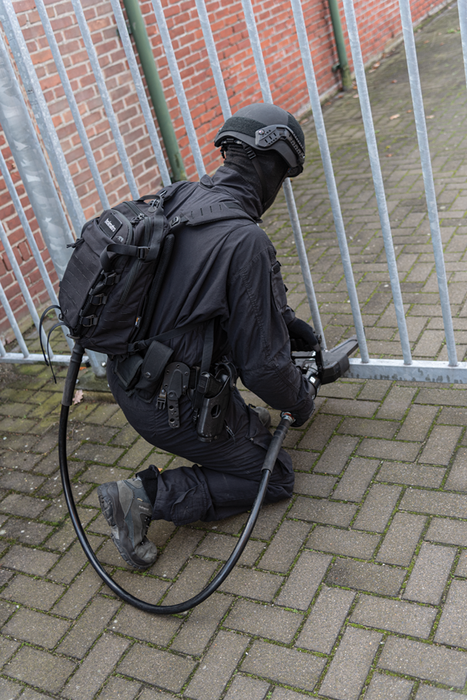

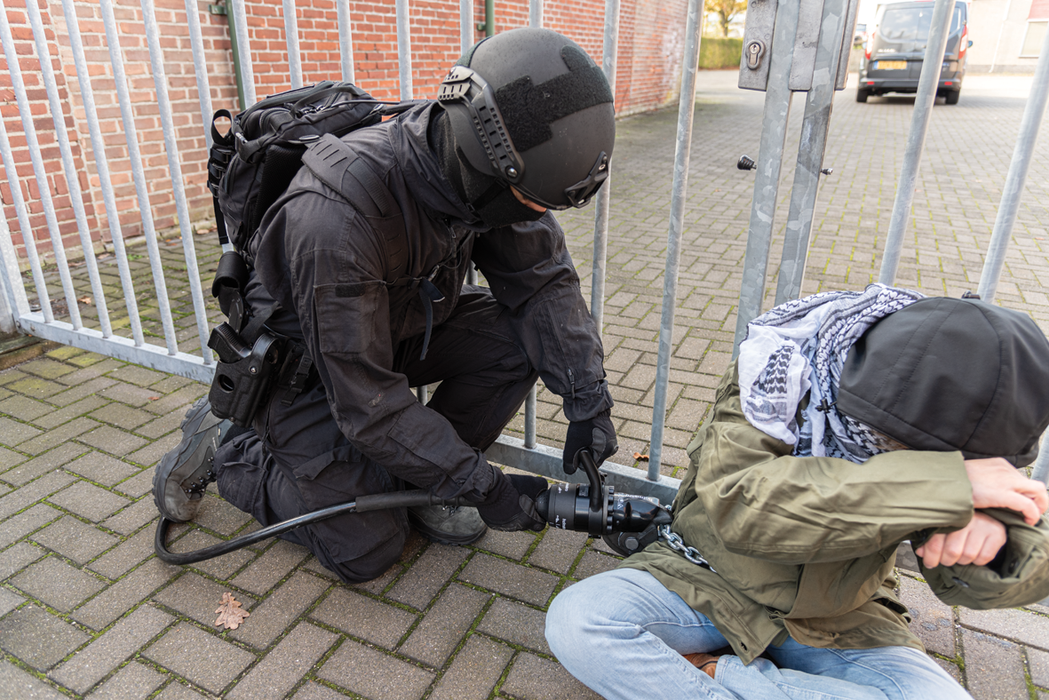

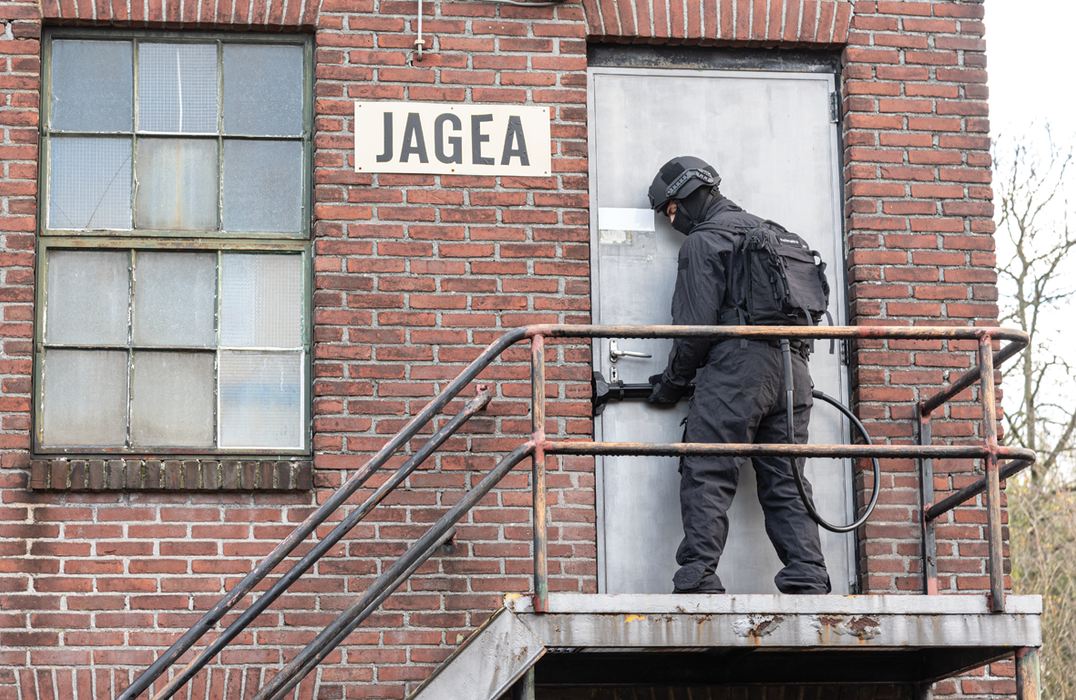

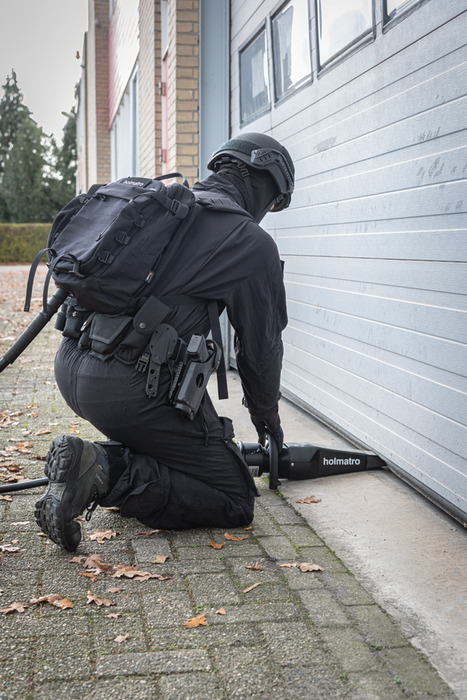

Product Description: Small, lightweight battery-driven pump with a CORE connection, contained in a backpack.

Features & Benefits:

• Very portable: The pump is compact, lightweight and contained in a backpack
• Proven EVO3 technology: Battery used for the pump is the same as is used for all other Holmatro EVO3 tools.
• Large oil content: Pump can be used with all CORE tools except 15t and 22t telescopic rams.
• Safe to use in harsh environments: Thanks to IP 54 rating: Protection against dust and splashing of water
• Emission-free: Ideal for use in confined and/or underground spaces
