FOR LAW ENFORCEMENT, FIRE, EMS, AND MILITARY ONLY.

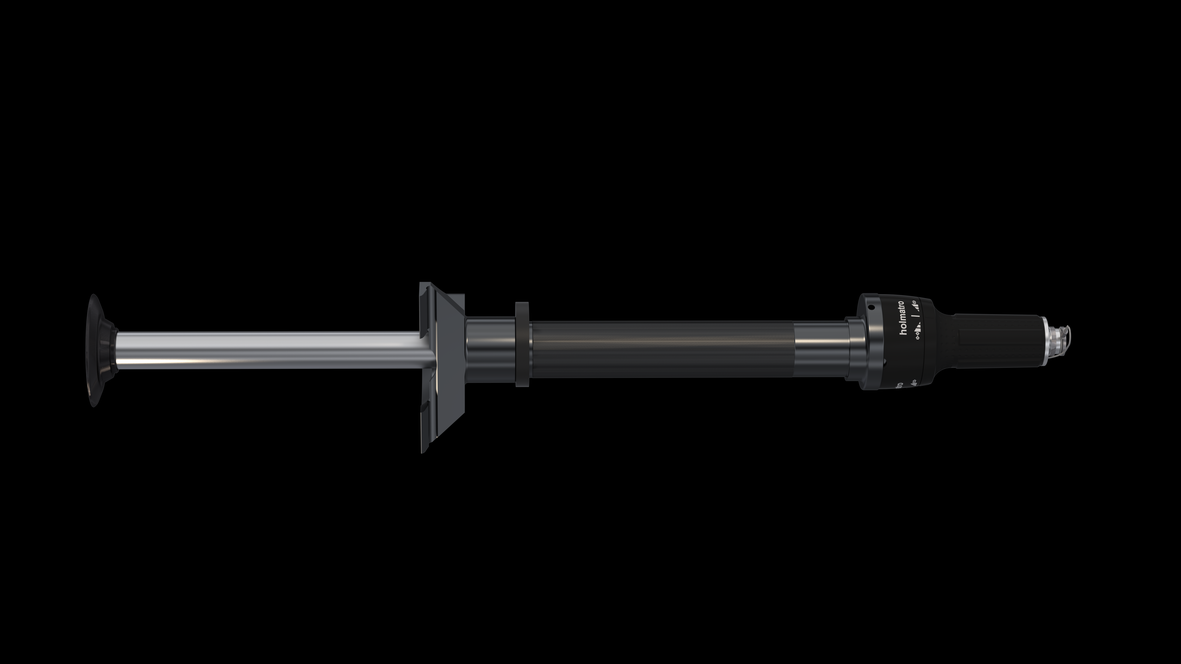

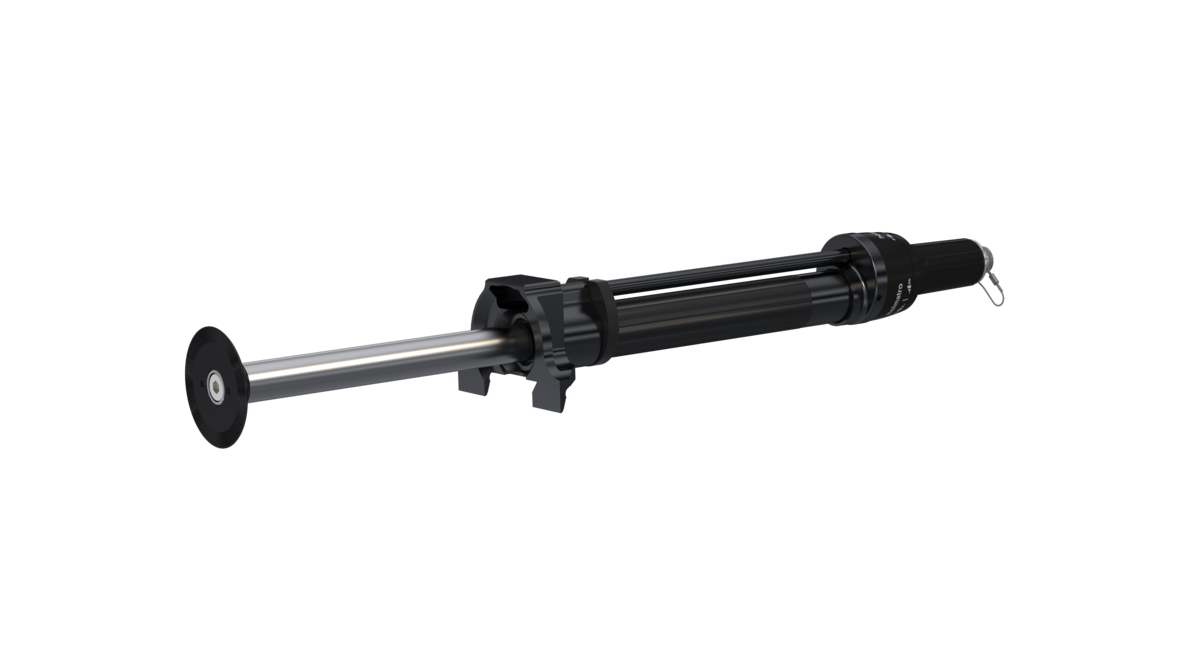

DR200 - Door Ram

Article Number: 151.001.346

Model: DR200

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Keywords: DR200
• Equipped with (connector type): CORE

Performance:

• Spreading stroke: 300 mm (11.8 in)
• Retracted length: 597 mm (23.5 in)
• Extended length: 897 mm (35.3 in)
• Spreading force over full stroke: 15.961 lbf (71 / 7.2 kN/t)
• Directives: 2006/42/EC

General Specifications:

• Required oil content (effective): 265 cc (9 oz)
• Hydraulic oil type: ISO-L HV VG 15/22

Dimensions, Weight and Temperature:

• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 112 x 597 x 160 mm (4.4 x 23.5 x 6.3 in)
• Weight, ready for use (hose connected): 8.5 kg (18.7 lb)
• Weight (without hose): 7.6 kg (16.8 lb)

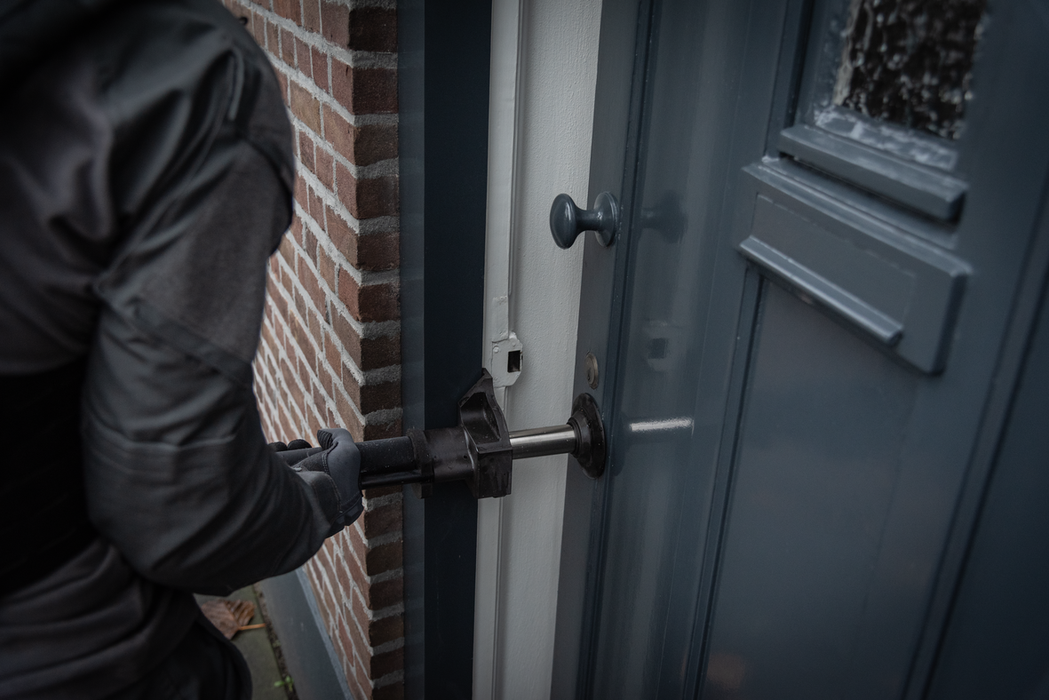

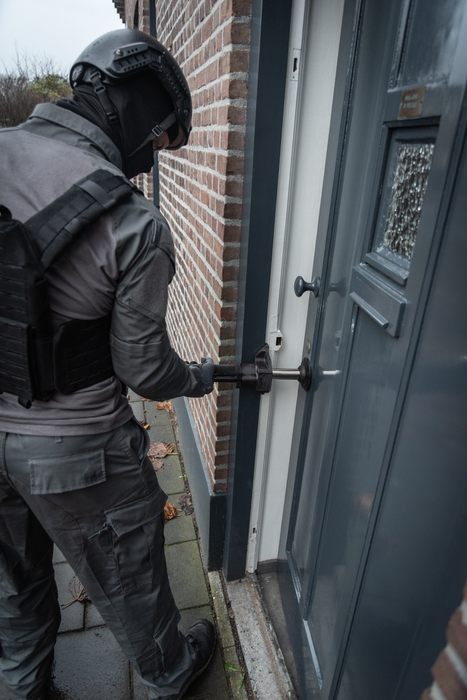

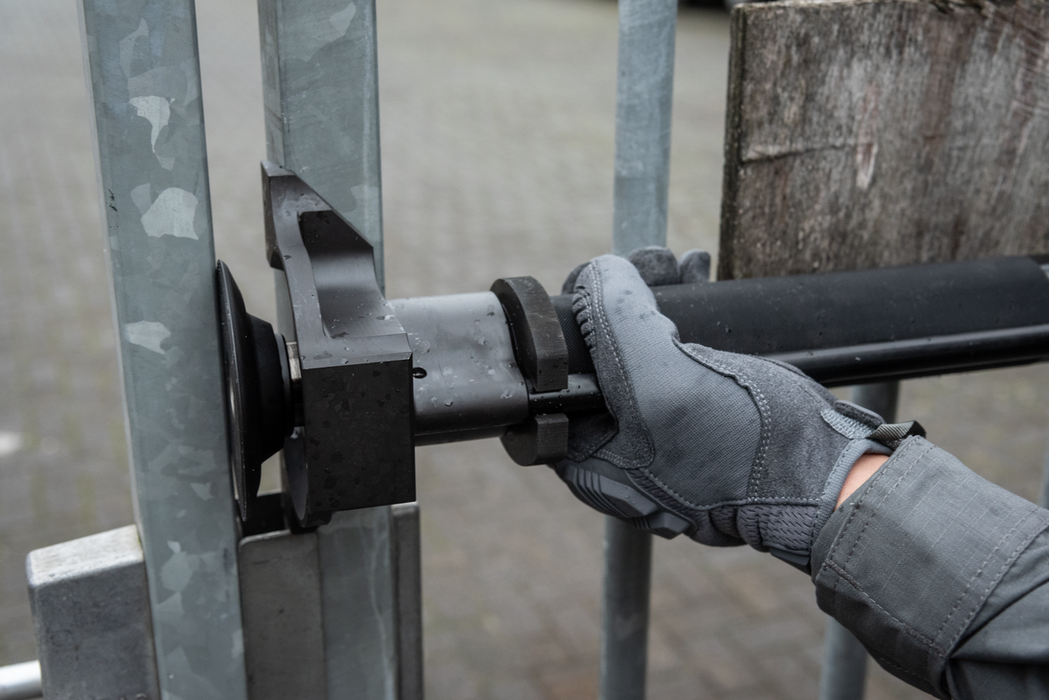

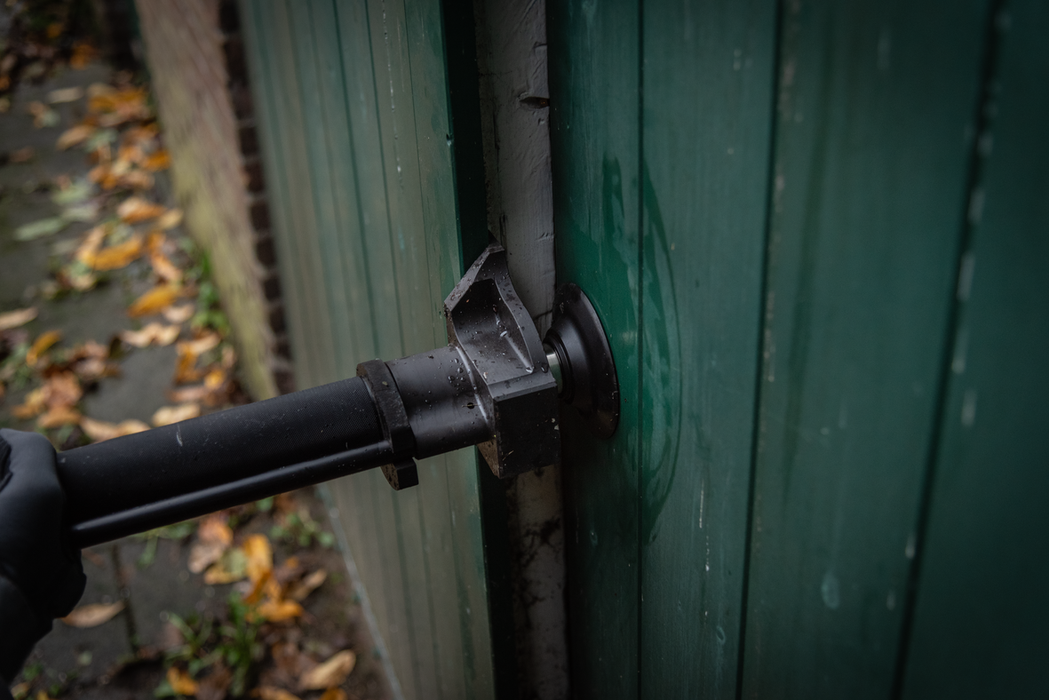

Product Description: Double-acting door ram with a CORE hose connection. Designed for breaching inward opening doors with multiple locks. Also suitable for outward opening doors, when used in combination with a manual breaching tool.

Features & Benefits:

• Highly capable: Thanks to a long spreading stroke even the most flexible doors can be opened; Unlike combi tool style door openers the door ram has a constant high spreading force over its full stroke, to provide full power where you need it
• Ease of placement: With its small toe height the door ram can be easily inserted into the door frame
• Enhanced safety for the operator: The toe is attached at a 90-degree angle to the tool body, so you need not be in front of the door to operate the tool. You can work from a position next to the door, out of harm's way
• One person operation when used with our backpack pump: No need to carry and operate a separate hand pump
• Compact and lightweight: Easy to carry and handle
