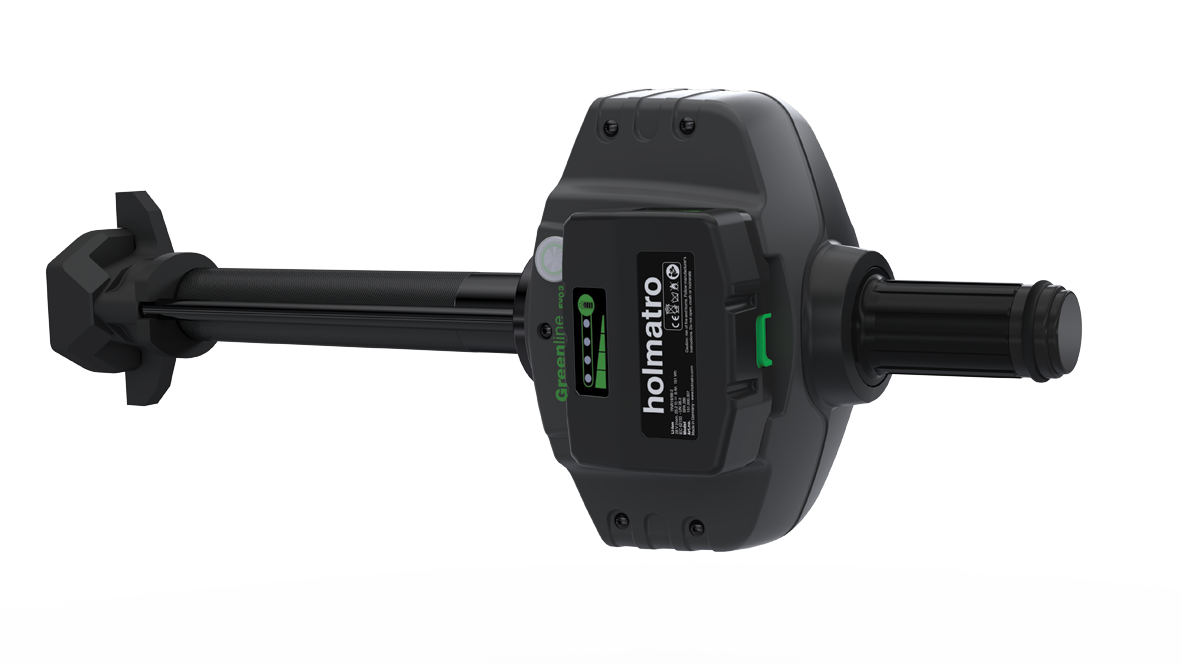

GDR200STEVO3 - Door Ram

Article Number: 151.001.491

Model: GDR200STEVO3

Brand: Holmatro

Basic Specifications:

• Short description: Door Ram
• Max. working pressure: 10443 psi
• Battery included: no

Performance:

• Spreading stroke: 11.8 in
• Retracted length: 28.7 in
• Extended length: 40.5 in
• Spreading force over full stroke: 15961 lbf
• Protection rate: IP54
• Sound emission @ 1m/3.25ft: 74 dB(A)
• Sound emission @ 4m/13ft: 65 dB(A)

General Specifications:

• Operator type: battery
• Hydraulic oil type: ISO-L HV VG 15/22
• Hydraulic safety factor: 2:1
• Endurance test tool: 1000 cycles of spreading while the tool is loaded
• Endurance test dead man’s handle: 6000 cycles

Dimensions, Weight and Temperature:

• Weight, ready for use: 29.5 lb
• Temperature range: -4 +131 °F
• Dimensions (AxBxC): 7.6 x 28.7 x 10.9 in
• Weight (excl. battery): 27.3 lb

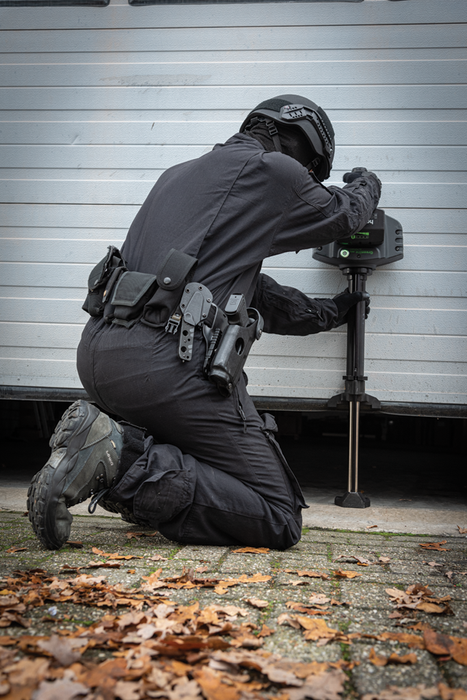

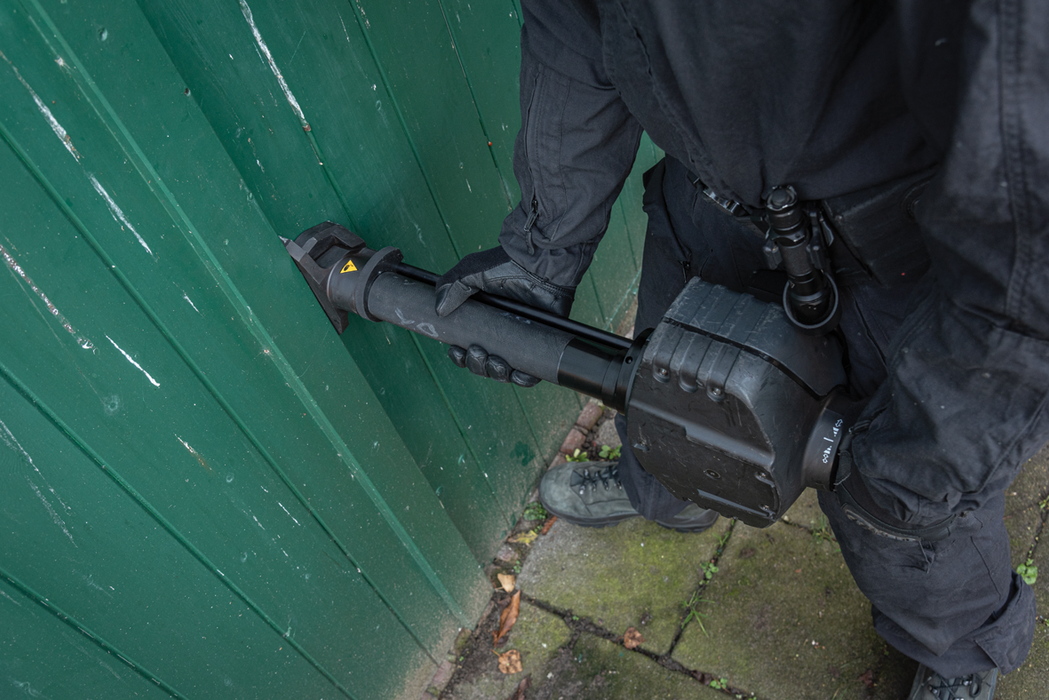

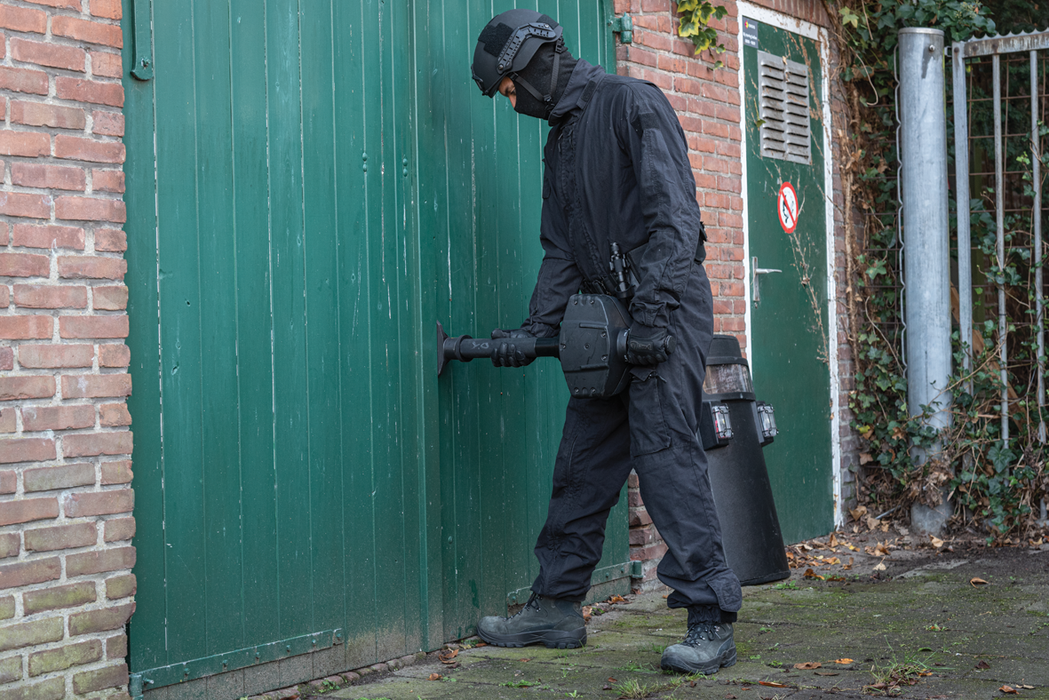

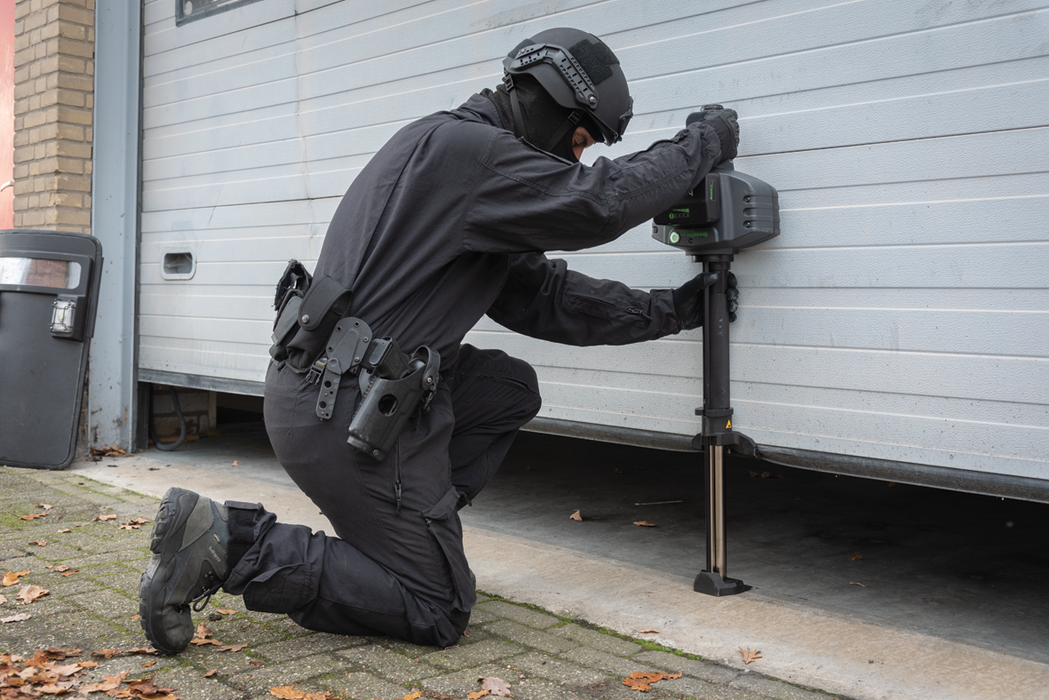

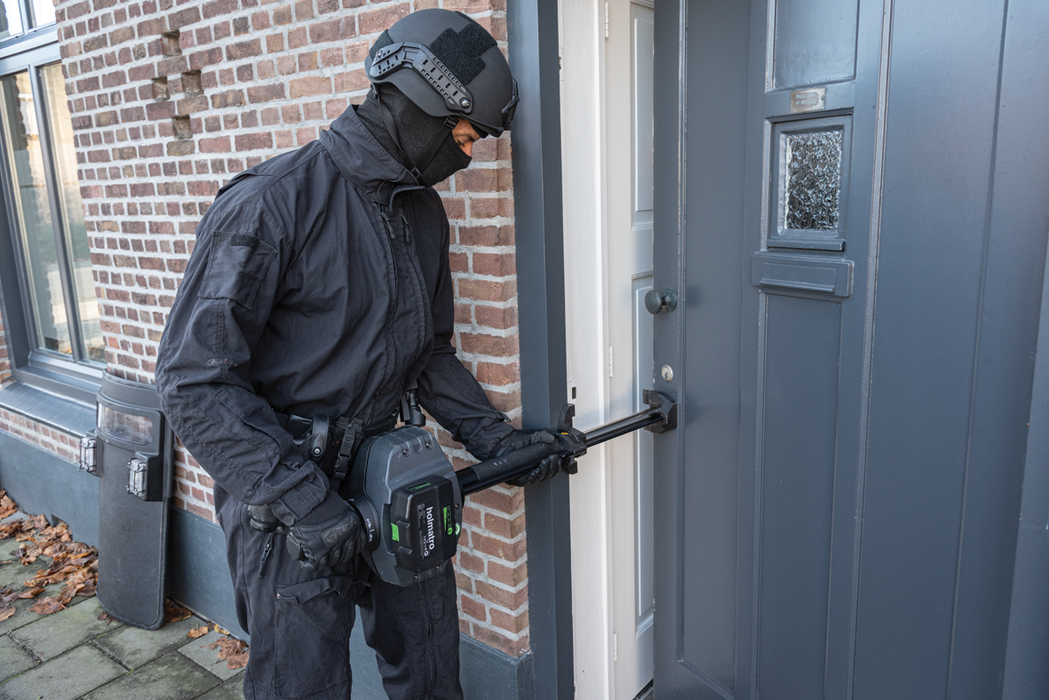

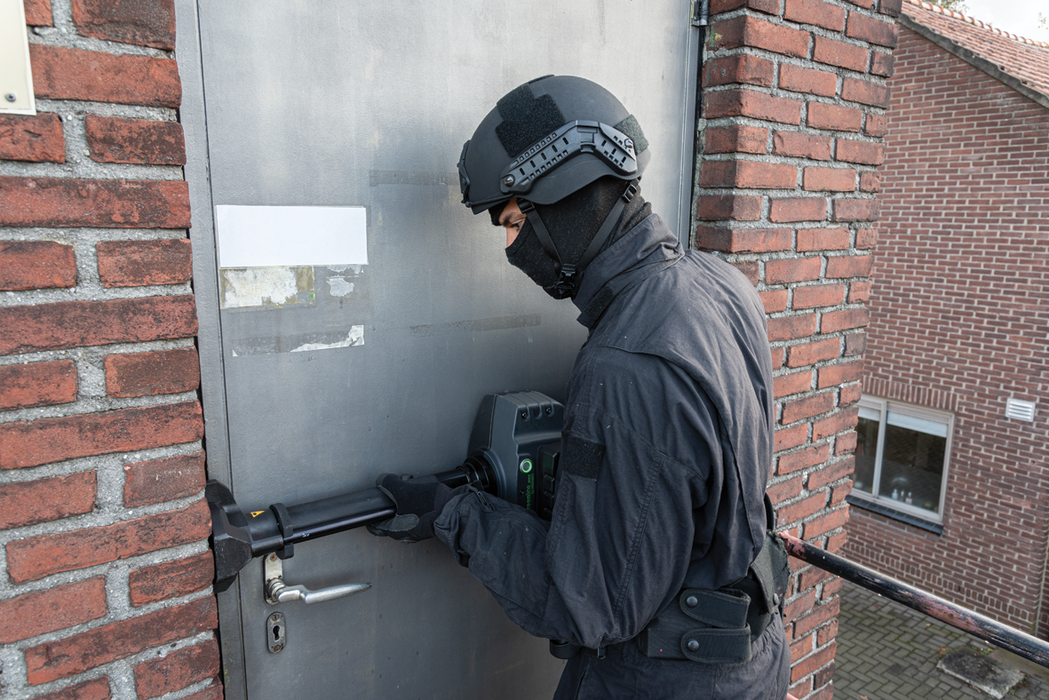

Product Description: Double-acting door ram with a CORE hose connection. Designed for breaching inward opening doors with multiple locks. Also suitable for outward opening doors, when used in combination with a manual breaching tool.

Features & Benefits:

• Highly capable: Thanks to a long spreading stroke even the most flexible doors can be opened; Unlike combi tool style door openers the door ram has a constant high spreading force over its full stroke, to provide full power where you need it

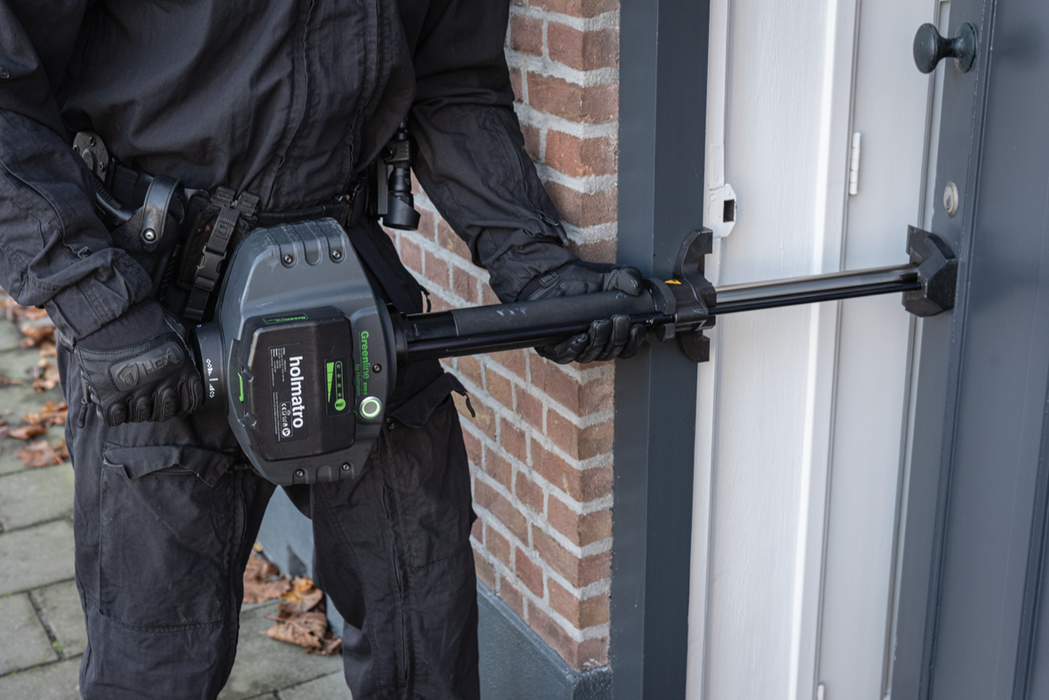

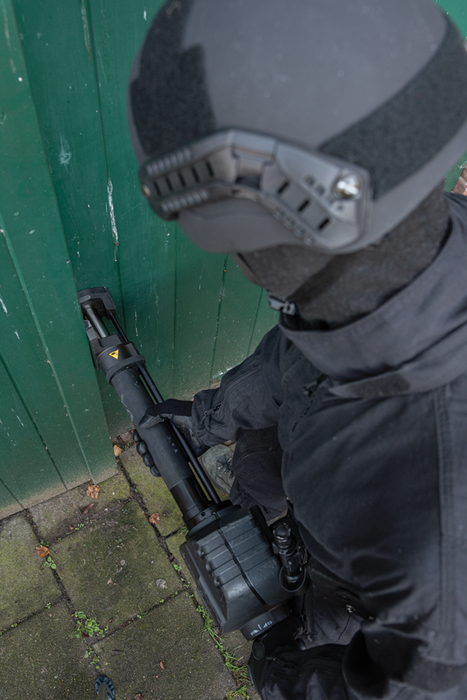

• Ease of placement: With its small toe height the door ram can be easily inserted into the door frame

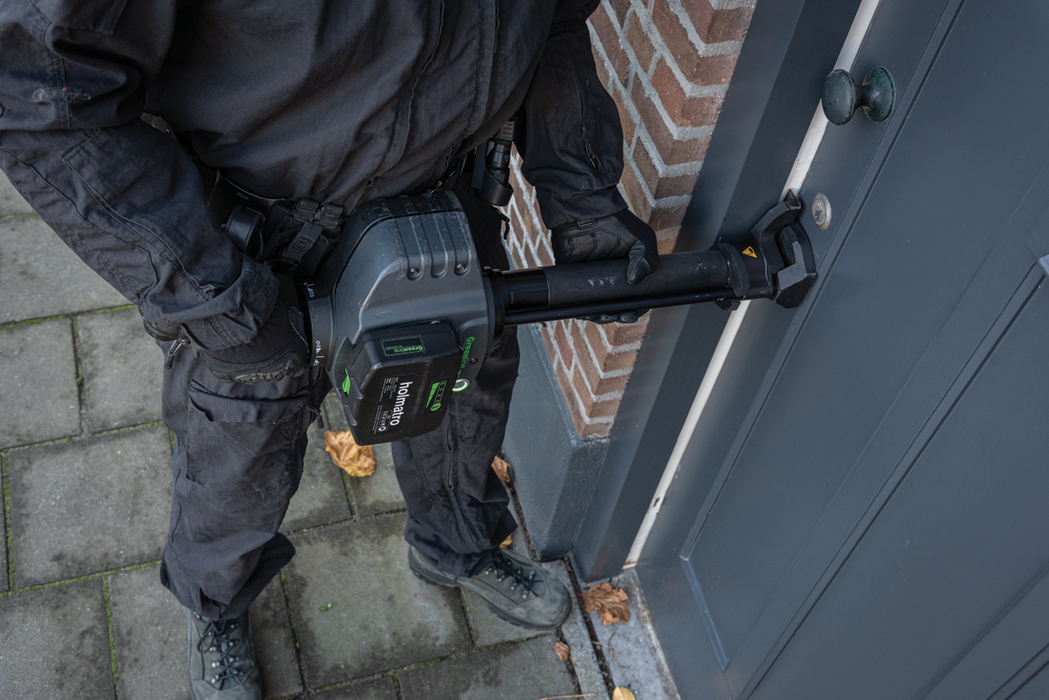

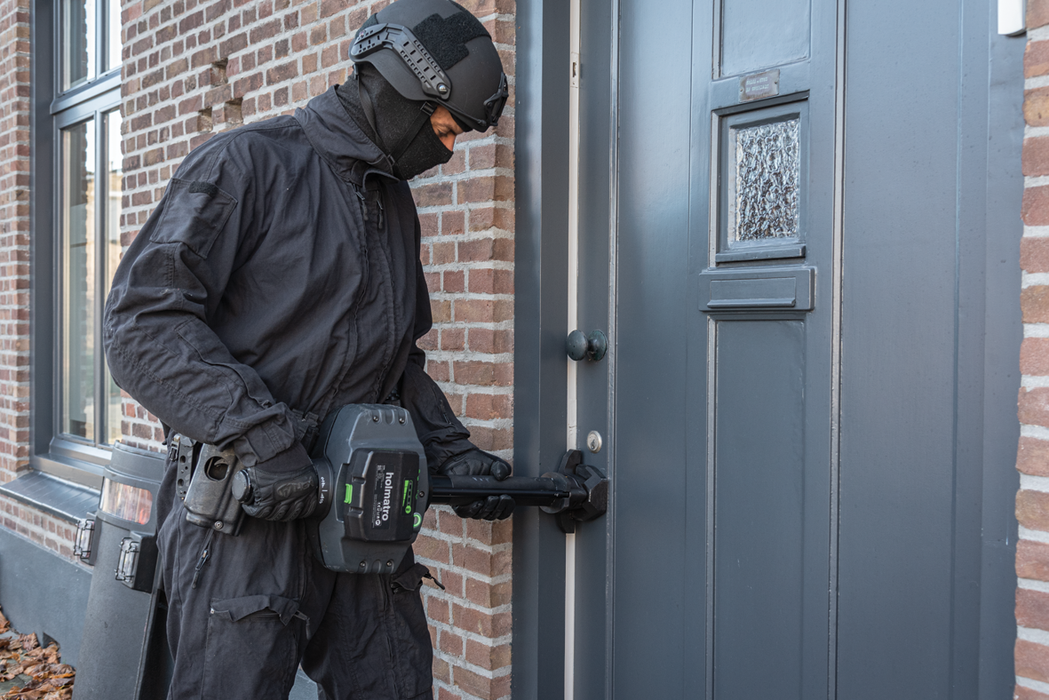

• Enhanced safety for the operator: The toe is attached at a 90-degree angle to the tool body, so you need not be in front of the door to operate the tool. You can work from a position next to the door, out of harm's way
• One person operation when used with our backpack pump: No need to carry and operate a separate hand pump

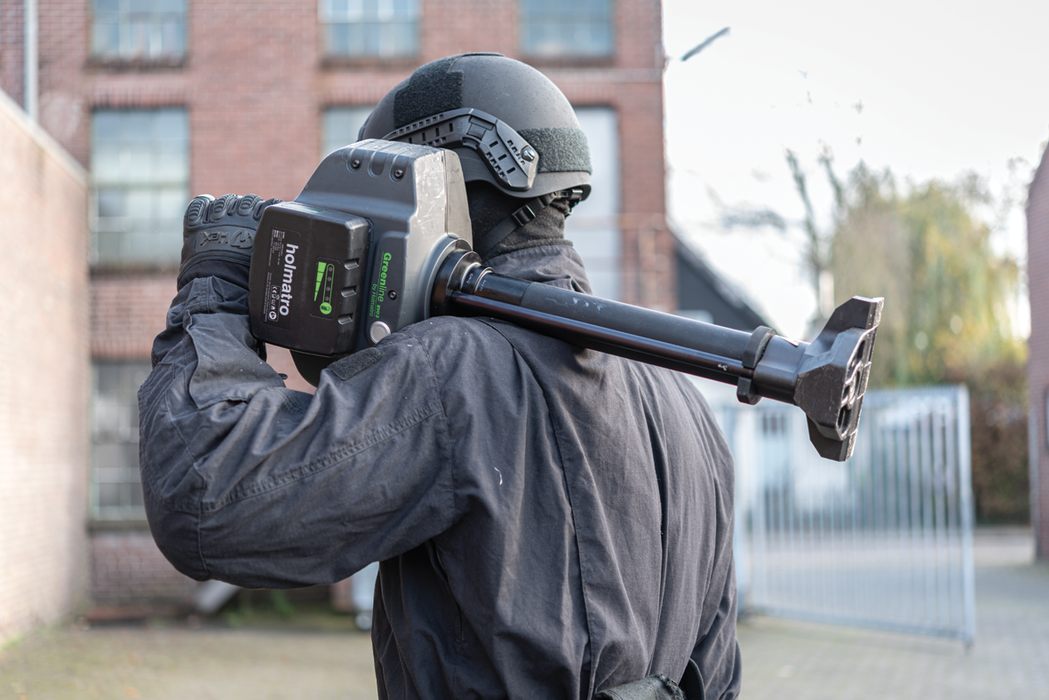

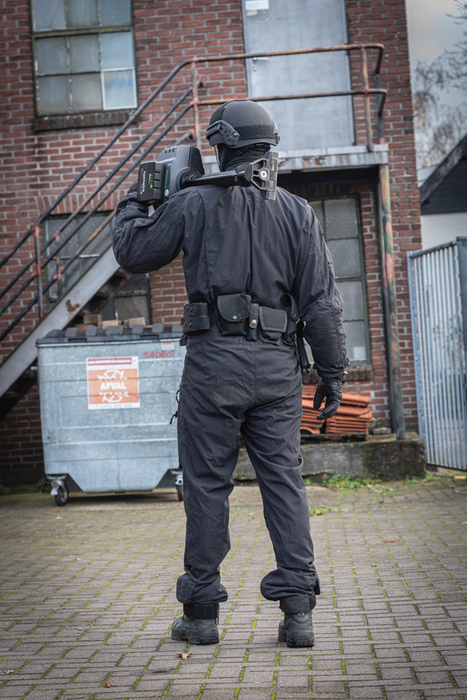

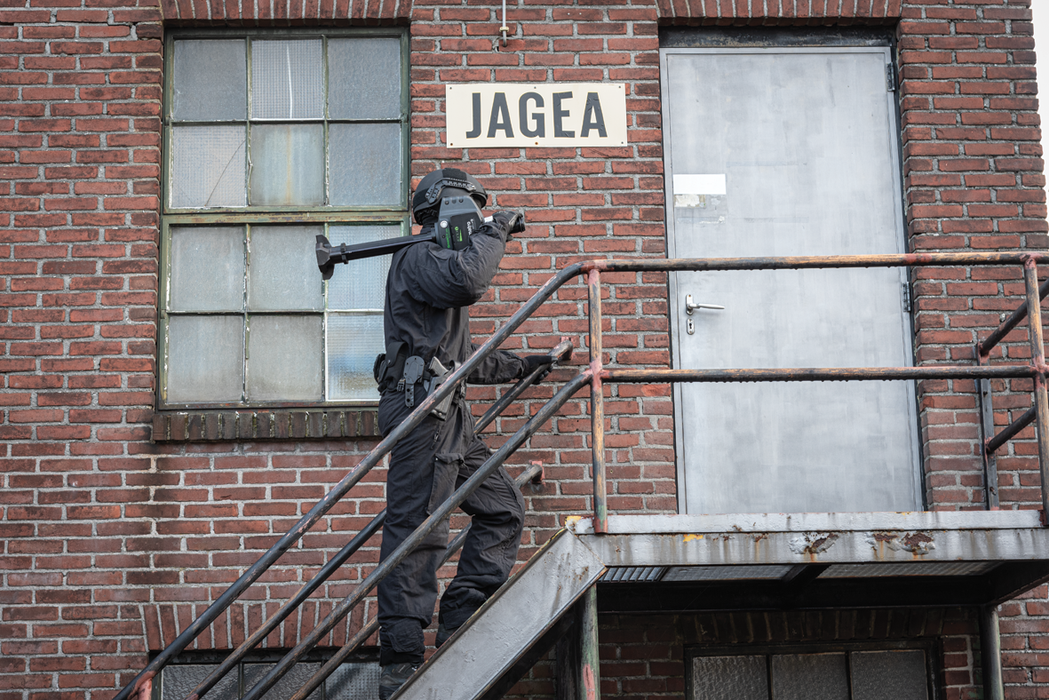

• Compact and lightweight: Easy to carry and handle
• Required Accessories: Greenline Battery Charger BCH1 EU 150.182.208; Greenline Battery Charger BCH2 150.182.209; Greenline Battery Charger BCH3 150.182.286; Greenline Battery BPA286 151.000.307
• Accessories: Mains Power Connector BMC1 150.182.206; Mains Power Connector BMC2 150.182.207; Battery Pouch 150.182.214; Carrying Harness 150.553.115
