HCT5114ST - Hand-Powered Combi Tool

Article Number: 151.000.580

Model: HCT 5114 ST

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Keywords: HCT5114ST

Performance:

• Spreading distance: 362 mm (14.3 in)
• Max. cutting opening: 277 mm (10.9 in)
• Max. spreading force: 303.492 lbf (1350 / 137.7 kN/t)
• Min. spreading force (EN 13204): 7.419 lbf (33 / 3.4 kN/t)
• Theoretical calculated spreading force: 166.359 lbf (740 / 75.5 kN/t)
• Theoretical cutting force: 60.249 lbf (268 / 27.3 kN/t)
• Max. squeezing force: 7.644 lbf (34 / 3.5 kN/t)
• Directives: 2006/42/EC

General Specifications:

• Operator type: hand
• Hydraulic safety factor: 2:1
• Endurance test tool: 1000 cycles of spreading while the tool is loaded and 1000 cycles of biting in material that cannot be cut
• EN 13204 compliant: yes
• EN 13204 classification: BK33/362-E-9.1
• EN 13204, cutting capacity: 1E 2E 3E 4E 5E
• NFPA 1960, cutting capacity: A5 B5 C5 D6 E4 F3
• NFPA 1960, HSF: 40 kN (4.1 t, 8.992 lbf, 40 / 4.1 kN/t)
• NFPA 1960, LSF: 30 kN (3.1 t, 6.744 lbf, 30 / 3.1 kN/t)
• Cutting performance round bar (S235 acc. to EN 13204): 24 mm (0.9 in)

Dimensions, Weight and Temperature:

• Weight, ready for use: 9.1 kg (20.1 lb)
• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 583 x 218 x 145 mm (23 x 8.6 x 5.7 in)

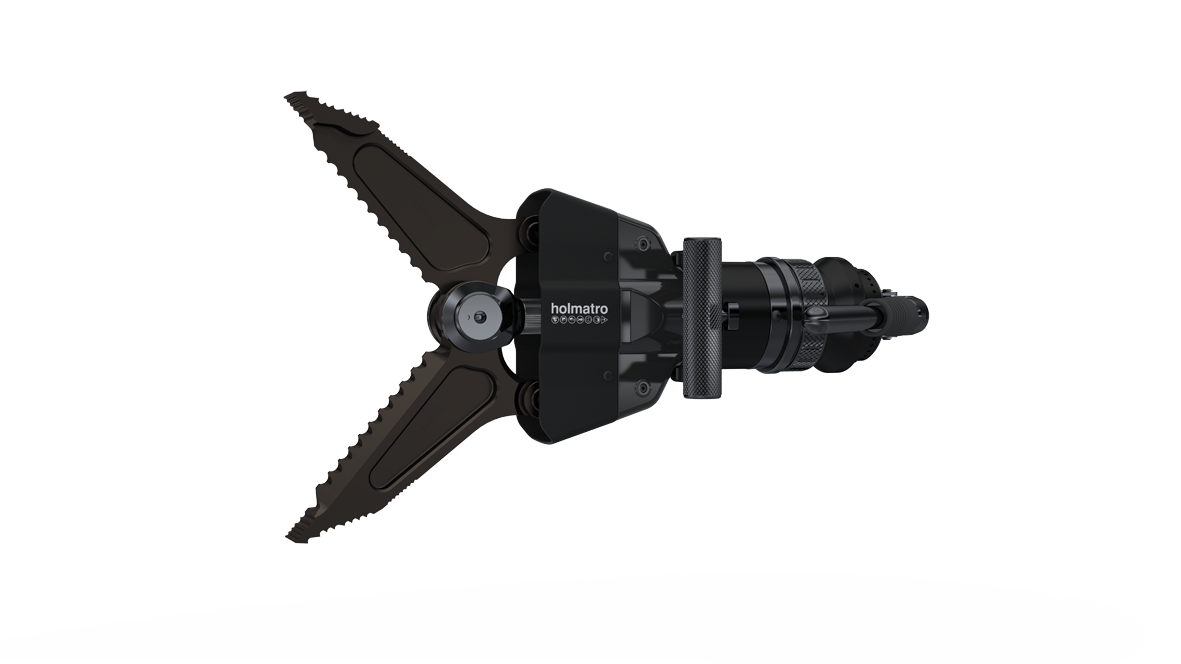

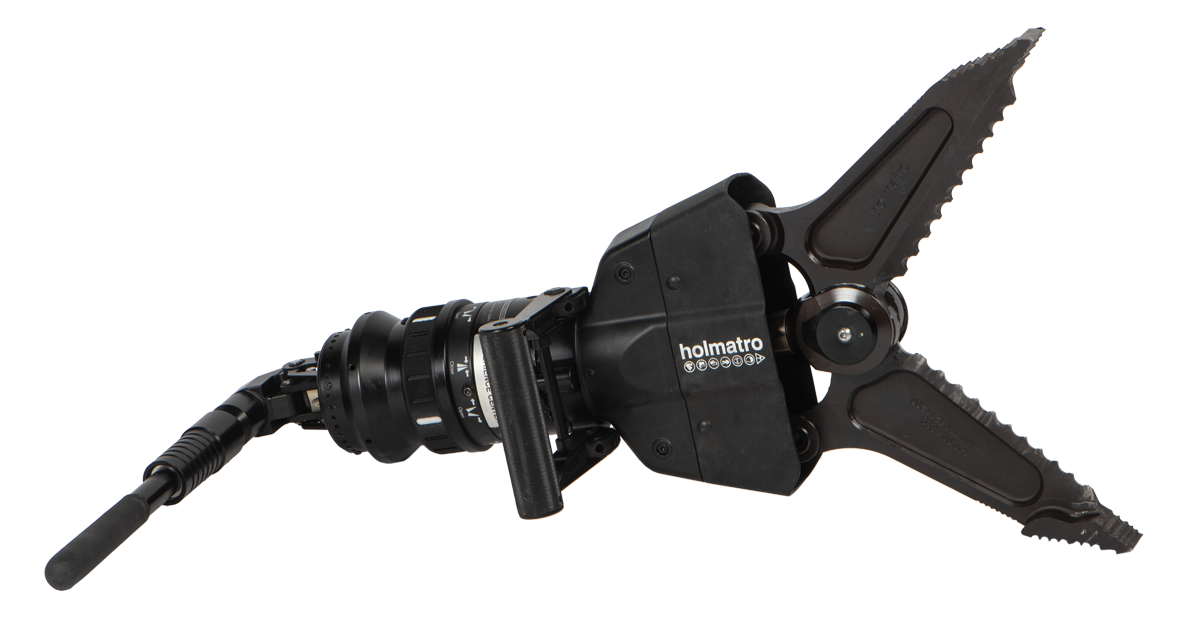

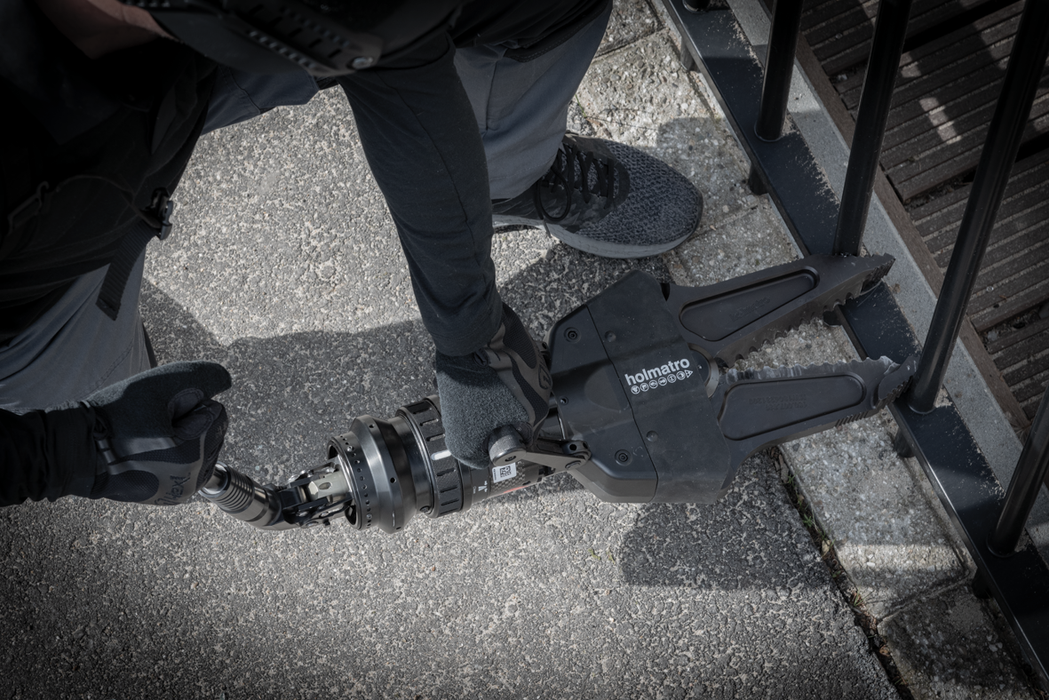

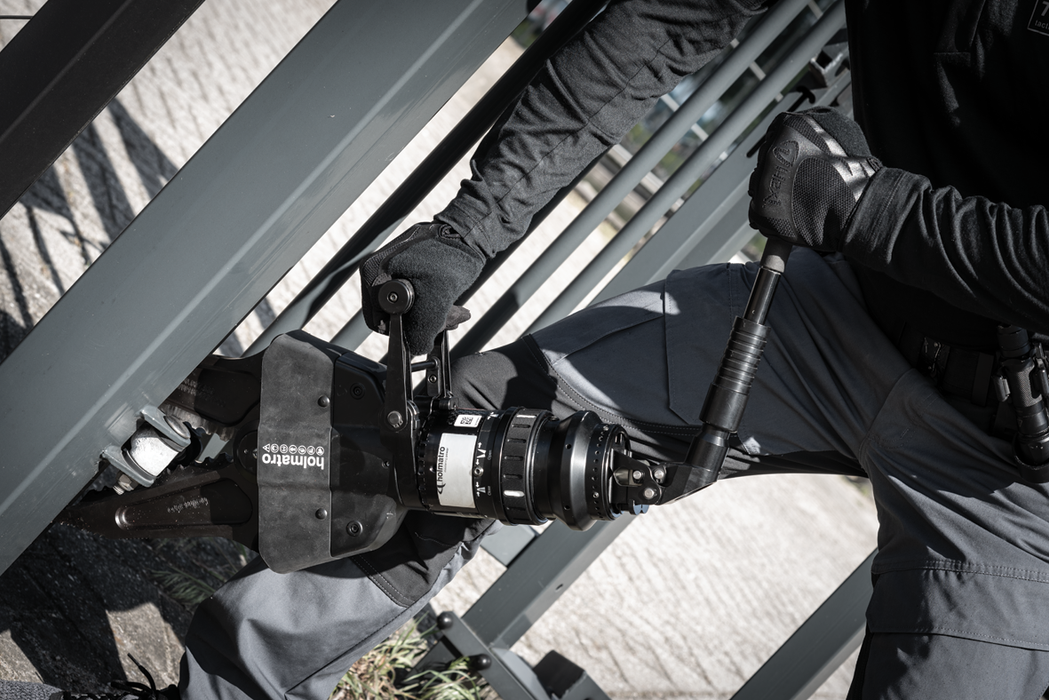

Product Description: Hand-powered tool that enables spreading, cutting and squeezing.

Features & Benefits:

• Extremely compact & ultra-lightweight: Easy to add to your existing kit; Easy to carry, transport and store; Suitable for airborne operations; Carrying handle and pump handle 90° foldable for extra compactness

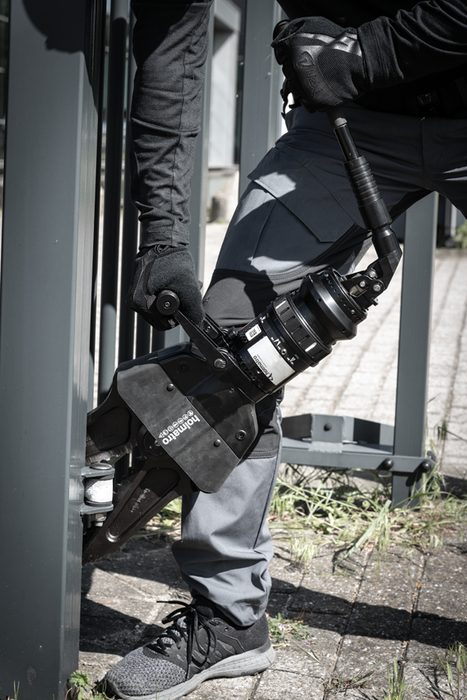

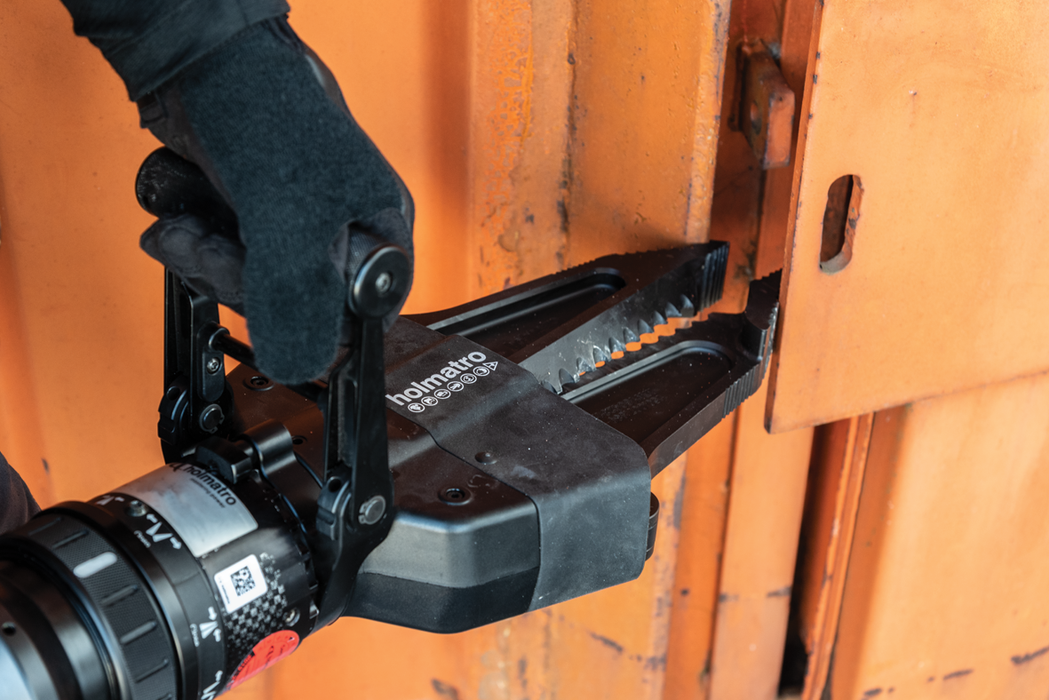

• Multifunctional: Suitable for both cutting and spreading; Suitable for dive operations / under water use; Suitable for a variety of applications, ranging from forcible entry to extrication of persons trapped
• Integrated 2-stage hand pump: For low noise operations; Self-contained for optimal freedom of movement; Rapid deployment; Easy operation: Simply fold out the pump handle and start pumping
• Optimal performance to weight ratio: Very high spreading force and large spreading distance compared to size and weight; High cutting force and large cutting opening compared to size and weight
• 360° rotatable carbon fibre pump handle: Can be locked in 22 positions; For use of the tool in almost any position
• 360° rotatable aluminium carrying handle: Continuous swivel with 11 locking positions; For use of the tool in almost any position
• Non-slip selection ring: Easy, intuitive selection of spreading or cutting; Offers good grip
• Equipped with i-Bolt: Flat central bolt construction for better access to narrow spaces; Squeezes the blades together directly, which results in less blade separation and a better cutting performance
• Standard supplied with: i-Bolt technology; 360° rotatable pump handle; 360° rotatable carrying handle; Fold flat pump and carrying handles
