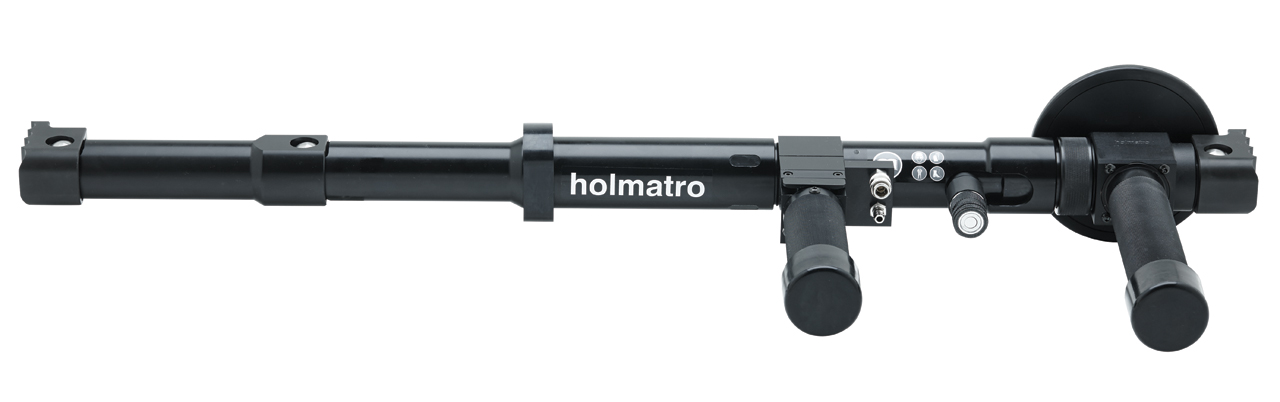

HDB90ST - Door Blaster

Article Number: 150.006.850

Model: HDB 90 ST

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Keywords: HDB90ST

Performance:

• Max. spreading force: 11.465 lbf (51 / 5.2 kN/t)
• Spreading stroke: 40 mm (1.6 in)
• Pushing stroke: 200 mm (7.9 in)
• Max. pushing force: 8.543 lbf (38 / 3.9 kN/t)

General Specifications:

• Required oil content (effective): 135 cc (4.6 oz)
• Hydraulic system: single acting

Dimensions, Weight and Temperature:

• Weight, ready for use: 10.8 kg (23.8 lb)
• Temperature range: -20 + 55 °C (-4 + 131 °F)
• Dimensions (AxBxC): 760 x 300 x 85 mm (29.9 x 11.8 x 3.3 in)
• Min. length incl. grip heads: 760 mm (29.9 in)
• Hydraulically extendible: 130 mm (5.1 in)
• Max. length excl. extension pieces: 930 mm (36.6 in)
• Max. length incl. extension pieces: 1.230 mm (48.4 in)

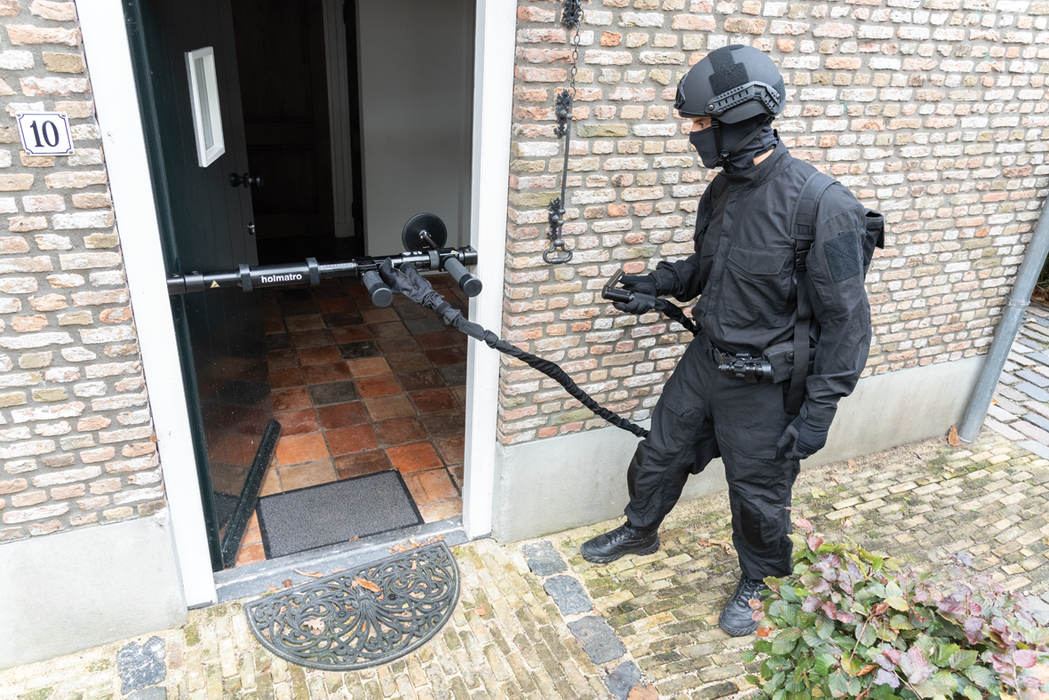

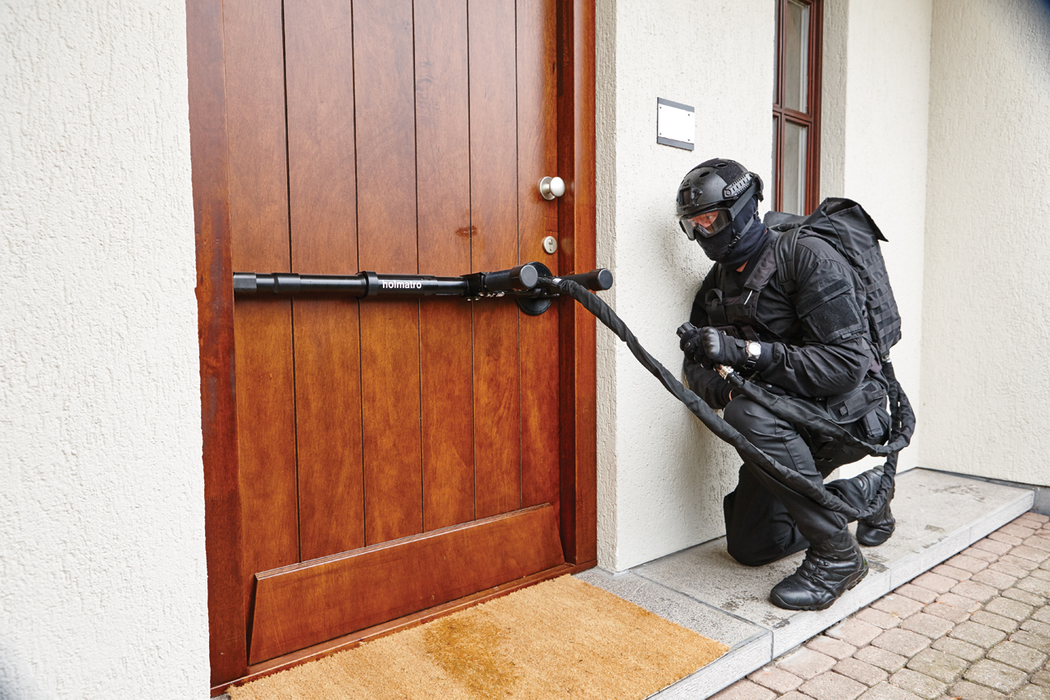

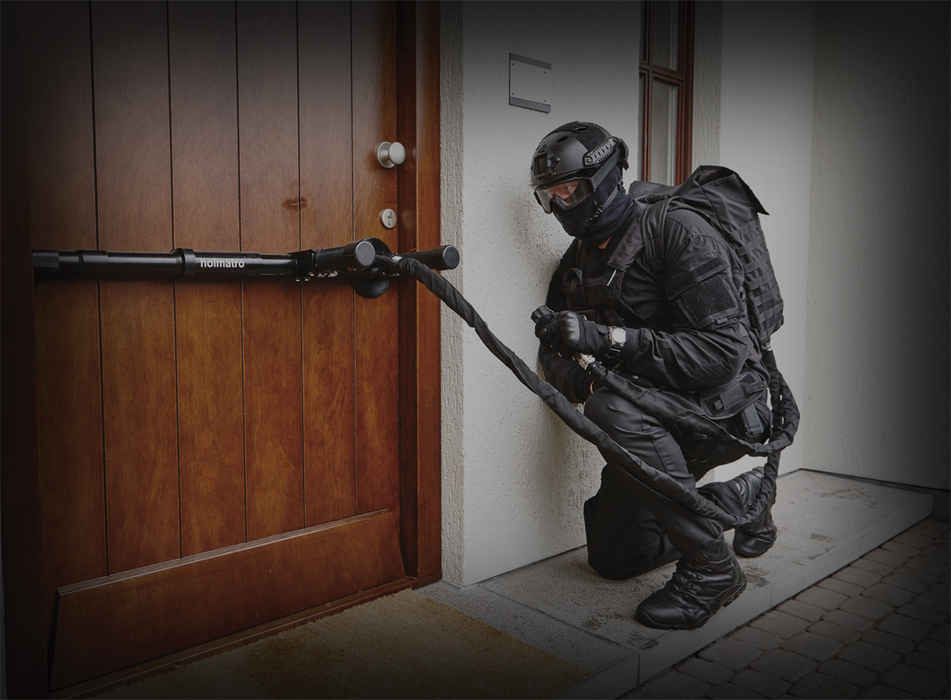

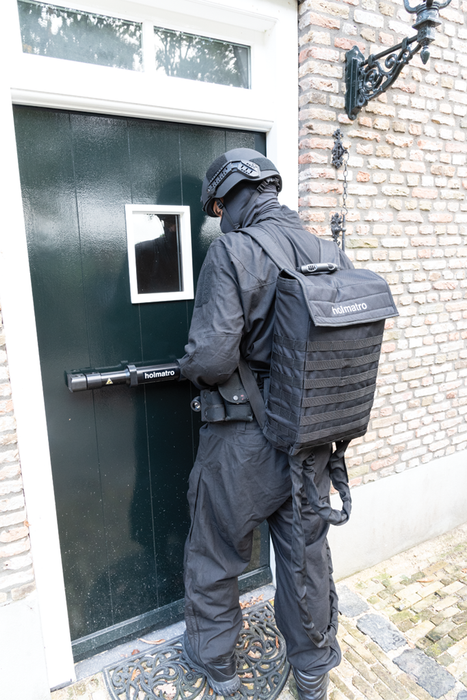

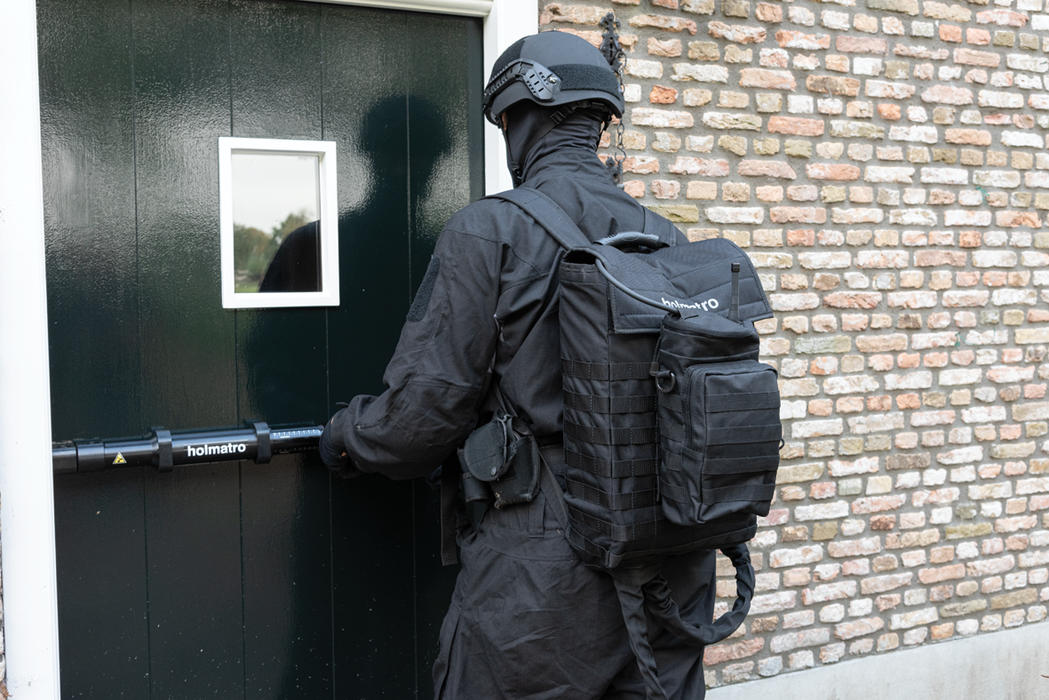

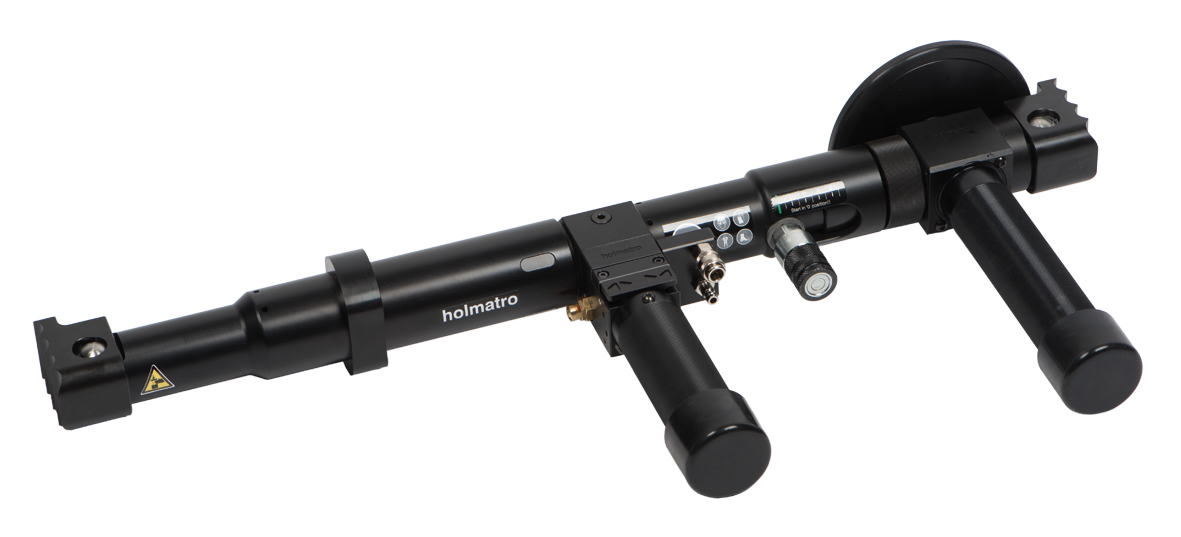

Product Description: Door opener for extremely fast door breaching. Designed for quiet and remote operation.

Features & Benefits:

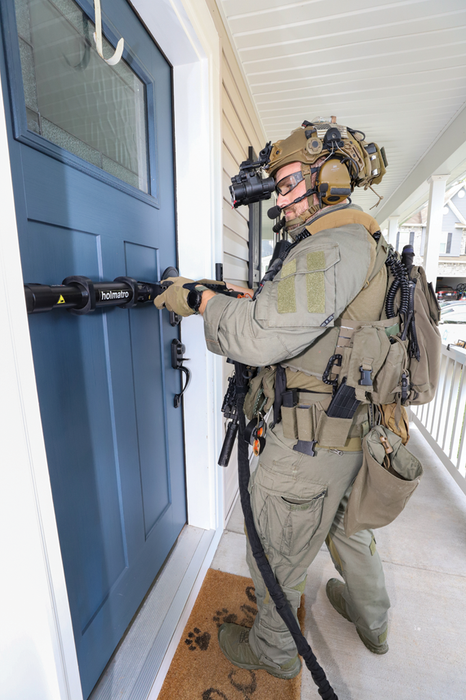

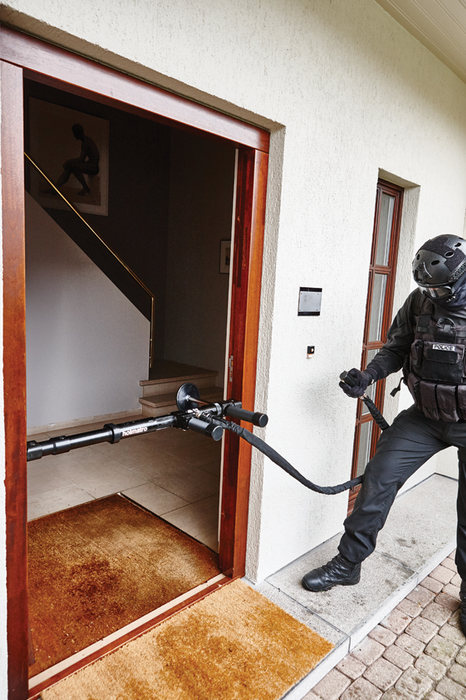

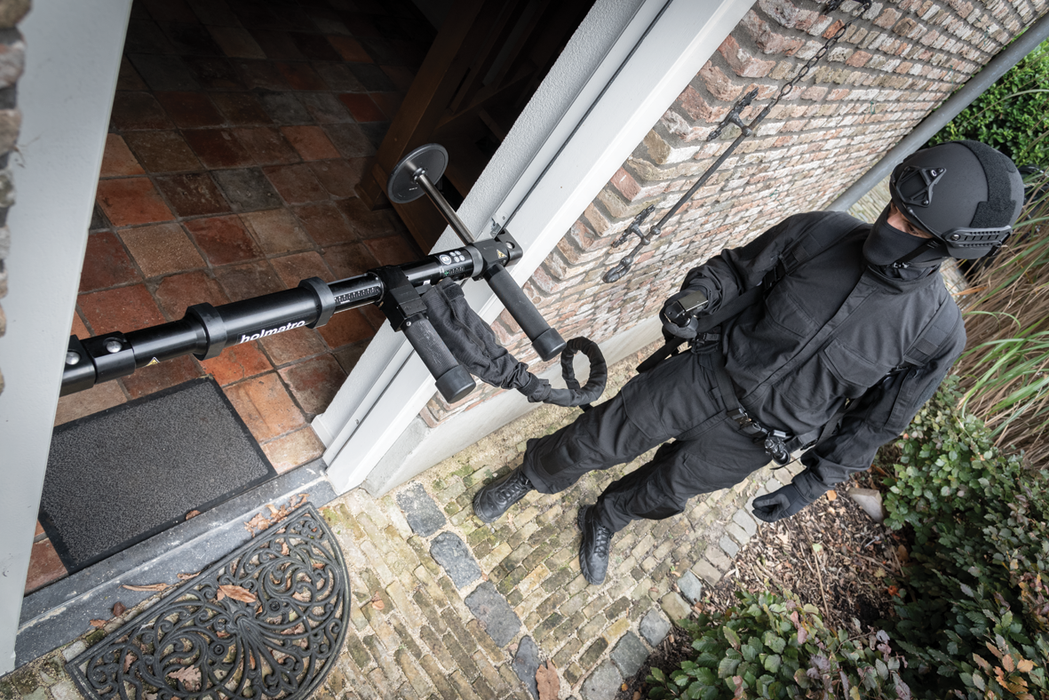

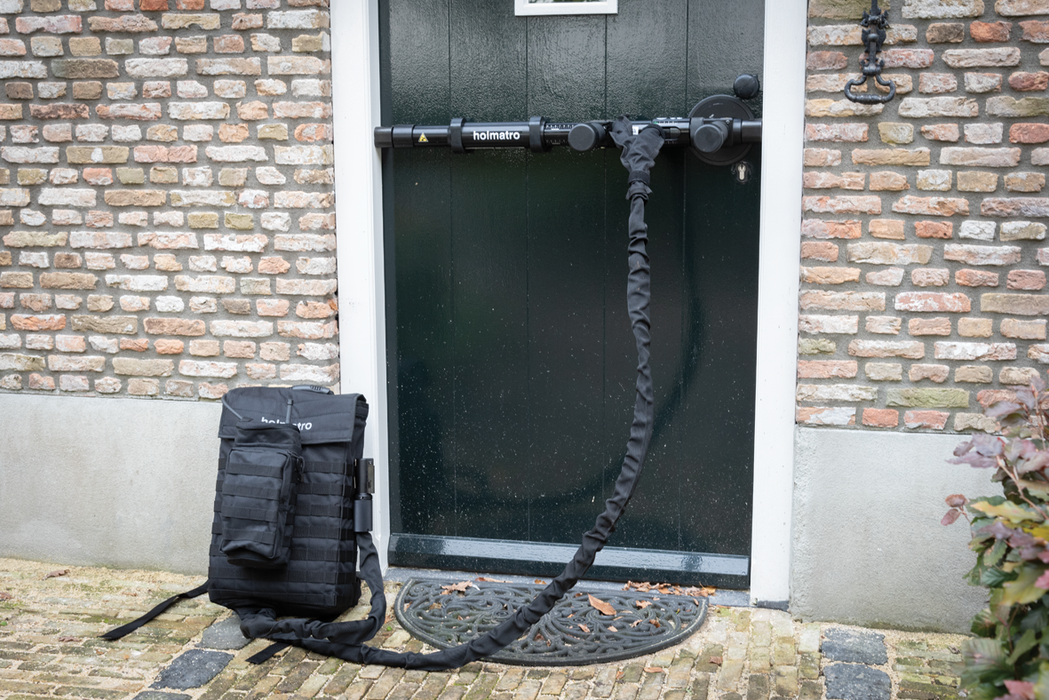

• Powerful: Suitable for use on high-resistance, multiple lock, inward opening doors
• Extremely fast and quiet operation: As fast as explosives, without flying debris; Opens a door in seconds; Pneumatic-hydraulic drive: no sound from the pump

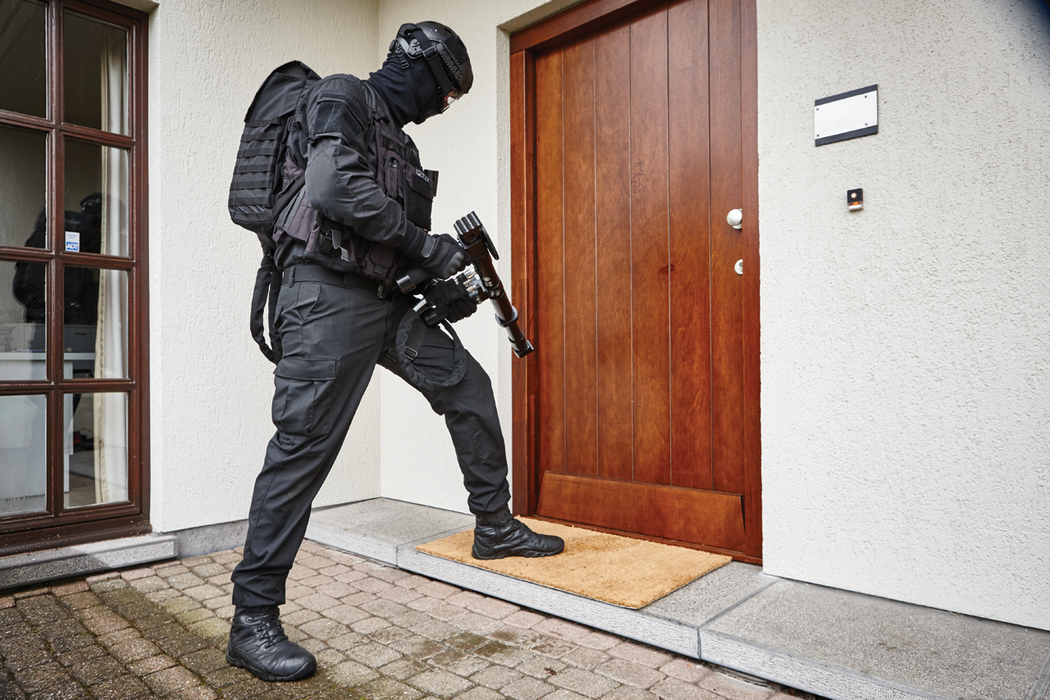

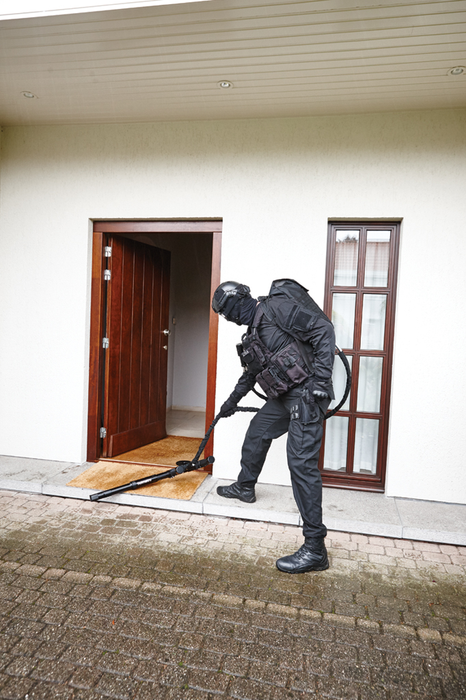

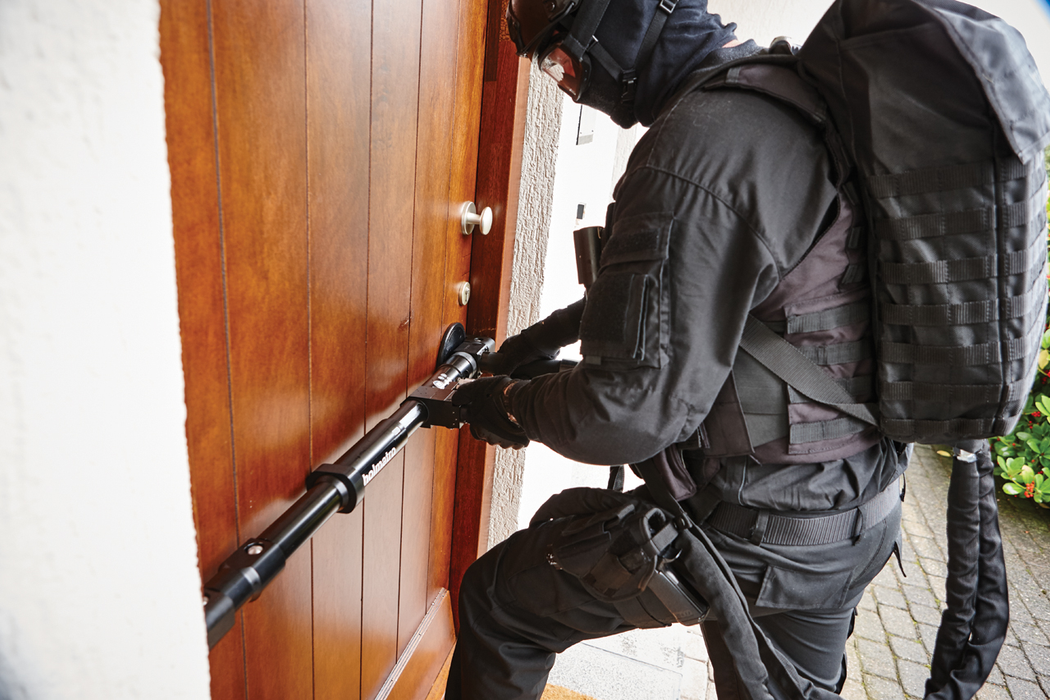

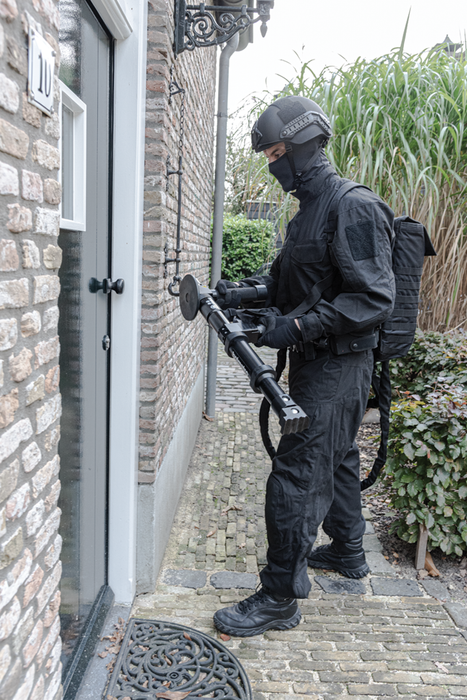

• Lightweight with compact dimensions: Carrying, installation and operation by one person; saves manpower; Limits risk of making noise by knocking into things

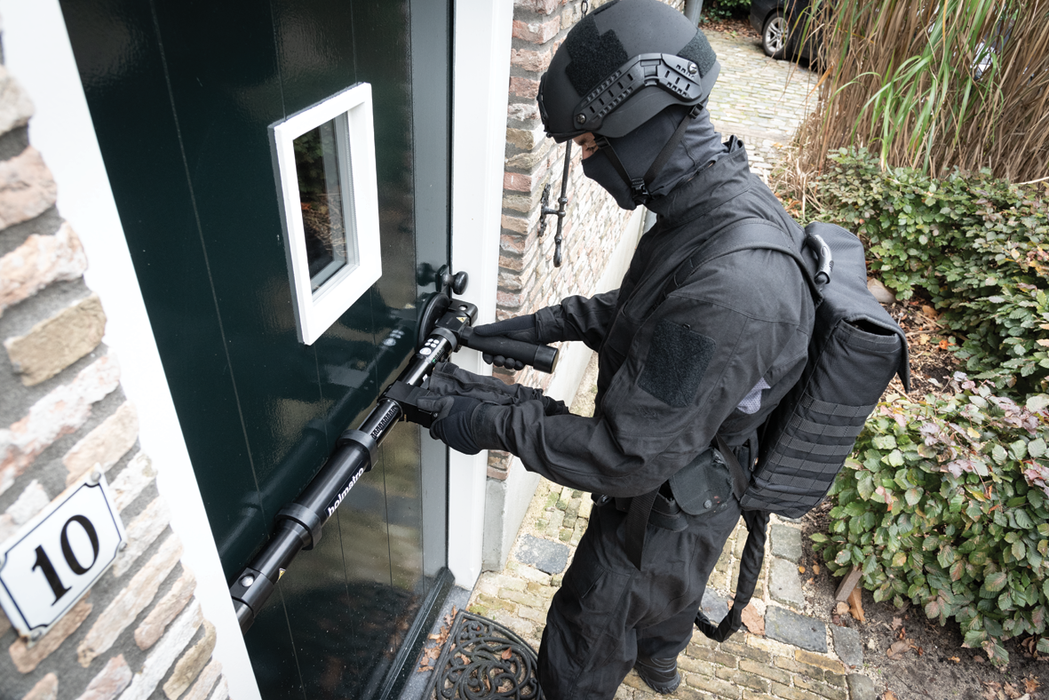

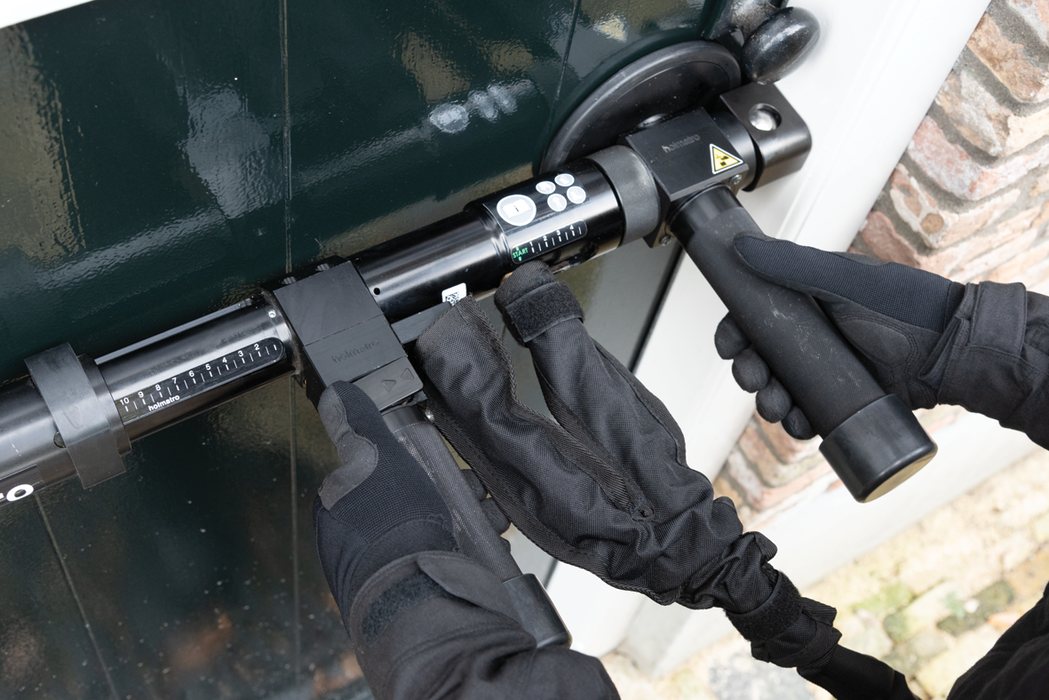

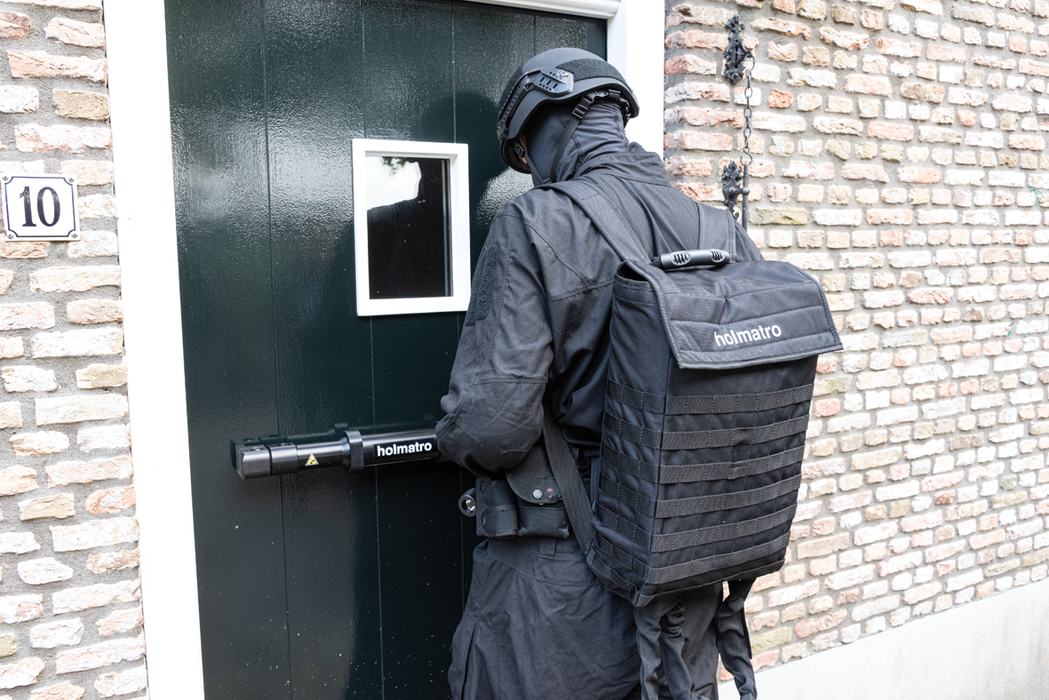

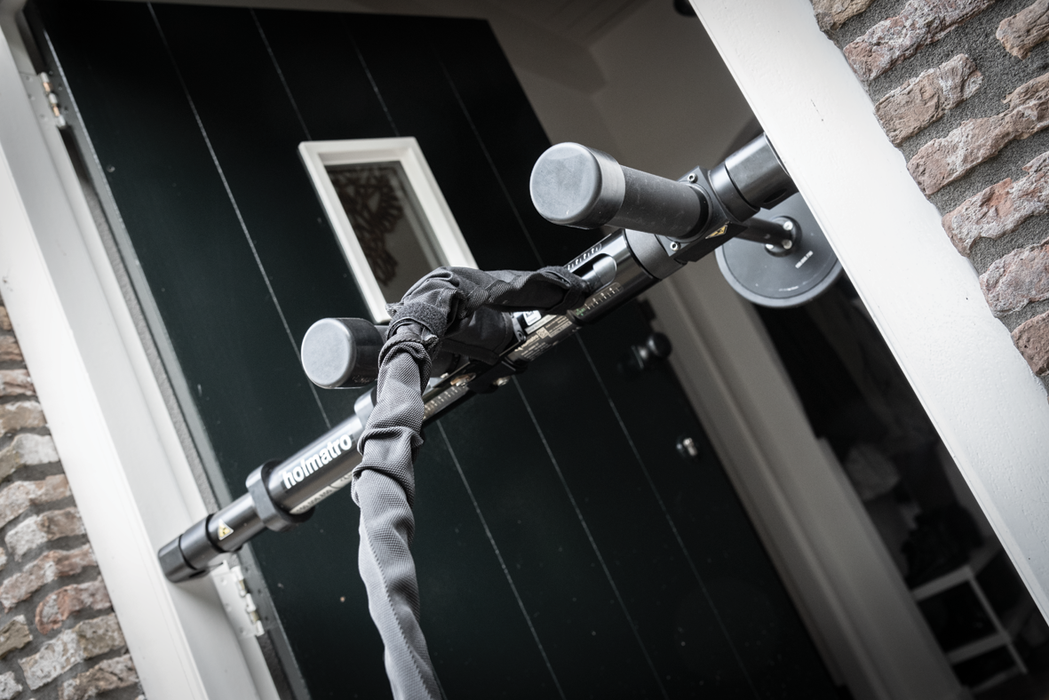

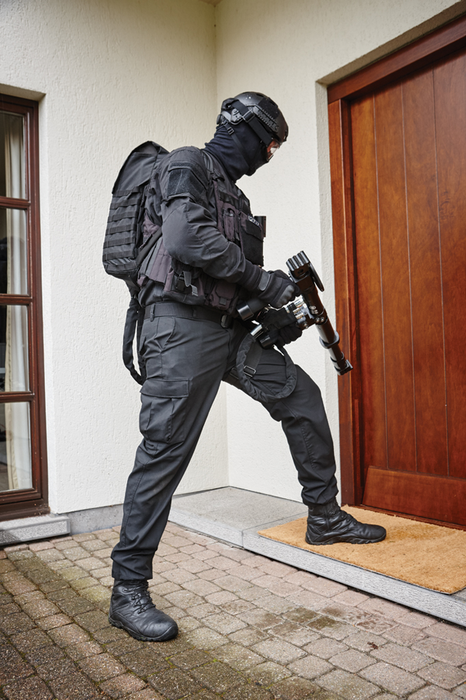

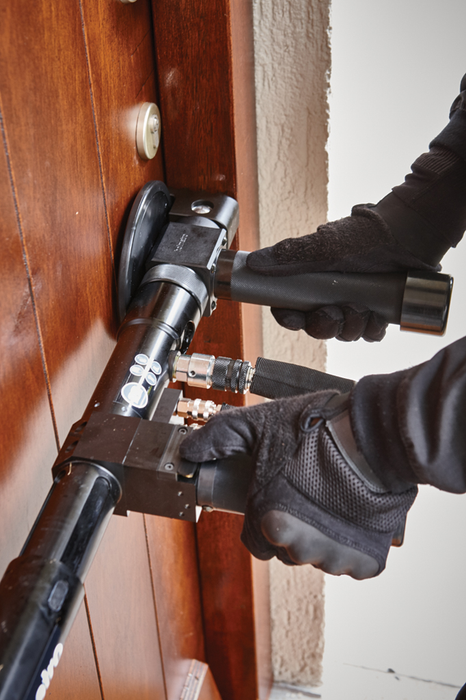

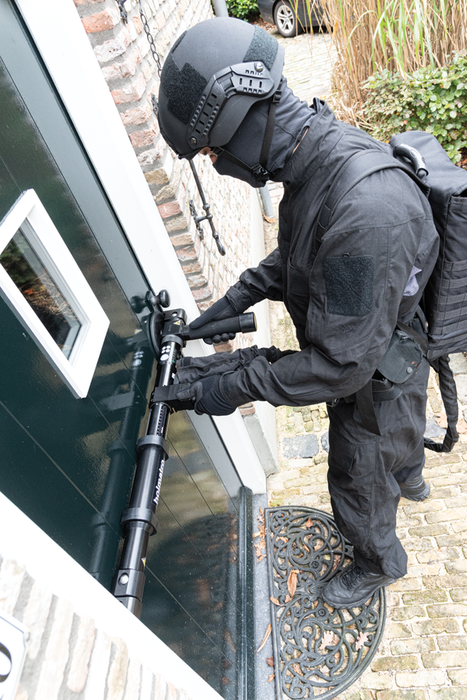

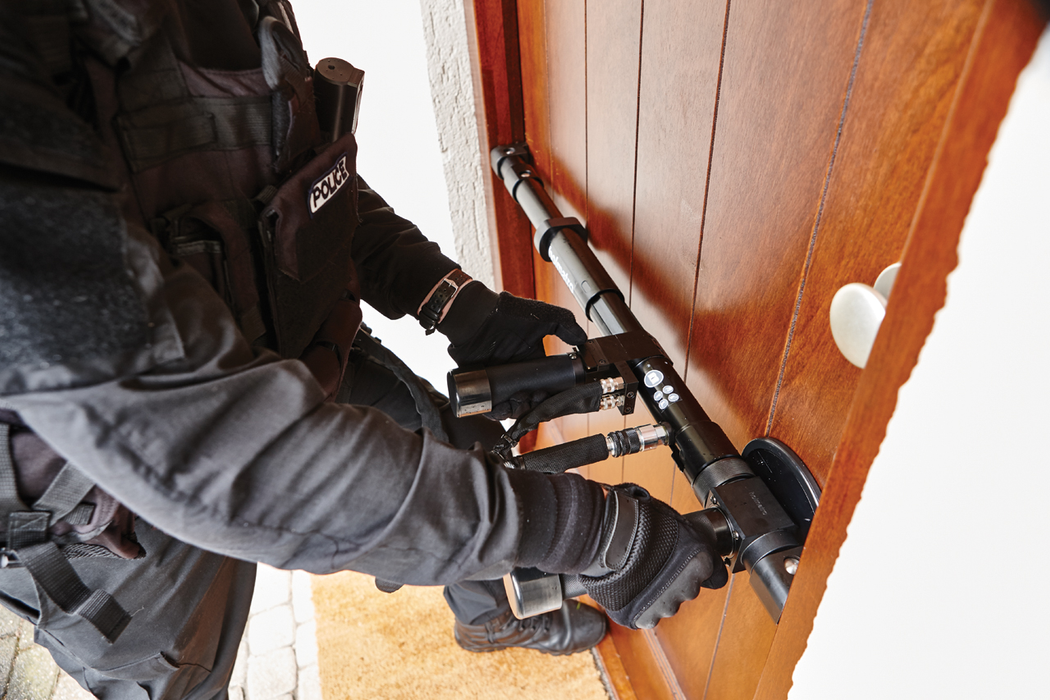

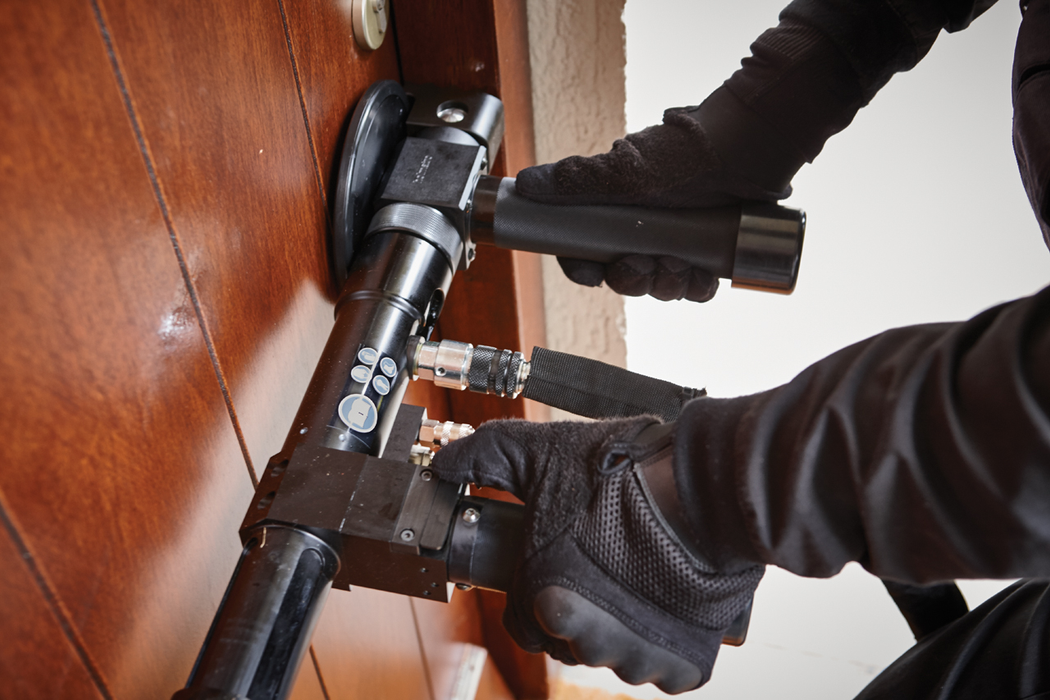

• Push button on door opener for clamping it into door frame: Quick, quiet and easy installation

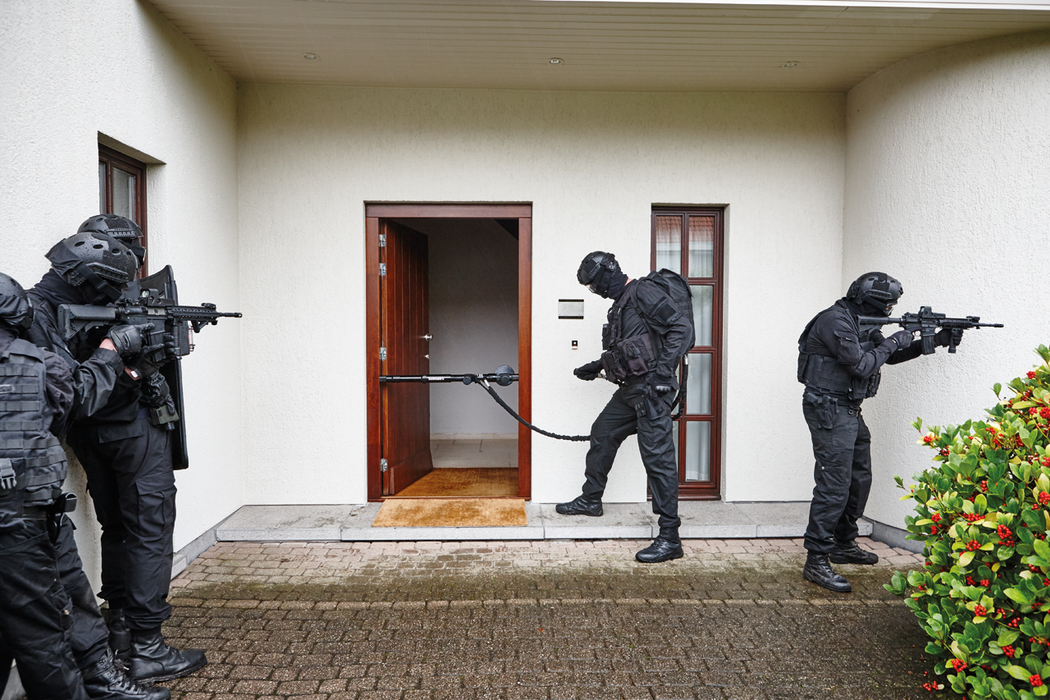

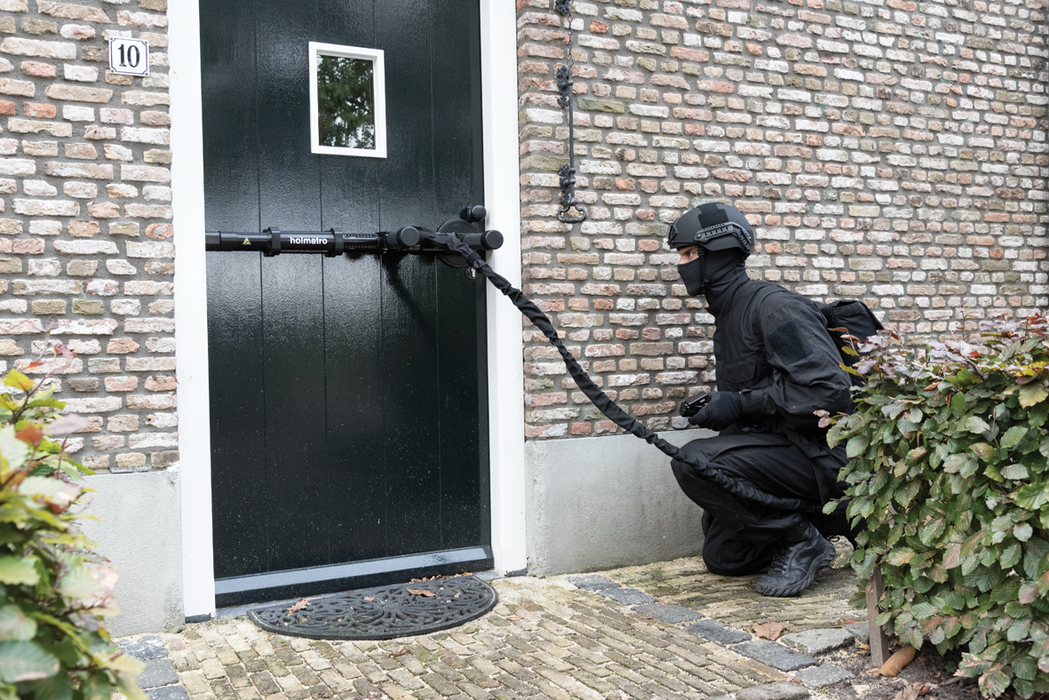

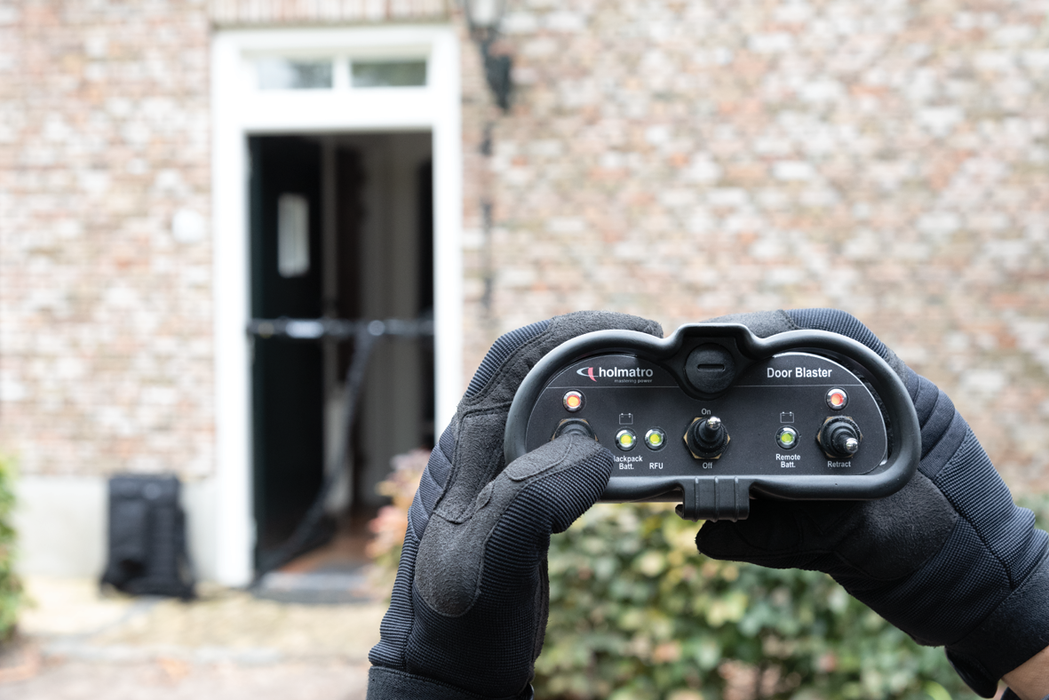

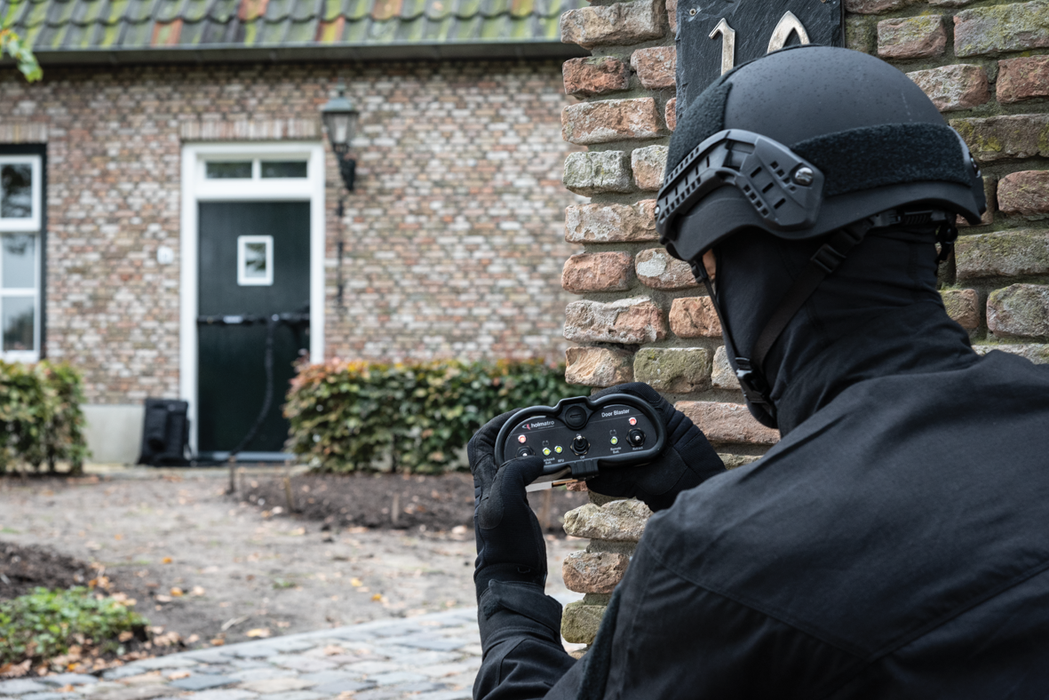

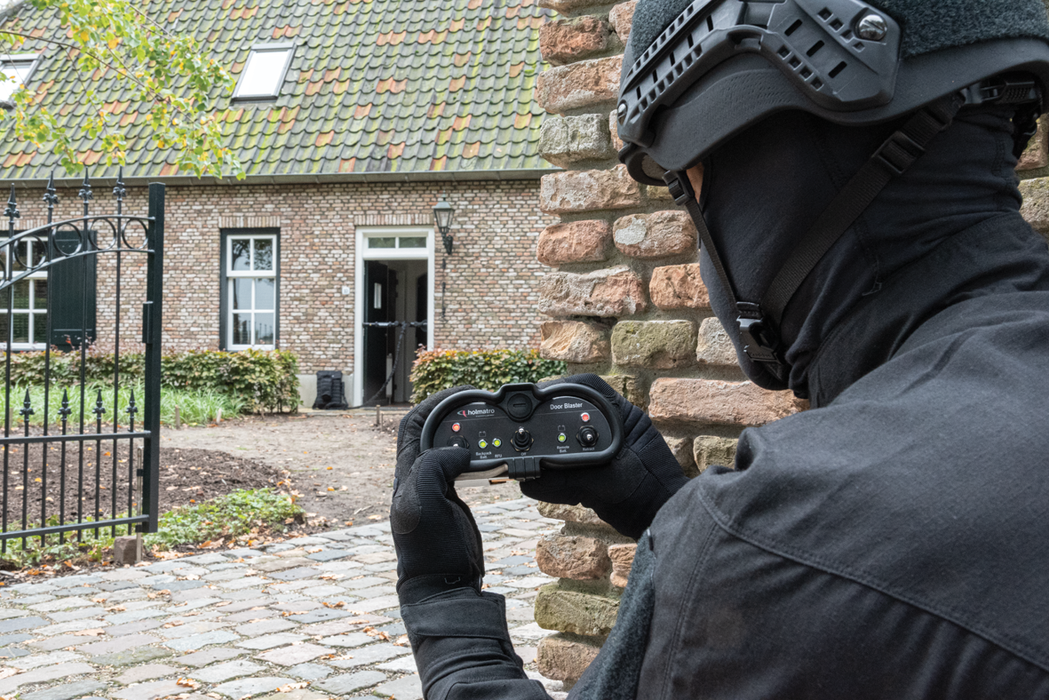

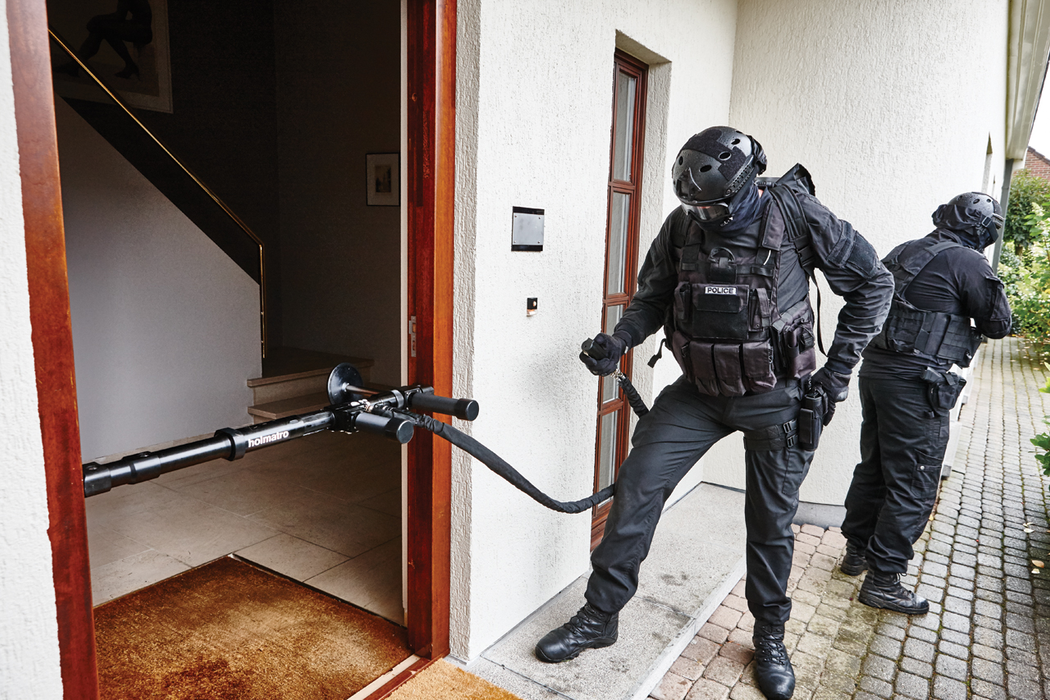

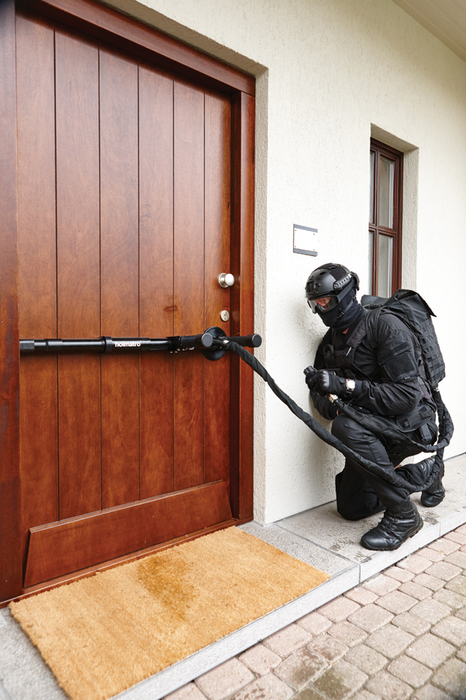

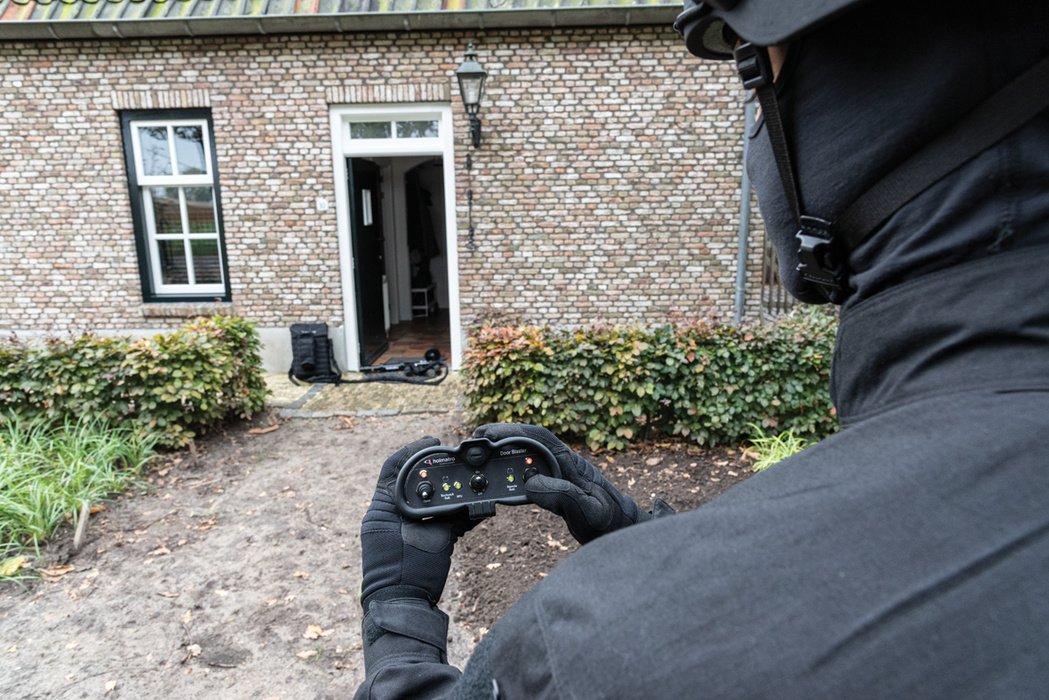

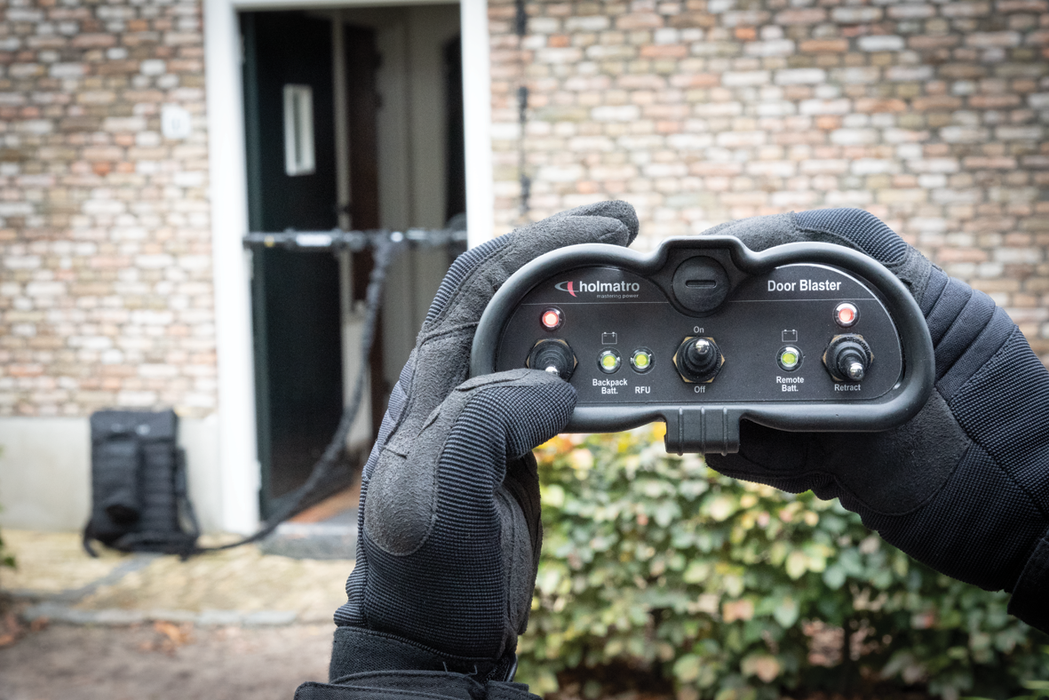

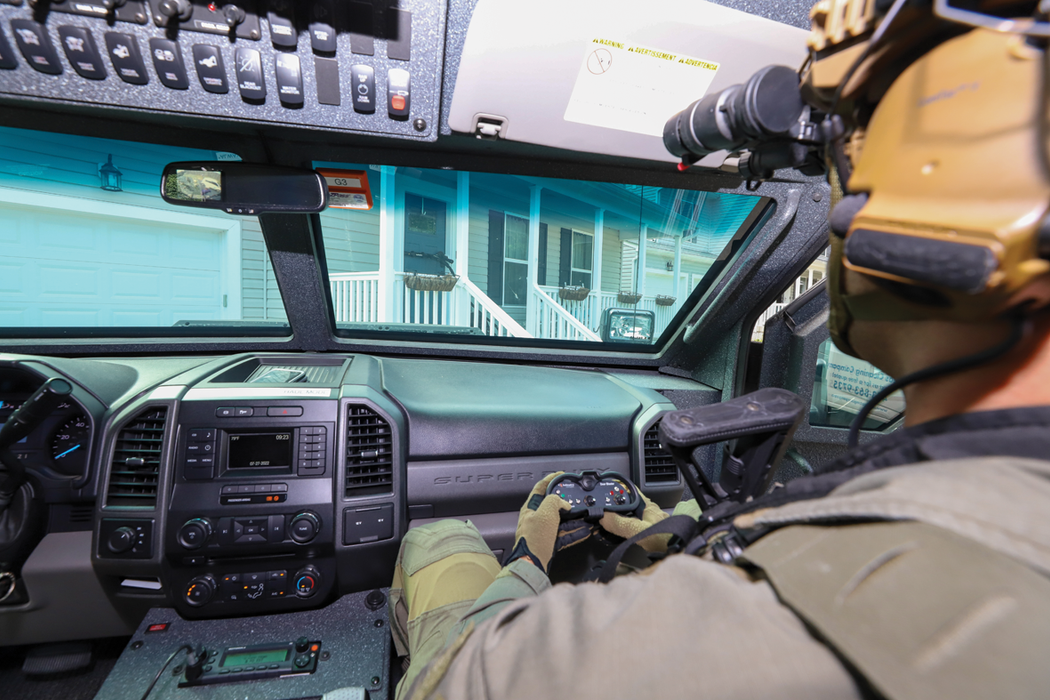

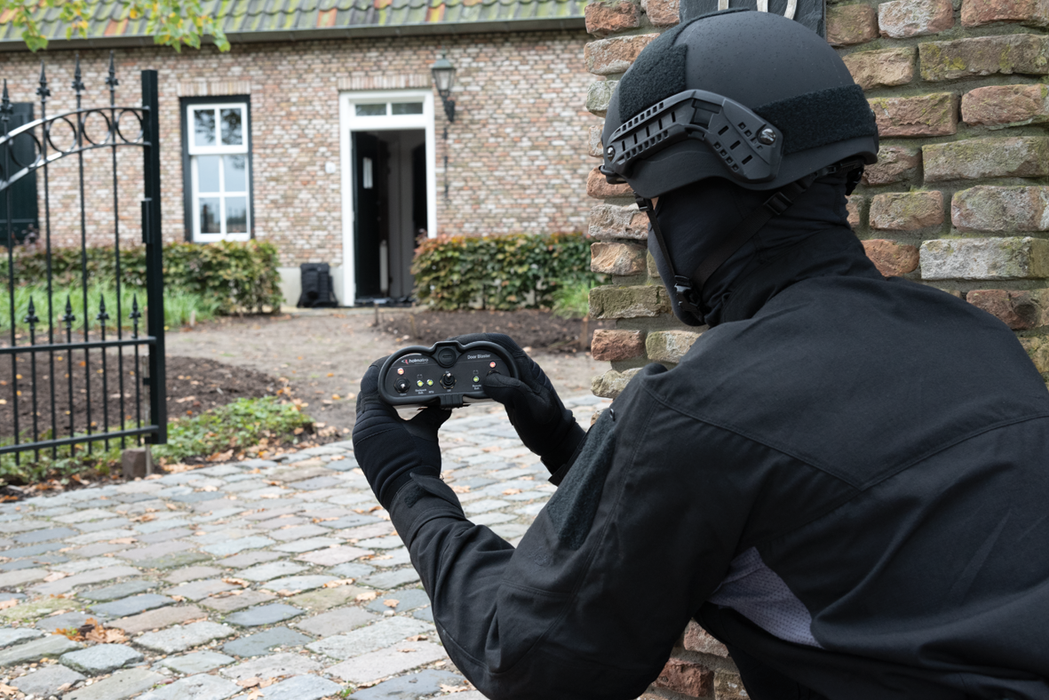

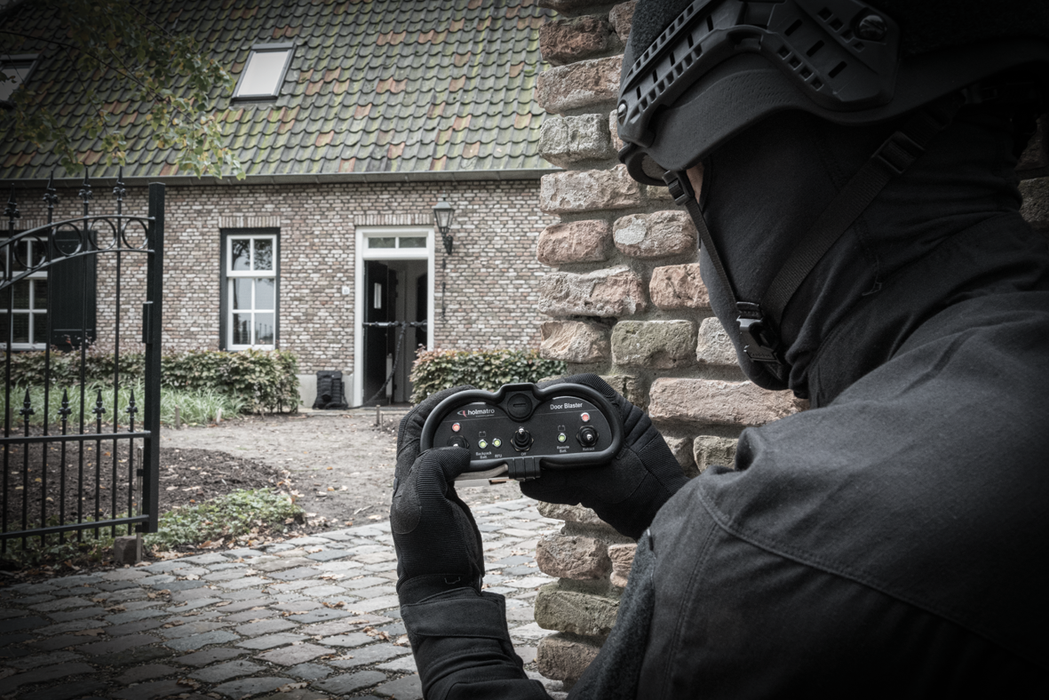

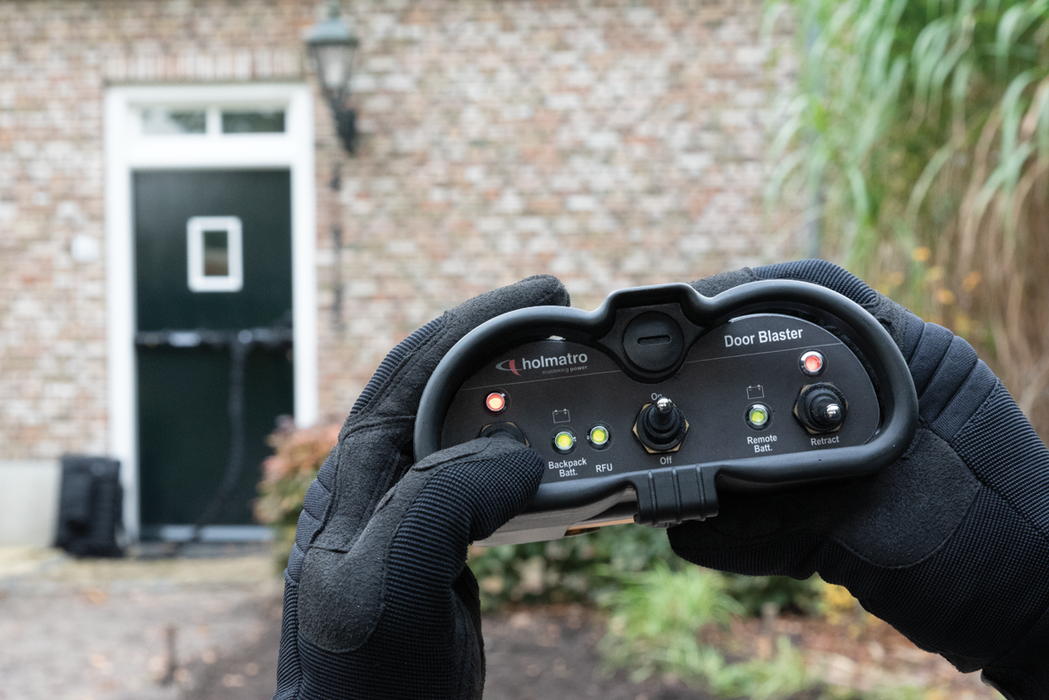

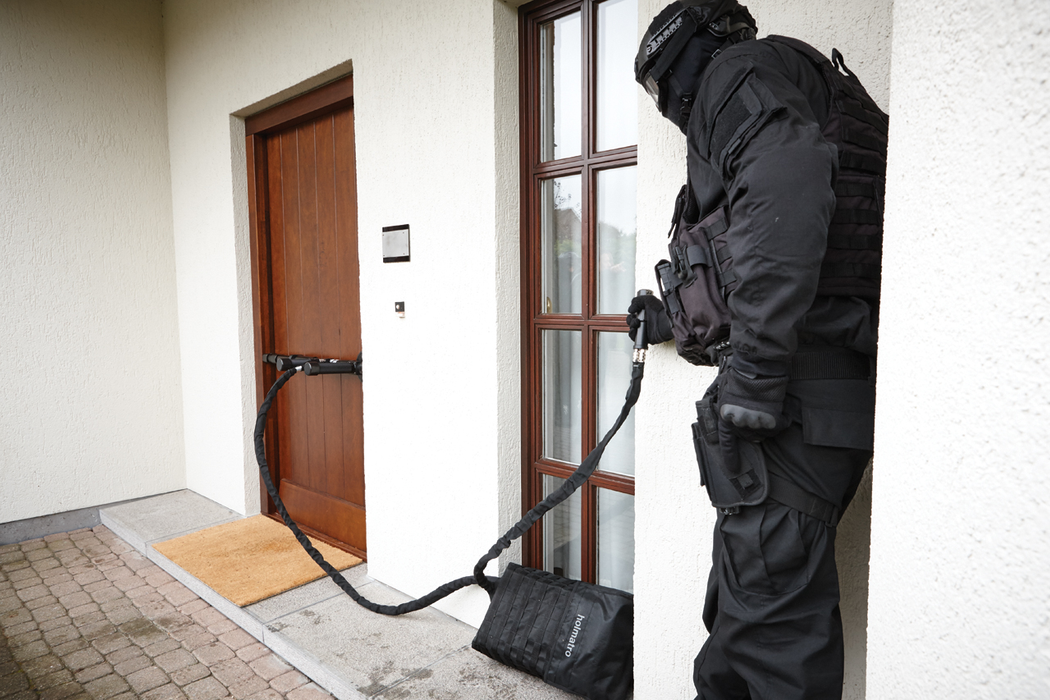

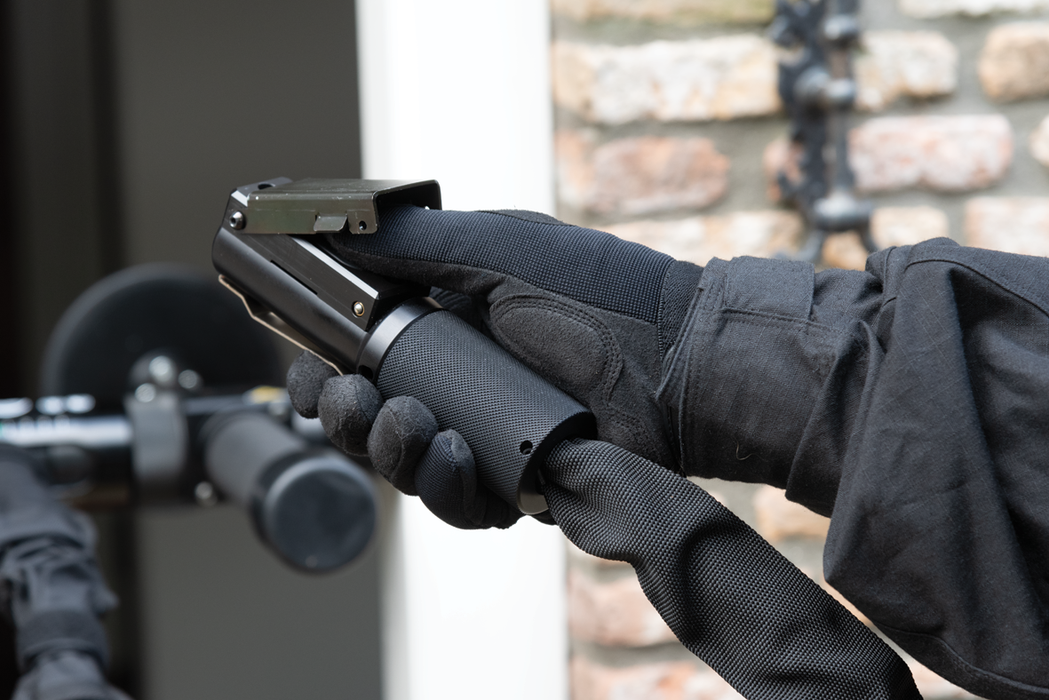

• Remote operation: Choice between using mounted control on 2 m. / 79 in. hose (part of Door Blaster Pack) or the separate Wireless Control Set (radio range: 100 m. / 328 ft. clear line of sight); To activate door opener from a distance; To quickly release door opener from a distance; Enhances operator safety
• Repetitive use possible: No interruption of your operation
• Standard supplied with: Round pushing plate DBP 12, Rectangular pushing plate DBP 14, Extension piece DBE 01, Extension piece DBE 02, Extension piece DBE 03, Grip head DBH 21, set of 2, Grip head DBH 23, set of 2, Grip head DBH 24, set of 2, Carrying / storage bag DBC 01
