FOR LAW ENFORCEMENT, FIRE, EMS, AND MILITARY ONLY.

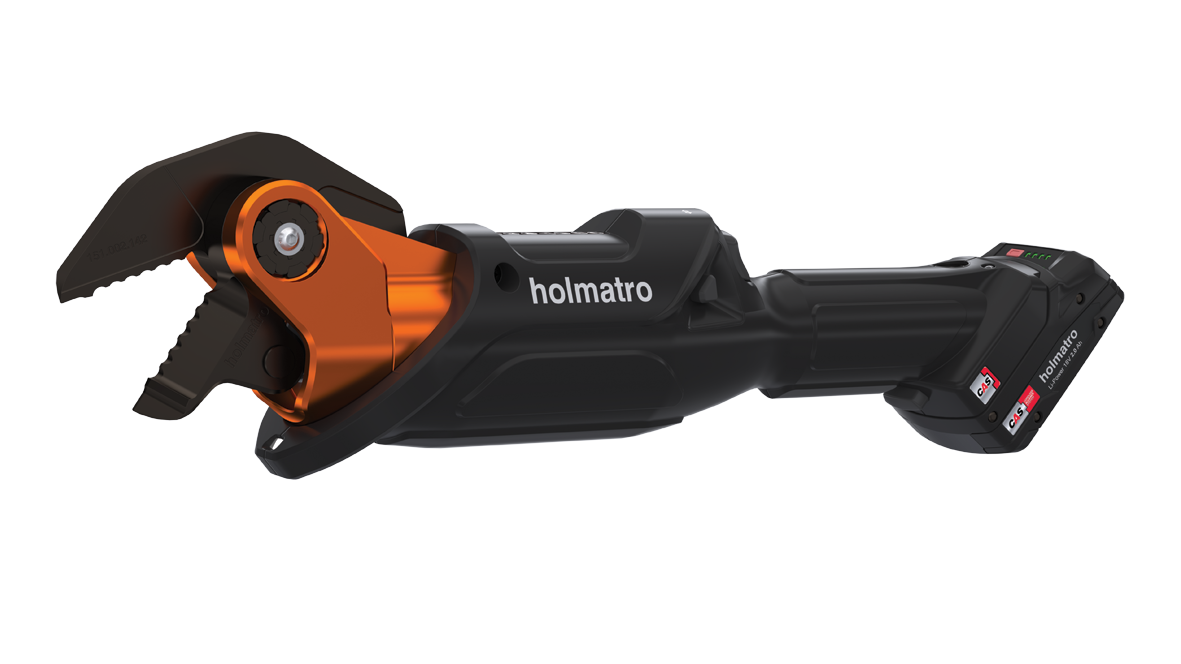

CCU10 - Mini Cutter

Article Number: 151.001.500

Model: CCU10

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Battery included: yes

Performance:

• Max. cutting opening: 59 mm (2.3 in)
• Theoretical cutting force: 49.458 lbf (220 / 22.4 kN/t)
• Protection rate: IP54
• Sound emission @ 1m/3.25ft: 74 dB(A)
• Sound emission @ 4m/13ft: 65 dB(A)
• Vibration level: <2.5 m/s²
• Directives: 2006/42/EG, 2014/30/EU

General Specifications:

• Hydraulic oil type: ISO-L HV VG 36
• Cutter jaw: inclined
• Hydraulic safety factor: 2:1
• Endurance test tool: 1000 cycles of biting in material that cannot be cut
• Endurance test dead man's button: 6000 cycles
• EN 13204 compliant: yes
• EN 13204 classification: AC59B-4.9
• EN 13204, cutting capacity: 1D 2D 3C
• NFPA 1960 compliant: yes
• NFPA 1960, cutting capacity: A4 B3 C2 D4 E4
• Cutting performance round bar (S235 acc. to EN 13204): 22 mm (0.9 in)

Dimensions, Weight and Temperature:

• Weight, ready for use (incl. battery): 4.9 kg (10.8 lb)
• Weight (excl. battery): 4.5 kg (9.9 lb)
• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 554 x 154 x 92 mm (21.8 x 6.1 x 3.6 in)

Product Description: The first cordless Mini Cutter: compact, versatile and immediately ready for action. This cordless tool makes any rescue set complete.

Features & Benefits:

• Cordless design: Immediately ready for use; Maximum operational freedom; No more pumps and hoses needed in your rescue set – Saves space and weight on the rescue vehicle; No emissions – For safe indoor use and USAR applications

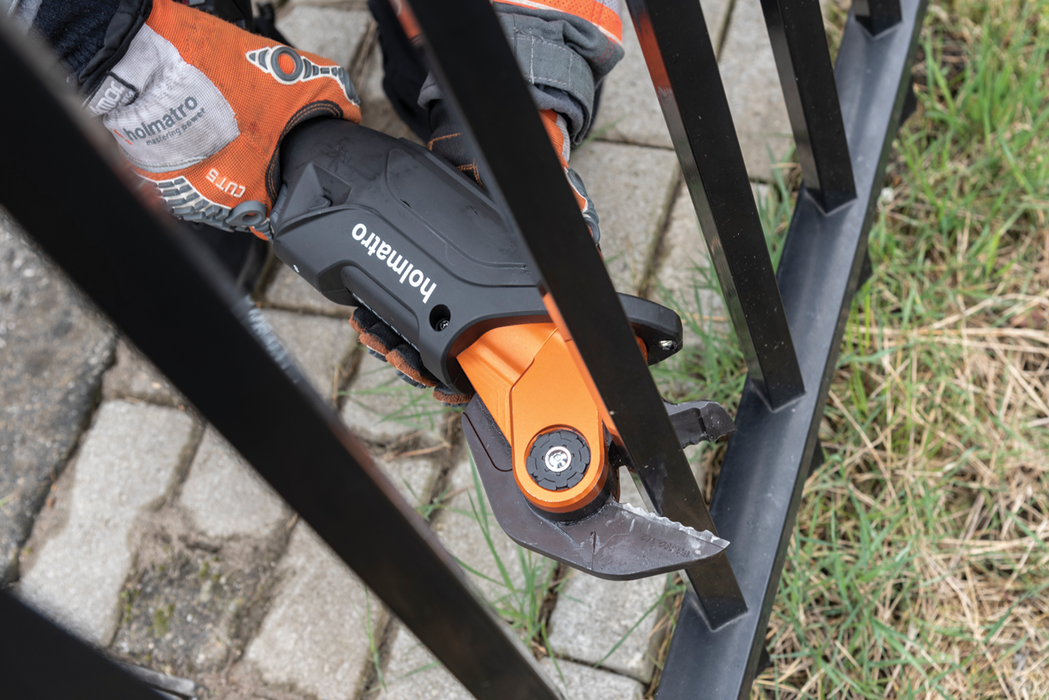

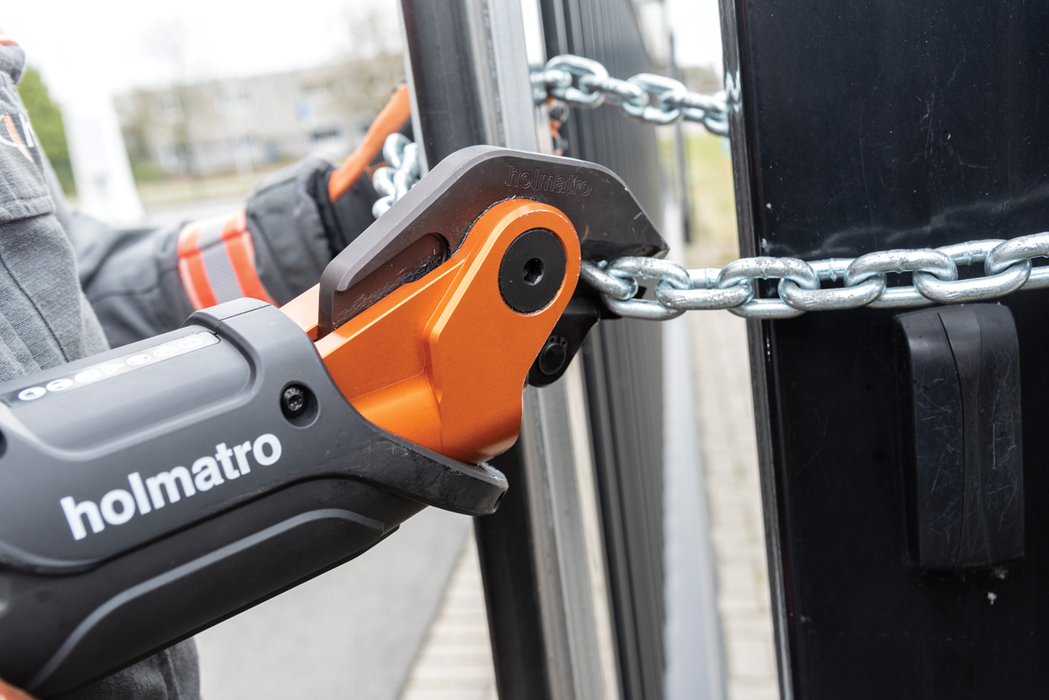

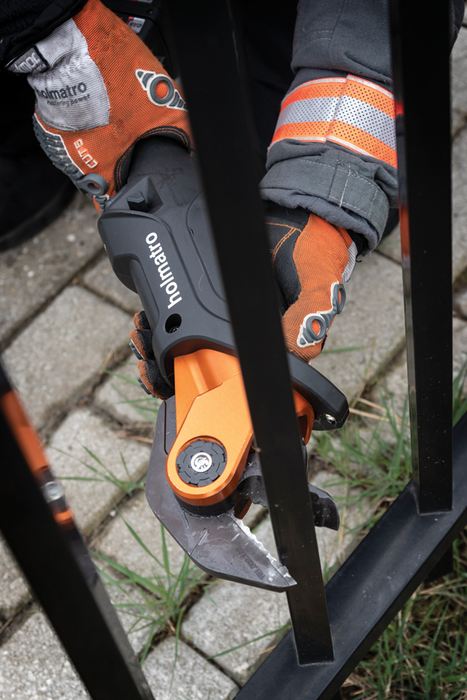

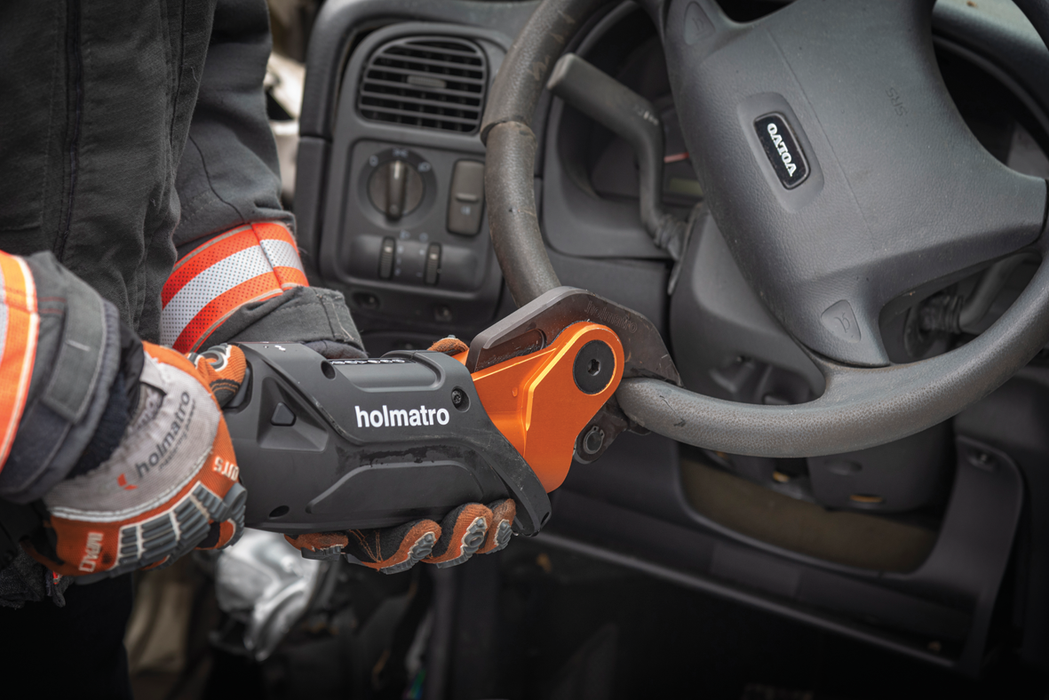

• Compact, lightweight and versatile: Suitable for many applications such as cutting car pedals, head restraints and steering wheels. Also for cutting rebar (USAR), fences, steel bars, wooden bars and chains (grade 43); Easy to pick up and carry; Easy to use in confined spaces
• Smart battery technology: State of charge indication on the battery – For easy checking of your battery status; Efficient drive technology – Up to 70 cuts with one 2Ah battery; Inclined battery position – For easy switching of batteries; Part of the Cordless Alliance System (CAS) – Battery compatible with other tools that use this platform
• Optimal tool control: Start-stop mode – Push the control button to activate the tool. Release the button and the tool stops, which saves valuable battery time. Restart the tool by simply pushing the control button.; Variable speed control – Lightly push the control button for low speed. Push the button further down and the speed increases.; Control slide – To switch between opening and closing the tool

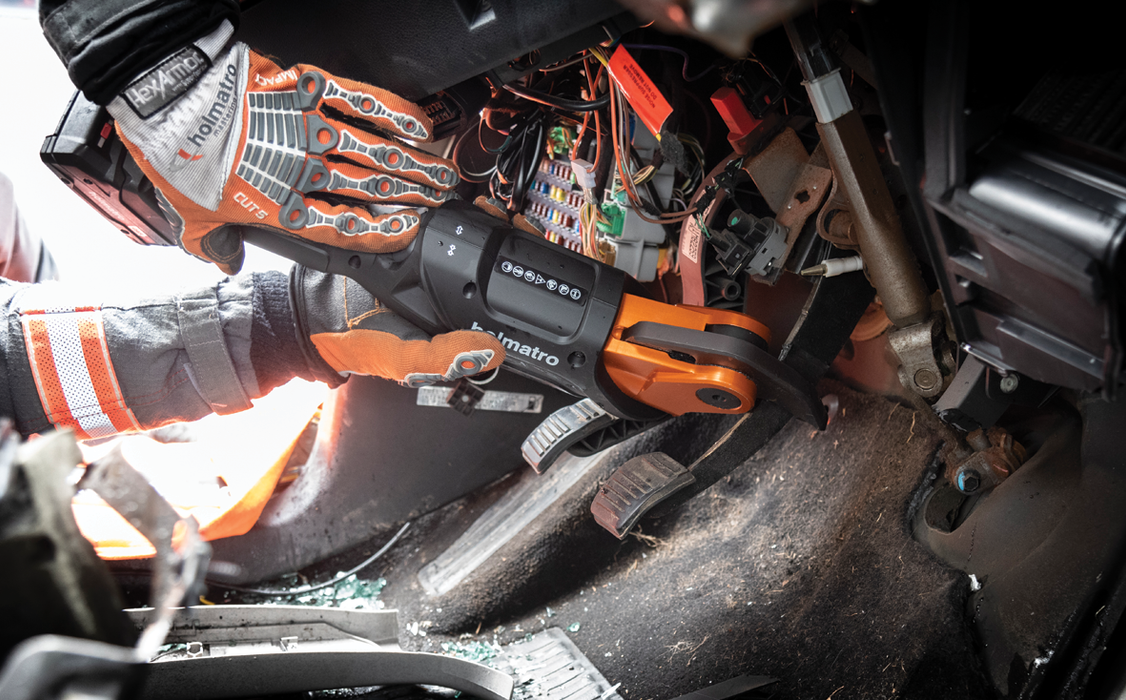

• Unique inclined cutter jaw: More freedom in positioning the tool; For easy access to car pedals
• Grip teeth on both blades: For extra bite when cutting; To prevent wider materials from being pushed out of the blades
• Integrated LED lighting: Ensures a well-lit working space; Powered by the main battery – LED-light automatically switches on and off with the tool
• Ergonomic design: Easy one-handed positioning; Easy operation, also with gloves on; For both left- and right-handed operators
• Standard supplied with: i-Bolt Technology; Integrated LED lighting; Two 18V 2Ah batteries CBPA182
