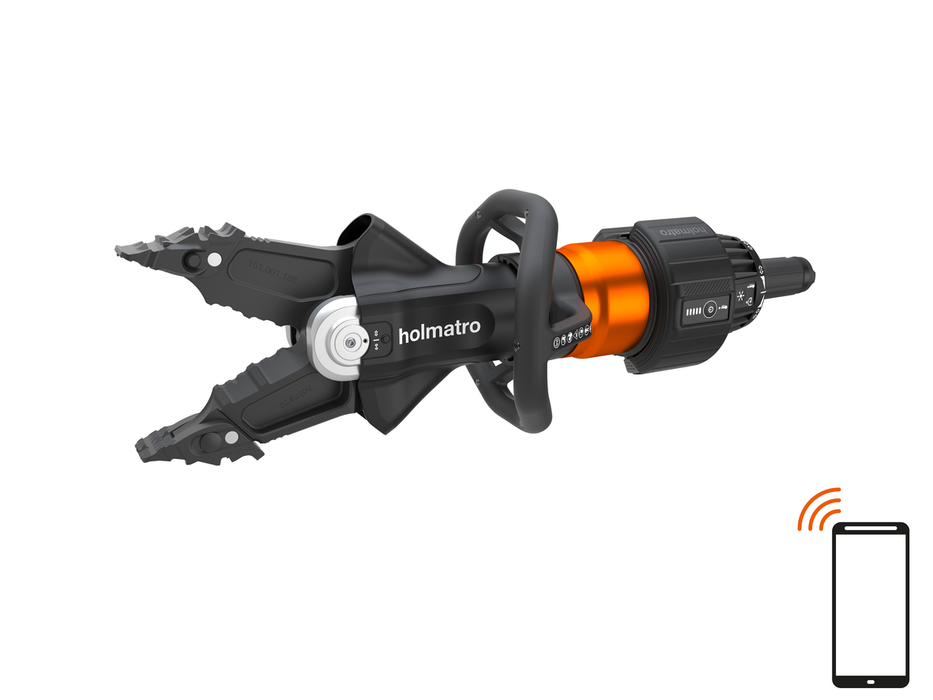

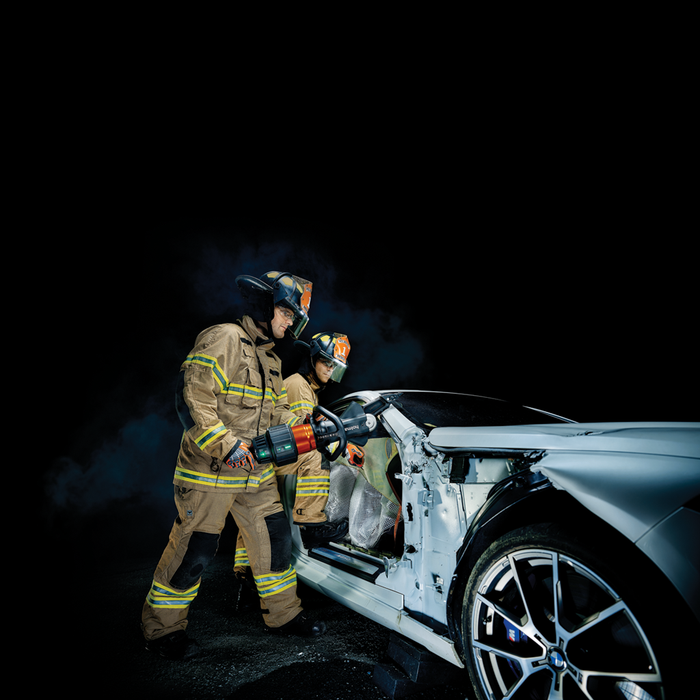

PCT50 - Cordless Combi Tool

Article Number: 159.000.225

Model: PCT50

Brand: Holmatro

Basic Specifications:

• Max. working pressure: 10.443 psi (720 / 72 bar/Mpa)
• Battery included: no
• Connectivity, mobile app: Bluetooth

Performance:

• Spreading distance: 380 mm (15 in)
• Max. cutting opening: 320 mm (12.6 in)
• Pulling distance: 254 mm (10 in)
• Max. spreading force: 418.145 lbf (1860 / 189.7 kN/t)
• Min. spreading force (EN 13204): 9.667 lbf (43 / 4.4 kN/t)
• Theoretical cutting force: 150.622 lbf (670 / 68.3 kN/t)
• Max. squeezing force: 19.558 lbf (87 / 8.9 kN/t)
• Min. squeezing force (EN 13204 2025 Ed.): 73.9 kN (7.5 t, 16.613 lbf, 73.9 / 7.5 kN/t)
• Max. pulling force: 23.380 lbf (104 / 10.6 kN/t)
• Protection rate: IP57
• Sound emission @ 1m/3.25ft: 73 dB(A)
• Sound emission @ 4m/13ft: 64 dB(A)
• Vibration level: <2.5 m/s²
• Directives: 2006/42/EC, 2014/30/EU, 2014/53/EU

General Specifications:

• Hydraulic oil type: ISO-L HV VG 36
• Hydraulic safety factor: 2:1
• Endurance test tool: 1000 cycles of spreading and pulling while the tool is loaded and 1000 cycles of biting in material that cannot be cut
• Endurance test dead man's handle: 6000 cycles
• EN 13204 compliant: yes
• EN 13204 classification: CK43/380J-20.5
• EN 13204 classification 2025 Ed.: F-CT3-43/380-J
• EN 13204, cutting capacity: 1J 2J 3K 4K 5K
• NFPA 1960 compliant: yes
• NFPA 1960, cutting capacity: A7 B8 C8 D8 E8 F3
• NFPA 1960, HPF: 104 kN (10.6 t, 23.380 lbf, 104 / 10.6 kN/t)
• NFPA 1960, LPF: 79.7 kN (8.1 t, 17.917 lbf, 79.7 / 8.1 kN/t)
• NFPA 1960, HSF: 42.5 kN (4.3 t, 9.554 lbf, 42.5 / 4.3 kN/t)
• NFPA 1960, LSF: 32.9 kN (3.4 t, 7.396 lbf, 32.9 / 3.4 kN/t)
• Cutting performance round bar (S235 acc. to EN 13204): 36 mm (1.4 in)

Dimensions, Weight and Temperature:

• Weight, ready for use (incl. battery): 20.5 kg (45.2 lb)
• Weight (excl. battery): 18.9 kg (41.7 lb)
• Temperature range: -20 +55 °C (-4 +131 °F)
• Dimensions (AxBxC): 898 x 268 x 273 mm (35.4 x 10.6 x 10.7 in)

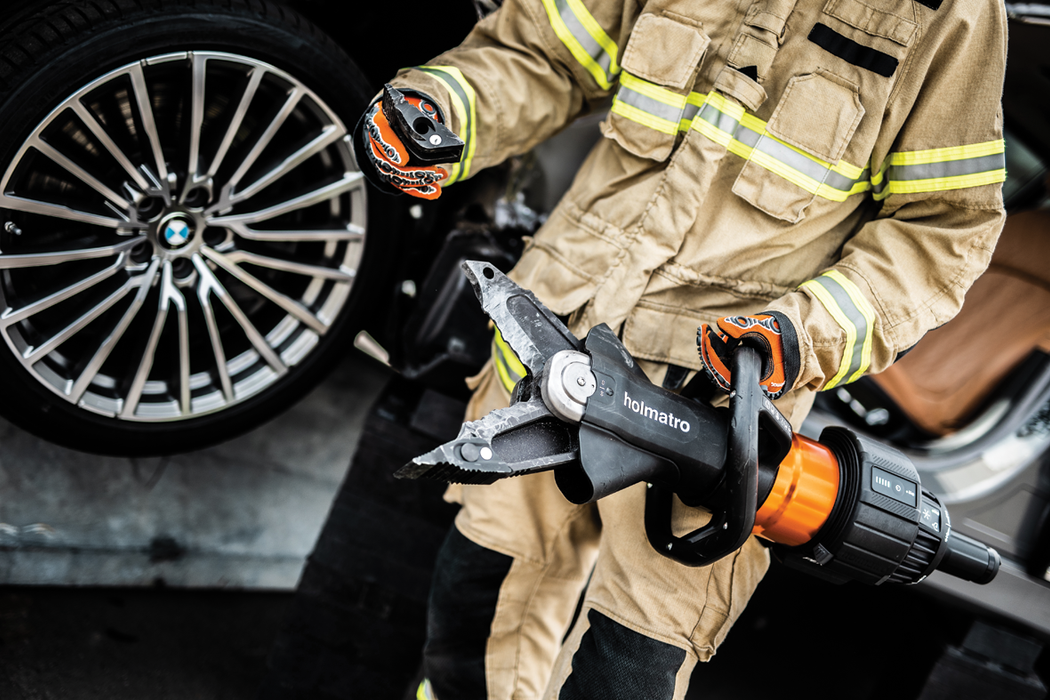

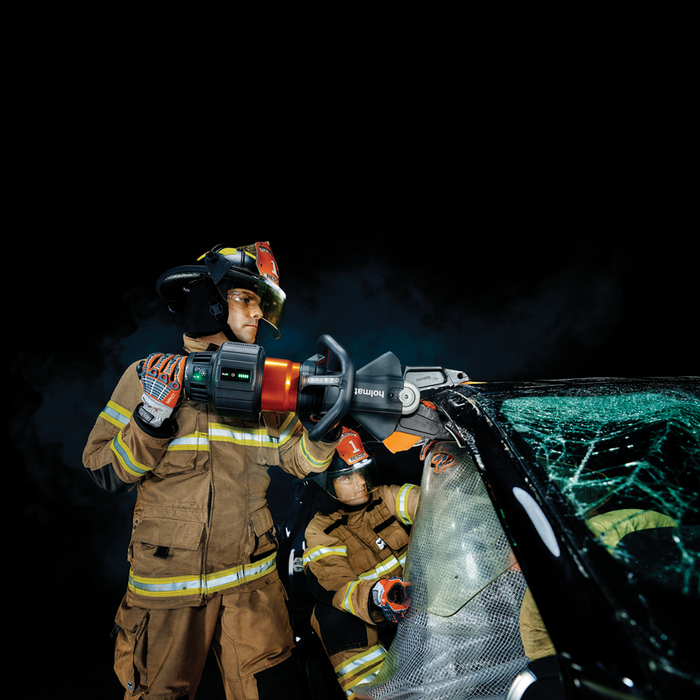

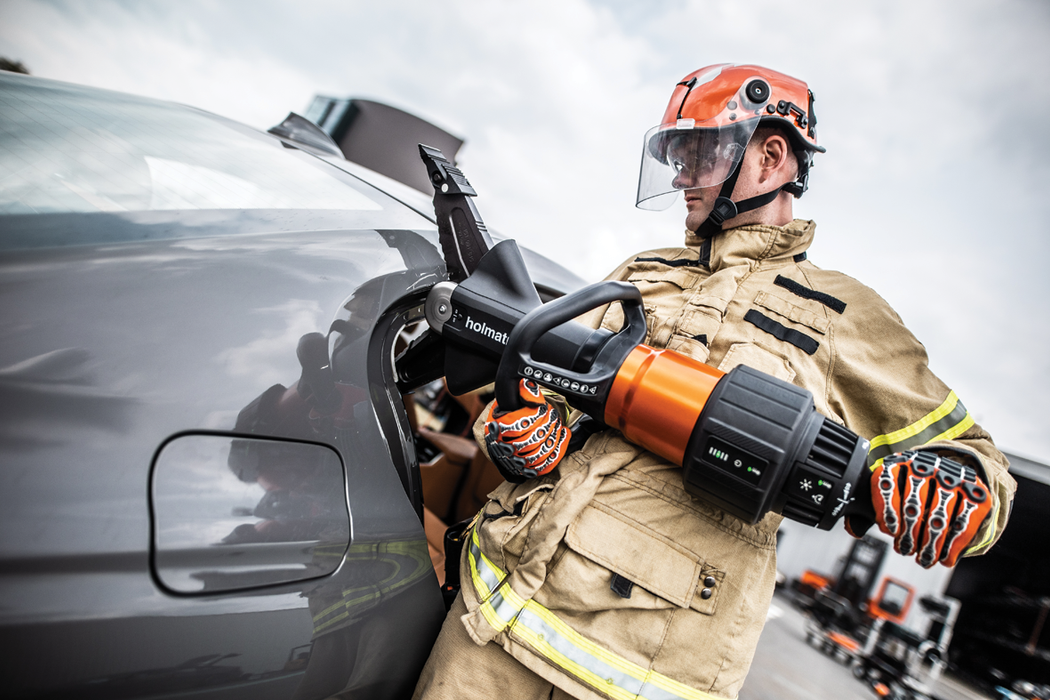

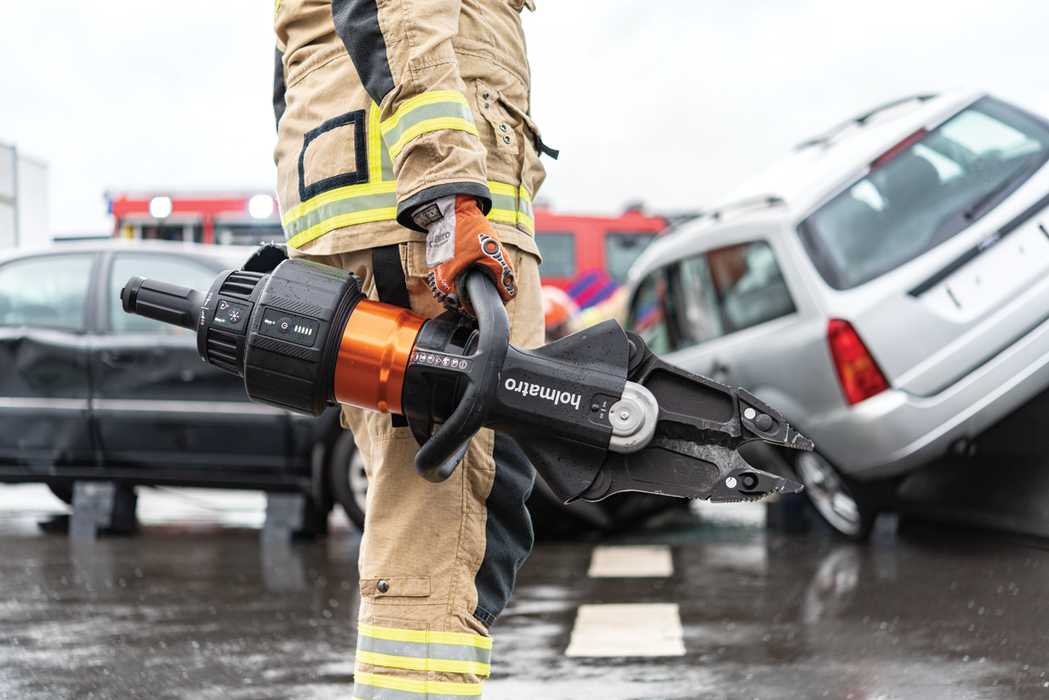

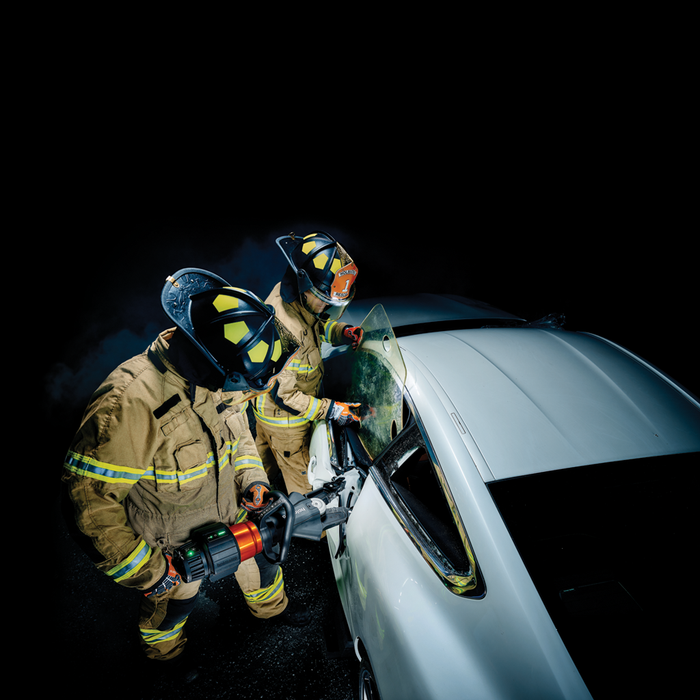

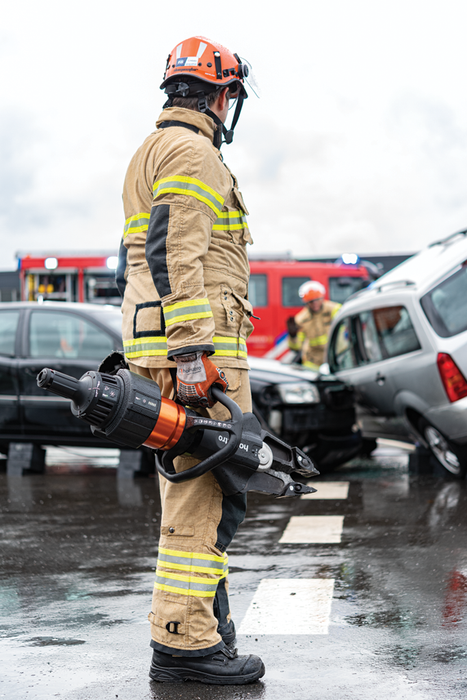

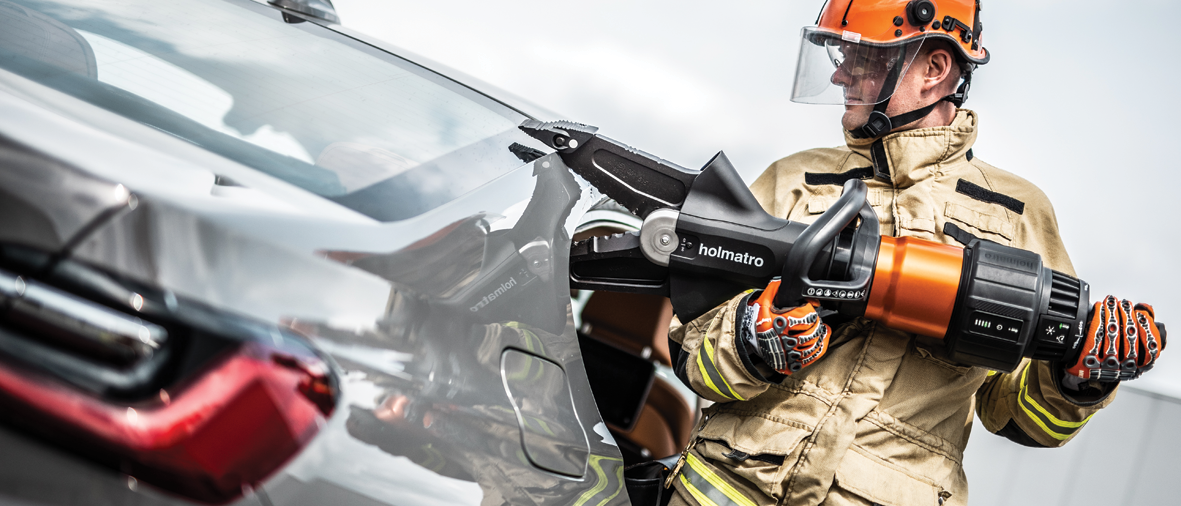

Product Description: Cordless Combi Tool, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.

Features & Benefits:

• Unparalleled speed for faster rescue operations: Fastest combi tool on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load; Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
• Ultimate speed control for more controlled tool handling: Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
• Guaranteed maximum power during a tool’s entire lifespan: Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
• Battery management made easy: Charge batteries directly on the tools with the On-Tool Charging System; Priority charging for on-tool batteries over batteries on a separate charger; Charge up to six batteries automatically – Connect up to three chargers to one single outlet; Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
• Superb ergonomics for effortless handling: Easy tool operation on all sides of a vehicle – Inline control handle with 360° access; Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
• Continue your mission under all conditions: Flawless performance under water, at high and low outdoor temperatures and in rain and snow; Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level; Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
• Realtime tool insights to adapt and change tactics: Connect every tool to your tablet or phone with Bluetooth®; Easy to use and intuitive MyHolmatro app; Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
• Automatically keep your tools in perfect condition: Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
• Effortless tool maintenance: Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
• No material is pushed out during cutting: Two grip teeth at the inside of each blade prevent material from being pushed out when cutting
• Cut material without crushing it: Maximum cutting performance – Easily remove the tips from the combi tool blades to cut material without crushing it
